39-29-1167

ICC Number:	MOL39-29-1167
Manufacturer:	Molex
Manufacturer Number:	39-29-1167
Datasheet:	Datasheet
ECAD Model:

Description:

Mini-Fit Jr. Header, Dual Row, Right-Angle, with PCB Mounting Flange, 16 Circuits, PA Polyamide Nylon 6/6 94V-0, Tin (Sn) Plating

More >>

Specifications

Attribute	Value
Product Category:	PCB Connectors PCB Headers & Receptacles
Manufacturer:	Molex
Manufacturer Part Number:	Molex 39-29-1167
Gender:	Male
Number of Contacts:	16
Number of Rows:	2
Contact Material:	Brass
Contact Plating:	Tin
Pitch:	4.2 mm
Shroud Type:	Yes
Flammability Rating:	UL 94V-0
Current Rating:	13 A
Voltage Rating:	600 V
Operating Temperature:	-40 to 105 °C
Mounting Angle:	Right Angle
Mounting Type:	Through Hole
PCB Connector Type:	PCB Mount Header
SKU:	MOL39-29-1167

Detailed Description

Introducing the 39-29-1167, a high-performance Mini-Fit Jr. Header designed for seamless PCB integration. This dual-row connector features a right-angle body orientation with a convenient mounting flange, offering 16 circuits for versatile connectivity. Constructed from durable PA Polyamide Nylon 6/6 94V-0 with Tin (Sn) plating, it ensures reliable performance in demanding environments. With a current rating of 13 A and a voltage tolerance of 600 V, this connector is suitable for a wide range of applications. Its brass contacts and through-hole termination method guarantee secure and efficient connectivity. Engineered for durability, it has a wide operating temperature range of -40 to 105 °C and is RoHS compliant. Perfect for wire-to-board applications, this connector is a reliable and efficient solution for your connectivity needs.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 02-06-6102	1.57mm Diameter, Standard .062 Pin and Socket Crimp Terminal, Series 1560, Male, with .76
	Molex 09-50-8081	KK 3.96mm Crimp Terminal Housing, Friction Ramp, 8 Circuits, Natural
	Molex 22-04-1041	Mini-Latch / KK Wire-to-Board Header, Vertical, with Friction Ramp, 4 Circuits, Tin (Sn) Plating, Natural
	Molex 26-61-4020	KK 396 Header, Vertical, Friction Lock, 2 Circuits, Gold (Au) Plating
	Molex 39-00-0184	Mini-Fit Female Crimp Terminal, Selective Gold (Au) over Phosphor Bronze, 28-22 AWG, Loose-piece in bag
	Molex 39-28-9208	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 20 Circuits, with Snap-in Plastic Peg PCB Lock, Gold, Natural

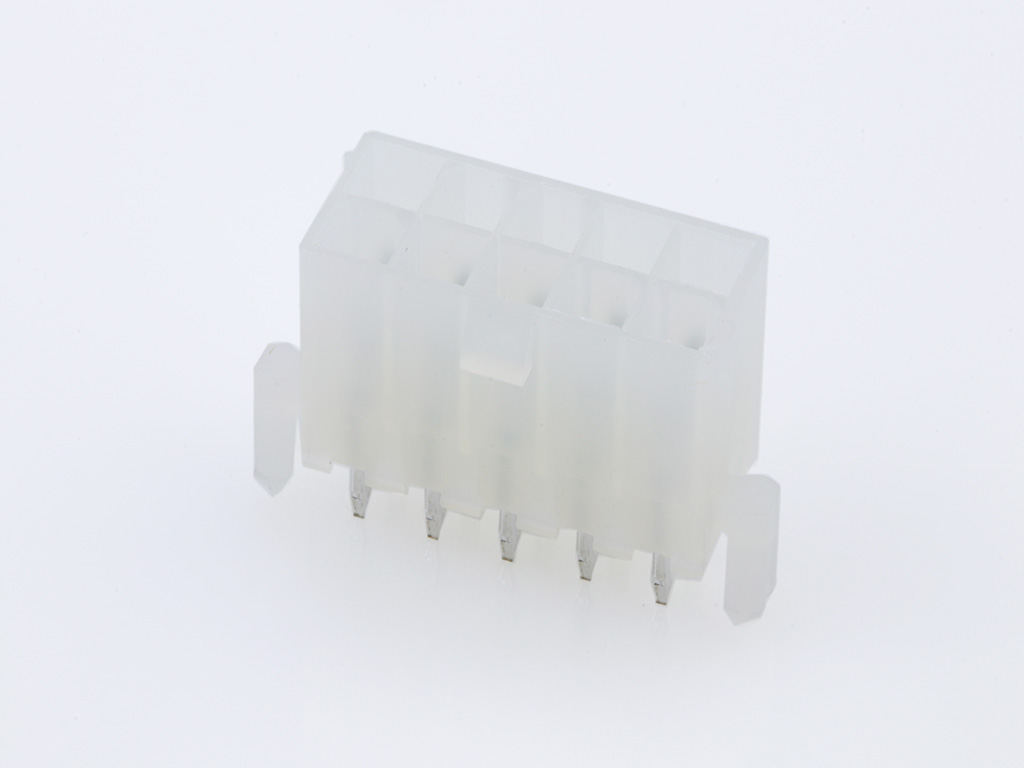

	Molex 39-29-9103	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 10 Circuits, with Snap-in Plastic Peg PCB Lock, Tin, Natural
	Molex 87758-4016	2.00mm Pitch Milli-Grid Header, Vertical, Through Hole, 40 Circuits, 0.38µm Gold (Au) Plating, Mating Pin Length 4.00mm, Tail Length 2.60mm, Lead-Free

Product Change Notice

Effective Date	Description of Change	Download
09/18/2026	517777 - Equipment/Production Transfer or Rearrangement. PSBU is transferring all Hetero molding (molds & presses) from Lincoln 3104 to Nogales 3105 over the next 30 months. There are approximately 450 molds and 18 presses to transfer. To facilitate this, a series of PCNs will be issued covering group of molds (approx 10 to 25 molds per group) which use the same resin.	Download
01/17/2023	512182 - Capacity change or tool replacement. Parts listed on this PCN can be assembled and shipped to all customers from Nogales or Shanghai.	Download
12/31/2022	512847 - Change Supplier. This notification is to inform you about addition of new Supplier or Sub Supplier impacting the part(s) as per attached list. No changes will be made to product as part of this change	Download
03/01/2021	509366 - Manufacturing Process Change. molex India is introducing new plating lines at the new connector facility with lates technology in line with other Molex entities and reduce the process related challenges in current lines. to facilitate the plating technology change we are changing the gold and silver chemistry. (no change to form, fit or function)	Download
07/01/2017	502703 - Equipment Transfer, Production Transfer or Rearrangement.	Download
