| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 09-50-8081 |
| Color: | Natural |
| Series: | 41695 - KK 396 |
| Connector Type: | KK 396 |
| Gender: | Receptacle |
| Housing Material: | Polyester |
| Number of Contacts: | 8 |
| Number of Rows: | 1 |
| Pitch: | 3.96 mm |
| Material: | Polyester |
| Keying: | No |
| Circuit Application: | Power |
| Connector System: | Wire to Board |
| Glow Wire Capable: | No |
| Lock to Mating Part: | Yes |
| Breakaway: | No |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0009508081 41695-N-B8 |
| SKU: | MOL09-50-8081 |
09-50-8081
Specifications
Detailed Description
Introducing the 09-50-8081, a high-quality KK 3.96mm Crimp Terminal Housing with Friction Ramp. This 8-circuit receptacle, made of durable polyester, is essential for power applications in wire-to-board connector systems. Featuring a natural color, it boasts RoHS compliance and a secure lock to the mating part. With a 3.96mm pitch and no keying, it offers versatility in various setups. Its robust construction ensures reliable performance, making it a must-have for your connectivity needs. Upgrade to the 09-50-8081 for efficient and dependable power transmission.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|

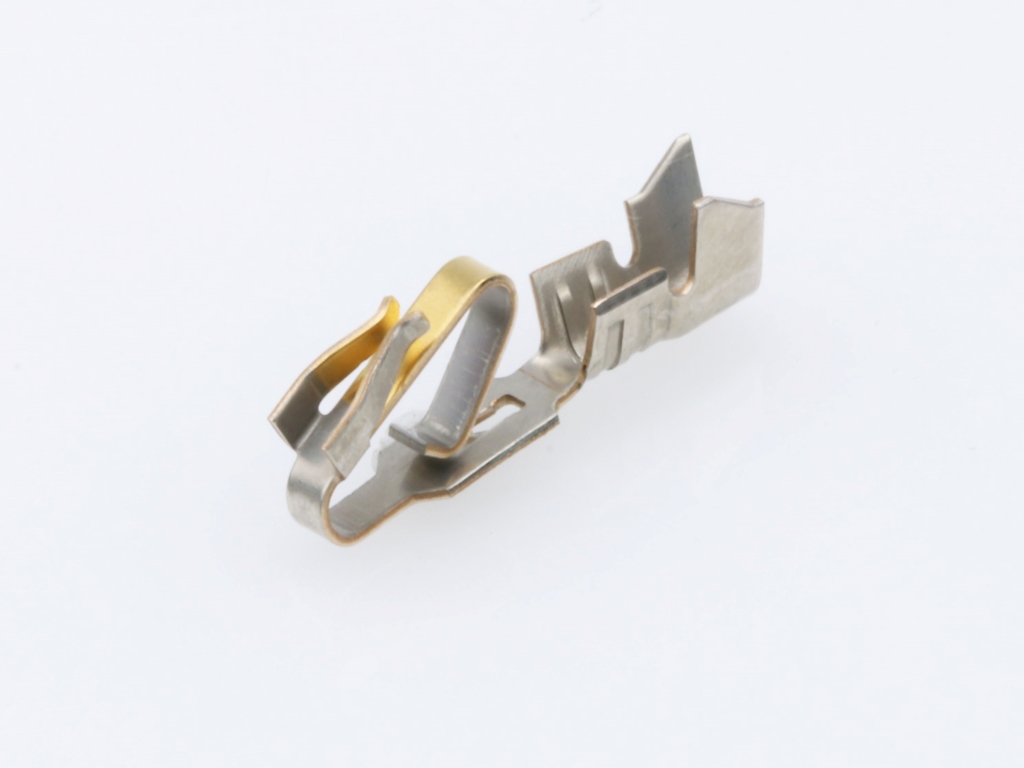

 | Molex 08-58-0189 | KK Trifurcon Crimp Terminal 6438, 18-20 AWG, Bag, Phosphor Bronze Gold(Au) |  |
