39-28-1183

ICC Number:	MOL39-28-1183
Manufacturer:	Molex
Manufacturer Number:	39-28-1183
Datasheet:	Datasheet
ECAD Model:

Description:

Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 18 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural

More >>

Specifications

Attribute	Value
Product Category:	PC Board Pin & Receptacle Connectors PCB Pin Headers
Manufacturer:	Molex
Manufacturer Part Number:	Molex 39-28-1183
Gender:	Male
Number of Contacts:	18
Number of Rows:	2
Contact Material:	Brass
Contact Plating:	Tin
Pitch:	4.2 mm
Shrouded:	Yes
Flammability Rating:	UL 94V-2
Current Rating:	9 A
Voltage Rating:	600 V
Operating Temperature:	-40 to 105 °C
Mounting Angle:	Straight
Mounting Type:	Through Hole
PCB Connector Type:	PCB Mount Header
SKU:	MOL39-28-1183

Detailed Description

Introducing the Molex Mini-Fit Jr. Vertical Header, a reliable and versatile connectivity solution for your PCB projects. This header features a 4.20mm pitch with dual rows, offering 18 circuits for ample connectivity. Designed without a snap-in plastic peg PCB lock, it allows for easy installation. With a tin-plated brass contact material and a straight body orientation, this header ensures durability and secure connections. Rated for 9A and 600V, it is suitable for a wide range of applications. The nylon housing and operating temperature range of -40 to 105°C guarantee robust performance in harsh environments. RoHS compliant and lead-free process capable, this header meets stringent environmental standards. Whether you're a DIY enthusiast or a professional engineer, the Molex Mini-Fit Jr. Vertical Header is the perfect choice for your project.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 39-00-0047	Mini-Fit Female Crimp Terminal, Tin (Sn) over Copper (Cu) Plated Brass, 28-22 AWG, Bag
	Molex 39-28-1023	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 2 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural
	Molex 39-28-1043	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 4 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural
	Molex 39-28-1063	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 6 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural
	Molex 39-28-1083	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 8 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural
	Molex 39-28-1103	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 10 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural
	Molex 39-28-1123	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 12 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural
	Molex 39-28-1163	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 16 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural
	Molex 39-28-1203	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 20 Circuits, without Snap-in Plastic Peg PCB Lock, Tin, Natural
	Molex 39-29-0043	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 4 Circuits, without Snap-in Plastic Peg PCB Lock, Gold, Natural

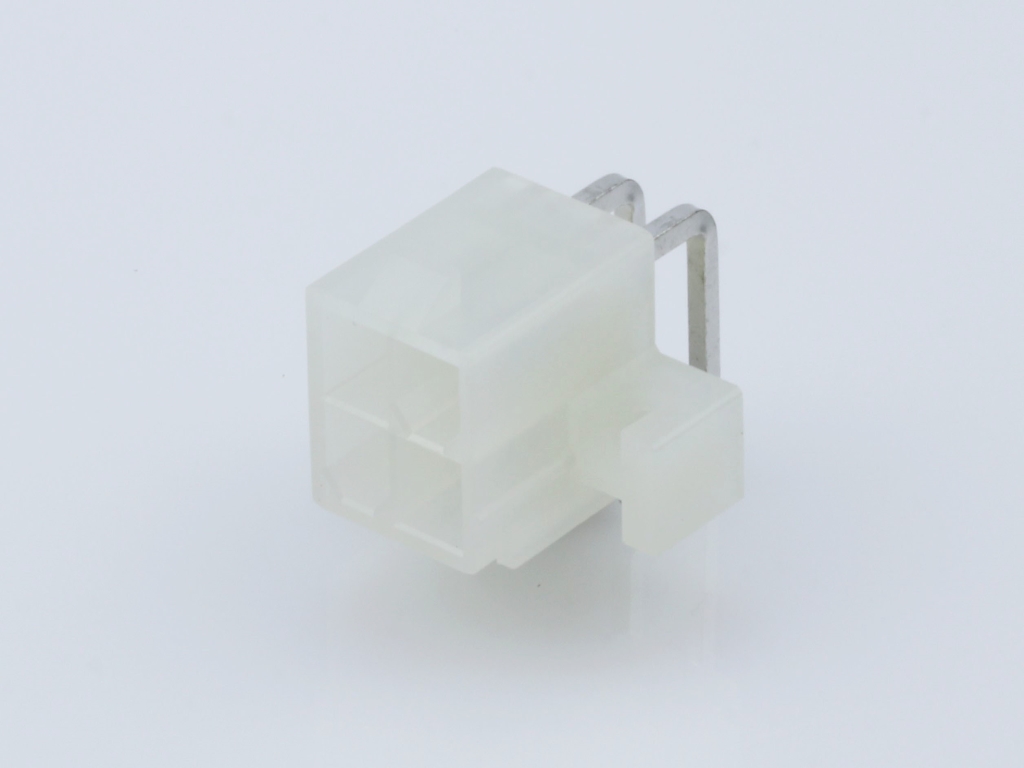

	Molex 39-29-1048	Mini-Fit Jr. Header, Dual Row, Right-Angle, with PCB Mounting Flange, 4 Circuits, PA Polyamide Nylon 6/6 94V-2, Tin (Sn) Plating
	Molex 43045-0413	Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 4 Circuits, with PCB Polarizing Peg, 0.38µm Gold Plating, Glow-Wire Capable, Black
	Molex 43045-0420	Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 4 Circuits, with Solder Tab, 0.76µm Gold Plating, Glow-Wire Capable, Black
	Molex 43045-0612	Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 6 Circuits, with PCB Polarizing Peg, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black
	Molex 43045-0814	Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 8 Circuits, with PCB Polarizing Peg, 0.76µm Gold Plating, Glow-Wire Capable, Black
	Molex 43045-1213	Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 12 Circuits, with PCB Polarizing Peg, 0.38µm Gold Plating, Glow-Wire Capable, Black
	Molex 43650-0227	Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Single Row, 2 Circuits, with PCB Polarizing Peg, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black
	Molex 43650-0327	Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Single Row, 3 Circuits, with PCB Polarizing Peg, 1.52µm Matte Tin Plating, Glow-Wire Capable, Black

Product Change Notice

Effective Date	Description of Change	Download
01/17/2023	512182 - Capacity change or tool replacement. Parts listed on this PCN can be assembled and shipped to all customers from Nogales or Shanghai.	Download
08/31/2022	512388 - Change Supplier. This notification is to inform you about change of supplier impacting the part(s) attached as per list, No changes will be made to product as part of this change.	Download
08/06/2021	510546 - Packaging Method/Quantity Changing. Due to DU discrepancy between MFG Plant and SCH, DU needs to be adapted to MFG Plant. DU change Only.	Download
09/17/2019	507327 - Supplier Change. This letter is to inform you that Molex is adding a new supplier or the supplier is making a change affecting the part(s) identified in this notice. There will be no negative impact to product performance as a result of this change.	Download
12/24/2018	506262 - Capacity Change or Tool Replacement. This letter is to inform you that another set of tooling is being added to meet the current and future demands of this product. There will be no changes in the fit, form or function from the additional tooling when compared to the current tooling.	Download
02/01/2016	GCM 10708360 - Supplier Change. Molex will be changing the pre-plated flat stock, and adding an additional supplier. This change only affects parts made in Lincoln (3104) and Nogales (3105). The current pre-plated flat stock will change from bright tin over copper to reflowed tin over copper plating. In addition, we will also be changing the post plated terminal used in the 5566, 30069, & 43588 vertical headers to the same pre-plated reflowed tin over copper plating. If post plated headers are desired, alternative part numbers are available with matte tin over nickel plating.	Download
