| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 33472-1259 |
| Color: | Gray (Dark), Natural |
| Series: | 33472 - MX150 |
| Connector Type: | MX150 |
| Gender: | Receptacle |
| Number of Contacts: | 12 |
| Number of Rows: | 2 |
| Pitch: | 3.5 mm |
| Material: | Modified Polystyrene Alloy |
| Keying: | Yes |
| Polarization: | C |
| Operating Temperature Range: | -40 - 125 °C |
| Circuit Application: | Power |
| Polarized to Mate: | Yes |
| Connector System: | Wire to Board, Wire to Wire |
| Glow Wire Capable: | No |
| Lock to Mating Part: | Yes |
| Stackable: | No |
| Part Aliases: | 0334721259 |
| SKU: | MOL33472-1259 |
33472-1259
| Heilind Number: | MOL33472-1259 |
| Manufacturer: | Molex |
| Manufacturer Number: | 33472-1259 |
| Datasheet: | Product Specification |
| ECAD Model: | |
Description:
MX150 Sealed Female Connector, Dual Row, 12 Circuits, Polarization C, with Connector Position Assurance, Dark Gray
More >>Specifications
Detailed Description
Introducing the MX150 Sealed Female Connector, a rugged and reliable solution for your power circuit applications. With 12 circuits arranged in a dual row configuration, this connector ensures efficient power delivery. Featuring Polarization C and Connector Position Assurance, it guarantees secure and accurate mating. Crafted from a durable Modified Polystyrene Alloy, it operates flawlessly in temperatures ranging from -40 to 125 °C. Whether for wire-to-wire or wire-to-board connections, this connector system offers versatility and convenience. RoHS compliant and in stock for immediate shipping, the MX150 is the perfect choice for your connectivity needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 15-97-6061 | MINIFIT TPA PLUG HSG V-0 BLK CKT |  |
 | Molex 15-97-9041 | Mini-Fit TPA Key for 2 and 4 Circuit | |
 | Molex 15-97-9061 | Mini-Fit TPA Key for 6 Circuit | |

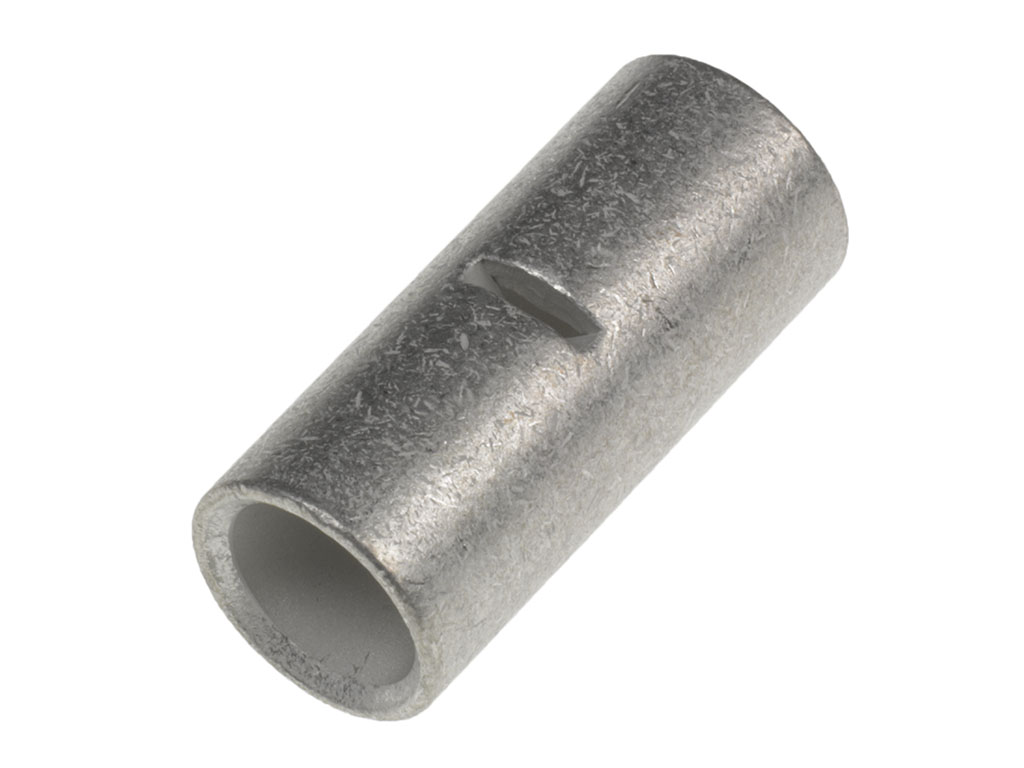

 | Molex 19215-0048 | VersaKrimp Butt Splice for 2/0 AWG Wire | |
 | Molex 33471-0201 | MX150 Sealed Female Connector, Single Row, 2 Circuits, Polarization A, without Connector Position Assurance, Black | |
 | Molex 33471-0206 | MX150 Sealed Female Connector, Single Row, 2 Circuits, Polarization A, with Connector Position Assurance, Black | |
 | Molex 33472-1206 | MX150 Sealed Female Connector, Dual Row, 12 Circuits, Polarization A, with Connector Position Assurance, Black | |
 | Molex 33472-2006 | MX150 Sealed Female Connector, Dual Row, 20 Circuits, Polarization A, with Connector Position Assurance, Black | |
 | Molex 33472-4006 | MX150 Sealed Female Connector, Dual Row, 4 Circuits, Polarization A, with Connector Position Assurance, with Open Standard Grommet Cap, Black | |

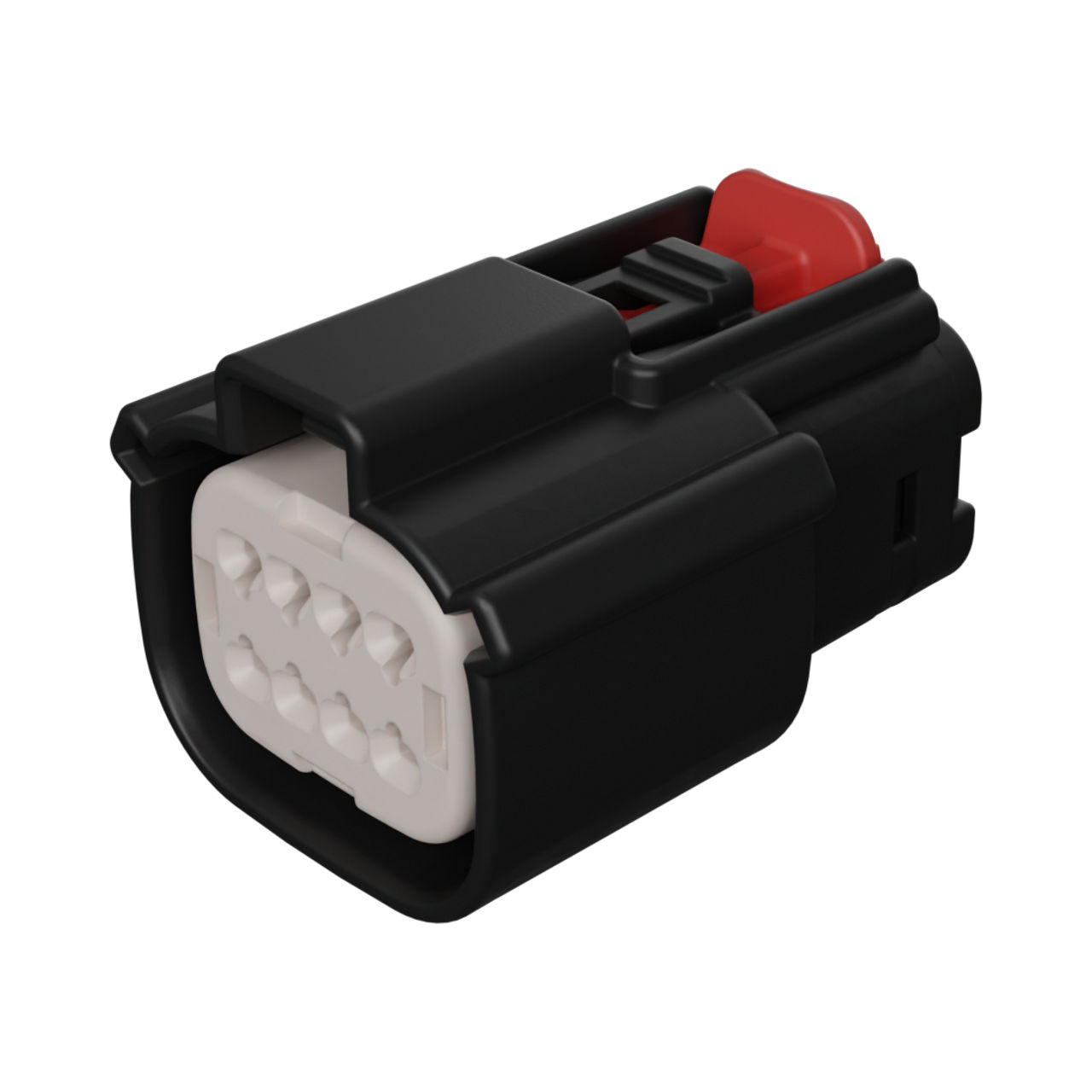

 | Molex 33472-4806 | MX150 Sealed Female Connector, Dual Row, 8 Circuits, Polarization A, with Connector Position Assurance, Black | |
 | Molex 33482-4001 | MX150 Sealed Male Connector, Dual Row, 4 Circuits, Polarization A, without Connector Position Assurance, Black | |
 | Molex 33482-6201 | MX150 Sealed Male Connector, Dual Row, 12 Circuits, Polarization A, without Connector Position Assurance, Black | |
 | Molex 34345-4001 | MX150 Sealed Receptacle Cavity Plug | |

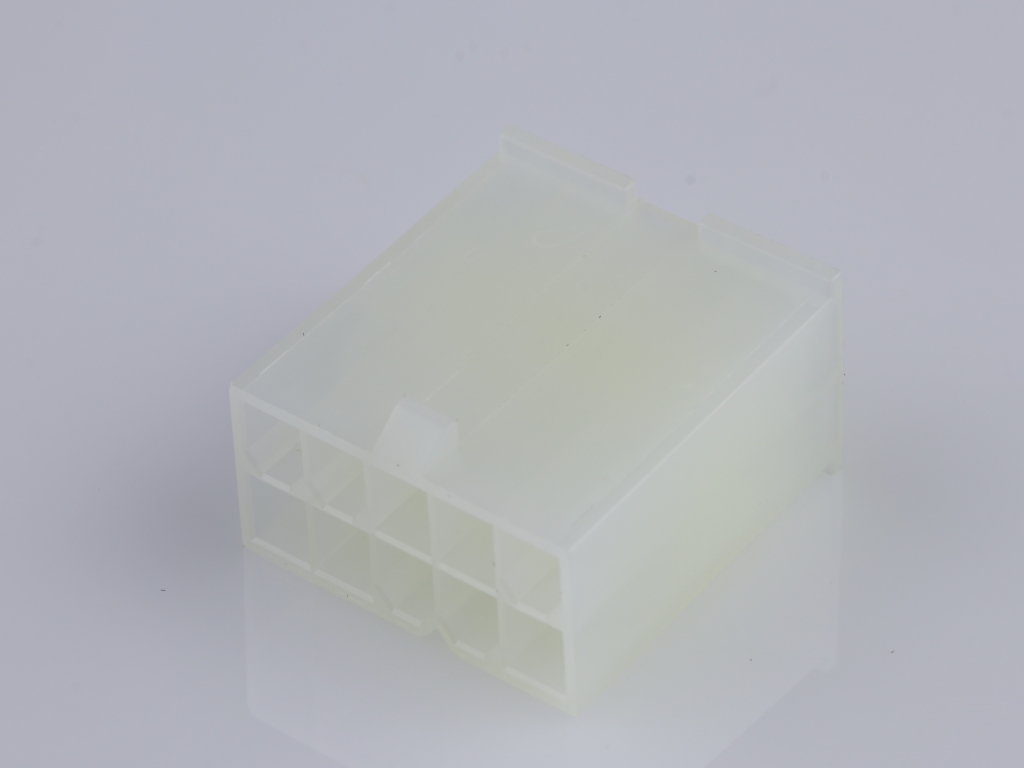

 | Molex 39-01-3103 | Mini-Fit Jr. Plug Housing, Dual Row, 10 Circuits, UL 94V-2, without Panel Mounting Ears, Natural | |
