39-01-3103

MOL39-01-3103
Heilind Number:MOL39-01-3103
Manufacturer:Molex
Manufacturer Number:39-01-3103
Datasheet:Drawing
ECAD Model:
3D Model

Description:

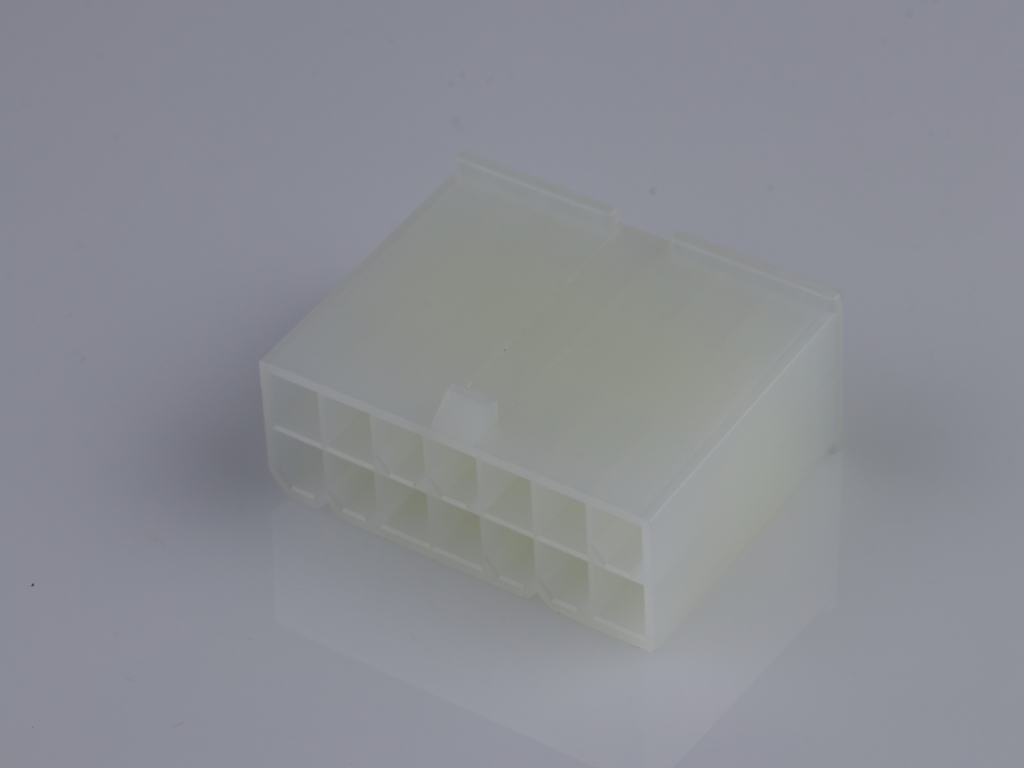

Mini-Fit Jr. Plug Housing, Dual Row, 10 Circuits, UL 94V-2, without Panel Mounting Ears, Natural

More >>

Specifications

AttributeValue
Product Category:
Pin & Socket Housings & Contacts Pin & Socket Housings
Manufacturer:Molex
Manufacturer Part Number:Molex 39-01-3103
Color:Natural
Series:5559 - Mini-Fit Jr.
Amperage:13 A
Connector Type:Mini-Fit Jr.
Gender:Plug
Housing Material:Nylon
Number of Contacts:10
Number of Rows:2
Pitch:4.2 mm
Material:Nylon
Keying:No
Operating Temperature Range:-40 - 105 °C
Circuit Application:Power
Polarized to Mate:Yes
Connector System:Wire to Board, Wire to Wire
Termination Pitch:4.2 mm
Glow Wire Capable:No
Lock to Mating Part:Yes
Stackable:No
Breakaway:No
Material Flammability Standard:94V-2
Part Aliases:0039013103 5559-10P1
SKU:MOL39-01-3103

Detailed Description

The Mini-Fit Jr. Plug Housing is a versatile and durable connector suitable for a variety of power applications. With 10 circuits arranged in a dual row configuration, it provides ample connectivity in a compact design. Constructed from UL 94V-2 rated nylon, it offers excellent safety and reliability. This natural-colored housing is without panel mounting ears, making it easy to integrate into your setup. With a current rating of 13 A, it ensures efficient power transmission. Its polarized design and lock to mating part feature guarantee secure connections. Suitable for wire-to-wire and wire-to-board connections with a 4.2 mm pitch, it offers flexibility in installation. RoHS compliant and capable of operating in a wide temperature range from -40 to 105 °C, this connector meets stringent industry standards for environmental responsibility and performance. Perfect for various applications in electronics, automotive, and industrial settings, the Mini-Fit Jr. Plug Housing is a reliable solution for your connectivity needs.
