87759-0614

Heilind Number:	MOL87759-0614
Manufacturer:	Molex
Manufacturer Number:	87759-0614
Datasheet:	Product Specification
ECAD Model:

Description:

Milli-Grid Header, Surface Mount, Vertical, 6 Circuits, 0.38

More >>

Specifications

Attribute	Value
Product Category:	PC Board Pin & Receptacle Connectors PCB Pin Headers
Manufacturer:	Molex
Manufacturer Part Number:	Molex 87759-0614
Color:	Black
Series:	87759 - Milli-Grid
Amperage:	2 A
Connector Type:	Milli-Grid
Number of Contacts:	6
Number of Rows:	2
Termination Method:	Surface Mount
Contact Material:	Phosphor Bronze
Body Orientation:	Straight
Pitch:	2 mm
Voltage:	125 V
Material:	Nylon
Orientation:	Vertical
Keying:	No
Packaging:	Tube
Operating Temperature Range:	-55 - 105 °C
Contact Mating Area Plating:	Gold
Contact Mating Area Plating Thickness:	.381 µm
Number of Contacts Loaded:	6
Mating Cycles:	100
PCB Locator:	No
PCB Retention:	Without
Polarized to PCB:	No
Polarized to Mate:	No
Connector System:	Board to Board
UL Agency Certification:	E29179
Contact Termination Plating:	Tin
Maximum Solder Process Temperature:	260 °C
Lead Free Process Capability:	REFLOW
Duration at Max. Process Temperature (seconds):	010
Max. Cycles at Max. Process Temperature:	003
Termination Pitch:	2 mm
Glow Wire Capable:	No
Guide to Mating Part:	No
Lock to Mating Part:	No
Mated Height:	3.8 mm
Stackable:	No
Breakaway:	Yes
Make First / Break Last:	No
Shroud Type:	No
Material Flammability Standard:	94V-0
Part Aliases:	0877590614
SKU:	MOL87759-0614

Detailed Description

Introducing the 87759-0614 Milli-Grid Header, a high-performance surface mount connector designed for vertical PCB applications. With 6 circuits and a compact 2mm pitch, this black connector is perfect for space-constrained designs. Constructed with durable nylon and gold-plated phosphor bronze contacts, it ensures reliable power and signal transmission. Rated for 125V and 2A, it offers excellent performance in a wide range of applications. RoHS compliant and lead-free reflow solder compatible, it meets stringent environmental standards. The 87759-0614 is a versatile and dependable solution for your PCB connectivity needs.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 15-91-6079	2.54mm Pitch SL Wire-to-Board Header, Low Profile, Surface Mount, Single Row, Right Angle, 3.05mm Pocket, Shrouded, with Press-fit Plastic Peg, 7 Circuits, Tin (Sn) Plating, Embossed Tape Packaging
	Molex 22-05-3081	KK 254 Solid Header, Right Angle, with Friction Lock, 8 Circuits, Tin (Sn) Plating
	Molex 22-11-2052	KK 254 Solid Header, Vertical, with Friction Lock, 5 Circuits, Gold (Au) Plating
	Molex 22-23-2021	KK 254 Solid Header, Vertical, with Friction Lock, 2 Circuits, Tin (Sn) Plating
	Molex 22-23-2041	KK 254 Solid Header, Vertical, with Friction Lock, 4 Circuits, Tin (Sn) Plating
	Molex 22-23-2061	KK 254 Solid Header, Vertical, with Friction Lock, 6 Circuits, Tin (Sn) Plating
	Molex 39-30-0020	Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 2 Circuits, PA Polyamide Nylon 6/6 94V-0, 2.54µm Matte Tin (Sn) Plating
	Molex 43045-0413	Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 4 Circuits, with PCB Polarizing Peg, Gold, Glow-Wire Capable, Black

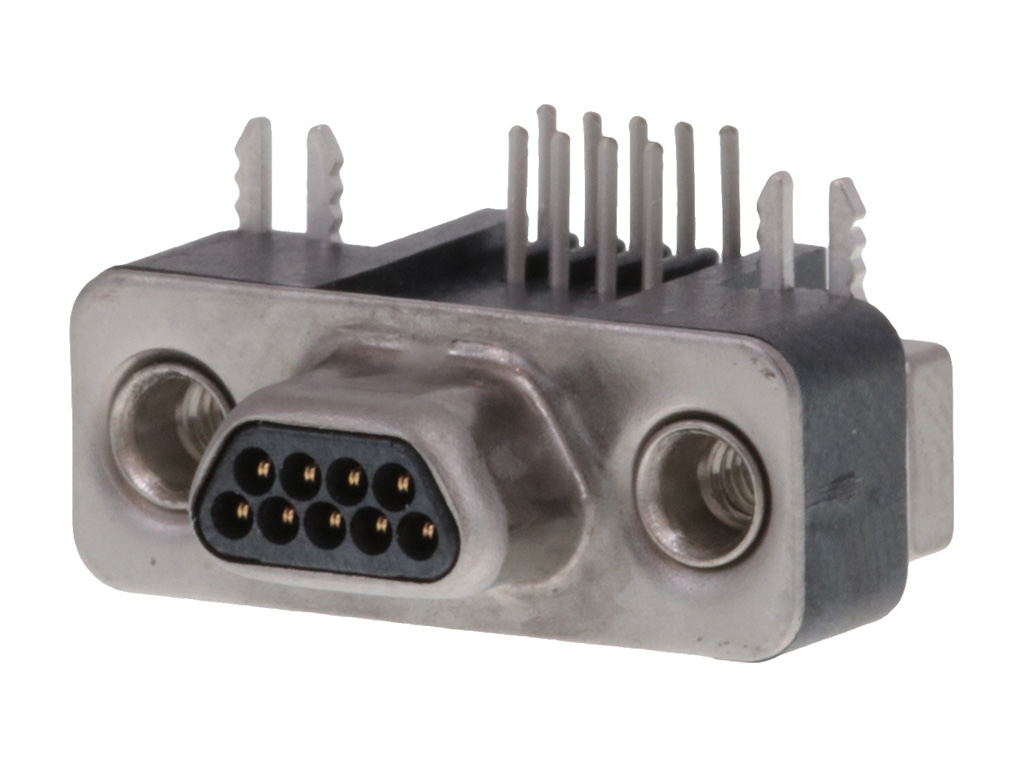

	Molex 83611-9016	1.27mm Pitch Commercial Micro-D, PCB Mount, Right-Angle Plug, without Jackposts, 9 Circuits
