| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 200875-0002 |
| Color: | Black |
| Series: | 200875 - Micro-Fit TPA |
| Connector Type: | MicroTPA |
| Gender: | Plug |
| Number of Contacts: | 2 |
| Number of Rows: | 1 |
| Pitch: | 3 mm |
| Material: | Nylon |
| Keying: | No |
| Operating Temperature Range: | -40 - 105 °C |
| Circuit Application: | Power |
| Polarized to Mate: | Yes |
| Connector System: | Wire to Wire |
| Glow Wire Capable: | No |
| Lock to Mating Part: | Yes |
| Stackable: | No |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 2008750002 |
| SKU: | MOL200875-0002 |

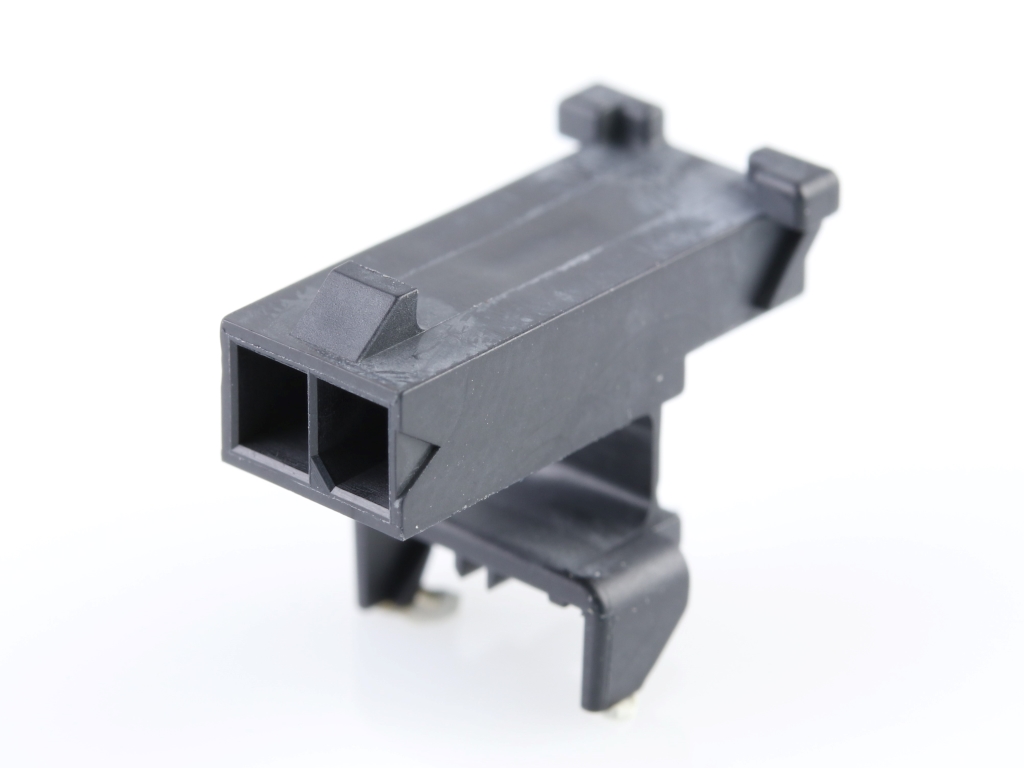

200875-0002
Specifications
Detailed Description
The 200875-0002 is a Micro-Fit TPA Free-Hanging Plug Housing designed for reliable power connections in various applications. With UL 94V-0 and Low-Halogen certifications, this black housing ensures safety and compliance with industry standards. Featuring a single row configuration and 2 circuits, it is perfect for wire-to-wire connections. Made of durable nylon and rated for an operating temperature range of -40 to 105 °C, this housing guarantees performance in harsh environments. Its polarized design and lock to mating part feature provide secure connections, while its RoHS compliance reflects its environmental responsibility. Upgrade your connectivity with the 200875-0002 Micro-Fit TPA Plug Housing.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 172708-1004 | Mini-Fit Sigma Receptacle Housing, 4.20mm Pitch, Dual Row, Glow-Wire Capable, 4 Circuits |  |
 | Molex 172709-2004 | Mini-Fit Sigma Terminal Position Assurance (TPA) Retainer, 4.20mm Pitch, UL 94V-0, Glow-Wire Capable, 4 Circuits, Natural | |
 | Molex 172709-2009 | Mini-Fit Sigma Terminal Position Assurance (TPA) Retainer, 4.20mm Pitch, UL 94V-0, Glow-Wire Capable, 9 Circuits, Natural | |
 | Molex 19069-0223 | Krimptite Ring Tongue Terminal for 12-10 AWG Wire, Stud Size 5/16" (M8), Length 24.18mm, Carton | |
 | Molex 200453-1002 | Mini-Fit Sigma Receptacle Housing, 4.20mm Pitch, Single Row, Glow-Wire Capable, 2 Circuits | |

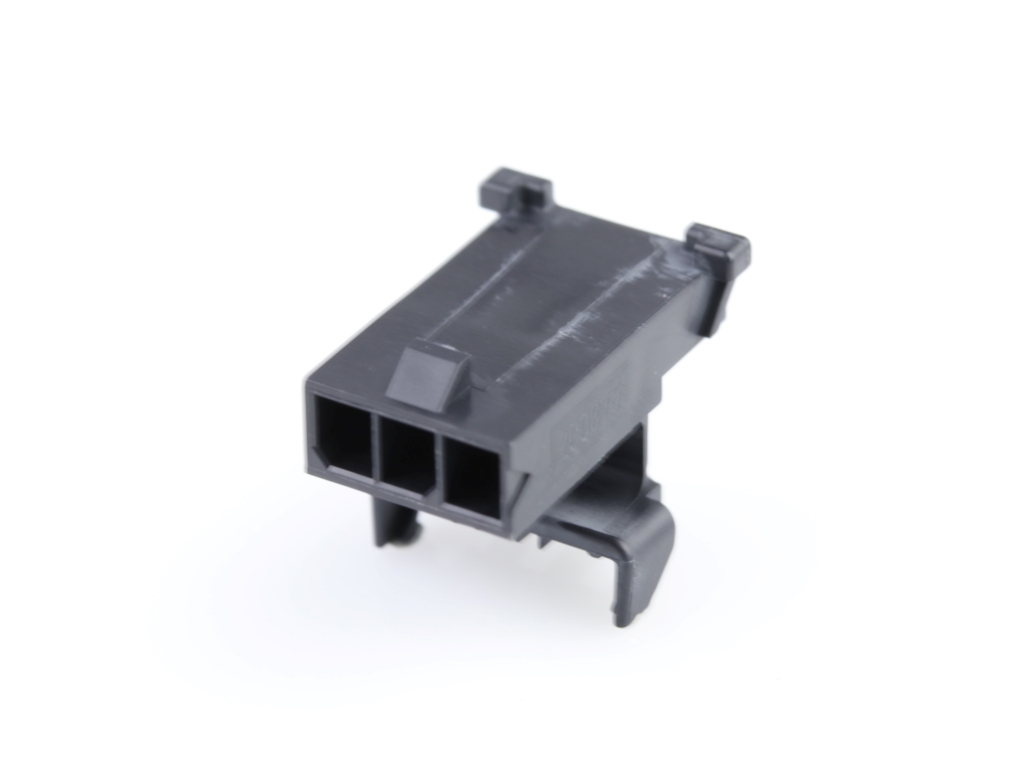

 | Molex 200875-0003 | Micro-Fit TPA Free-Hanging Plug Housing, Single Row, 3 Circuits, UL 94V-0, Low-Halogen, Black | |
 | Molex 200875-0004 | Micro-Fit TPA Free-Hanging Plug Housing, Single Row, 4 Circuits, UL 94V-0, Low-Halogen, Black | |

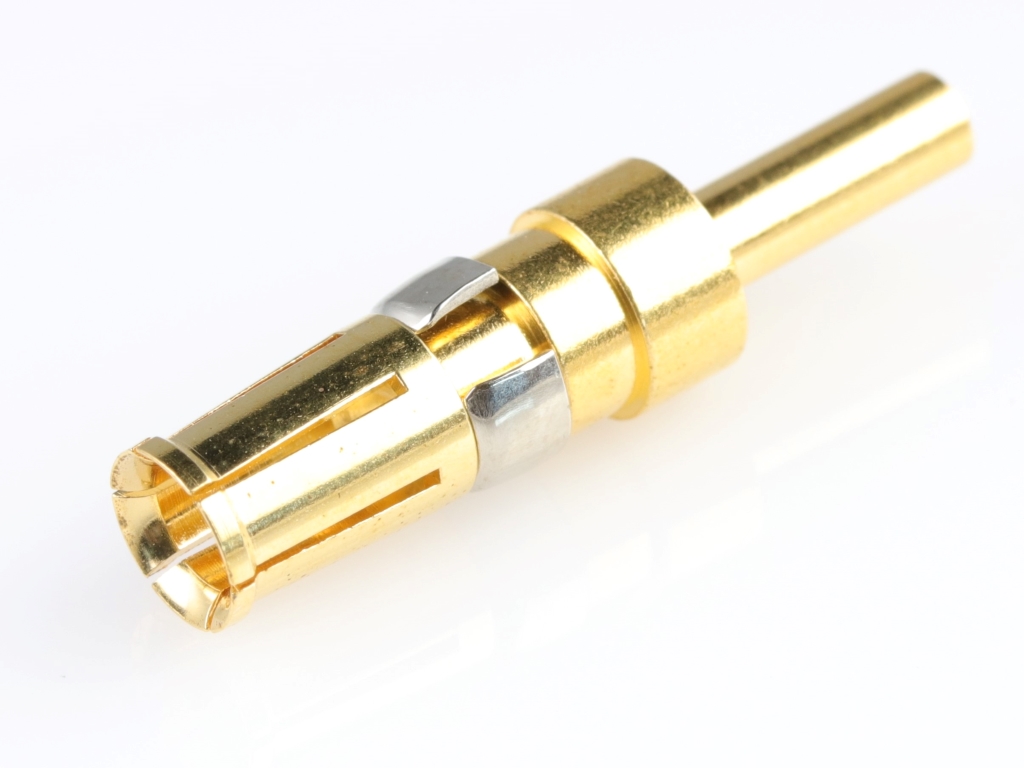

 | Molex 201846-0010 | MultiCat High-Power Receptacle Terminal, Gold over Nickel Phosphorus Plating, 18-16 AWG | |
