| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 201846-0010 |
| Series: | 201846 - MultiCat |
| Amperage: | 16 A |
| Connector Type: | MultiCat |
| Gender: | Female |
| Termination Method: | Crimp or Compression |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold Over Nickel |
| Voltage: | 1000 V AC |
| Packaging: | Bag |
| Circuit Application: | Power |
| Contact Mating Area Plating: | Gold over Nickel Phosphorus |
| Contact Mating Area Plating Thickness: | .1 µm |
| Mating Cycles: | 500 |
| Contact Termination Plating Thickness: | .2 µm |
| Wire Size: | 16 AWG, 18 AWG, .82 - 1.31 mm² |
| Connector System: | Wire to Board, Wire to Wire |
| Contact Termination Plating: | Gold over Nickel |
| Wire Insulation Diameter: | 2.36 - 2.59 mm |
| Part Aliases: | 2018460010 FPG002S204 |
| SKU: | MOL201846-0010 |
201846-0010
| Heilind Number: | MOL201846-0010 |
| Manufacturer: | Molex |
| Manufacturer Number: | 201846-0010 |
| Datasheet: | Application Specification |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the 201846-0010 MultiCat Receptacle Terminal, a high-performance connectivity solution for your power applications. With Gold over Nickel Phosphorus plating, this terminal ensures reliable conductivity and corrosion resistance, even in harsh environments. Designed for 16-18 AWG wires, it offers a secure crimp or compression termination method. The female connector type is versatile and easy to install, ideal for wire-to-wire or wire-to-board connections. With a current rating of 16 A and a voltage withstand of 1000 V AC, this terminal is suitable for demanding power circuit applications. Its copper alloy construction with gold over nickel plating in the mating and termination areas guarantees durability and longevity, with a minimum of 500 mating cycles. RoHS compliant and in stock for immediate shipping, the 201846-0010 is the perfect choice for your high-reliability connectivity needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 172704-0096 | FCT Metal Backshell for D-Sub Connector, Shell Size 1, Straight Cable Outlet, Large Inner Chamber, with Rubber Bushing and #4-40 Locking Screws |  |
 | Molex 172704-0099 | FCT Metal Backshell for D-Sub Connector, Shell Size 3, 45° Angle Cable Outlet, Large Inner Chamber, with Rubber Bushing and #4-40 Locking Screws | |
 | Molex 173111-0060 | FCT Metal Backshell for D-Sub Connector, Shell Size 2, Straight Large Diameter Cable Outlet, Large Inner Chamber, with Rubber Bushing and #4-40 Locking Screws | |
 | Molex 19193-0375 | VersaKrimp Ring Tongue Terminal for 4/0 AWG Wire | |
 | Molex 200875-0002 | Micro-Fit TPA Free-Hanging Plug Housing, Single Row, 2 Circuits, UL 94V-0, Low-Halogen, Black | |
 | Molex 201841-0030 | MultiCat Inline Receptacle Housing, 3 Circuits, Black, Key A | |

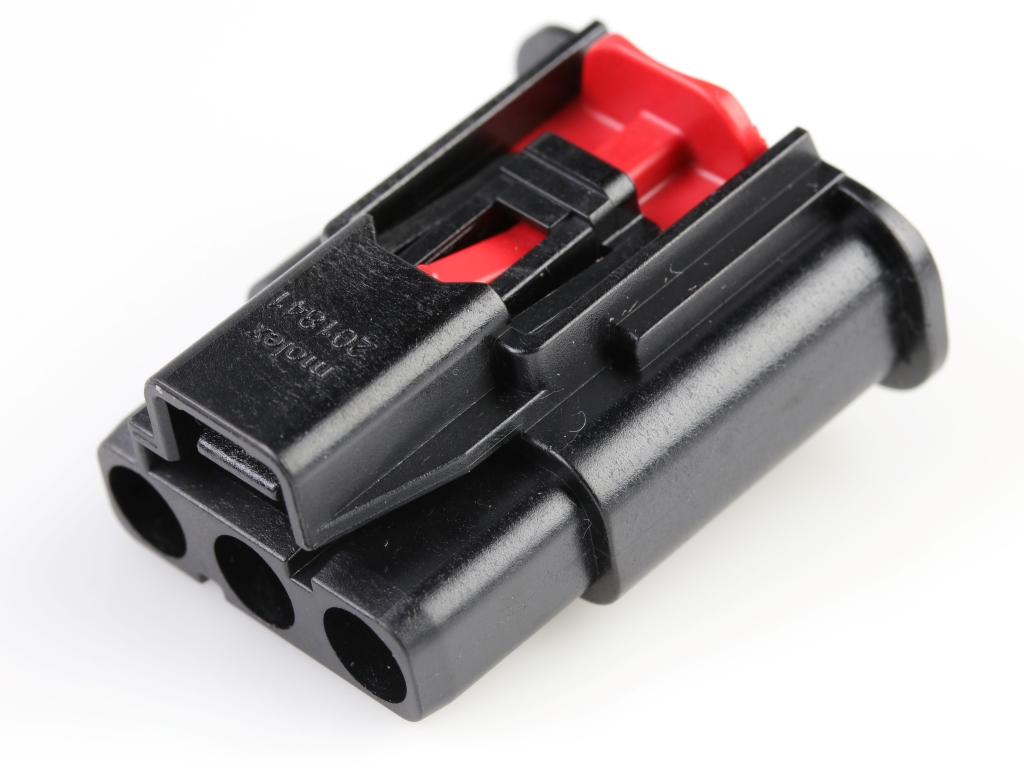

 | Molex 201841-0130 | MultiCat Inline Receptacle Housing with CPA, 3 Circuits, Black, Key A | |

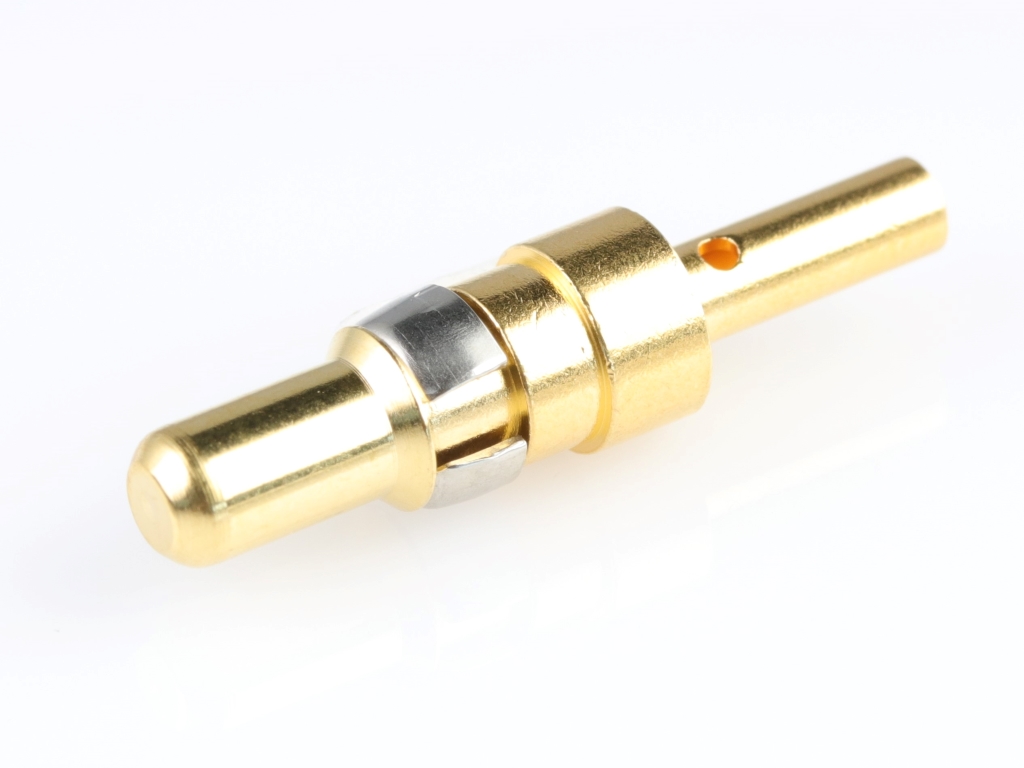

 | Molex 201845-0010 | MultiCat Plug Terminal, Gold over Nickel Phosphorus Plating, 16-18 AWG | |
 | Molex 201846-0020 | MultiCat Receptacle Terminal, Gold over Nickel Phosphorus Plating, 12-14 AWG | |
 | Molex 43020-0201 | Micro-Fit 3.0 Plug Housing, Dual Row, 2 Circuits, UL 94V-0, Low-Halogen, Black | |
 | Molex 502380-0800 | 1.25mm Pitch CLIK-Mate Wire-to-Board Housing, Single Row, Positive Lock, 8 Circuits, White | |
 | Molex 52116-0411 | Mizu-P25 2.50mm Pitch Waterproof Wire-to-Wire Plug Housing, 4 Circuits, Black | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 07/15/2023 | 513774 - Packaging Method/Quantity Changing. The purpose of the change is to align , commanise and make the MLQ and DU global. As a result there is DU change, however the Fit, Form and Function remains the same. The Reason for the change is a corrective action, in that to reduce the incoherence caused between DU and MLQ. The Change is implemented by standardizing the MLQ and DU. | Download | |||
