| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19069-0223 |
| Series: | 19069 - Krimptite |
| Connector Type: | Krimptite |
| Termination Method: | Crimp or Compression |
| Contact Plating: | Tin |
| Stud Size: | 5/16" (M8) |
| Insulation Material: | None |
| Packaging: | Bag |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | 2.54 µm |
| Contact Termination Plating Thickness: | 2.540 µm |
| Wire Size: | 10 AWG, 12 AWG, 4 - 6 mm² |
| CSA Agency Certification: | LR18689 |
| UL Agency Certification: | E32244 |
| Contact Termination Plating: | Tin |
| Barrel Type: | Closed |
| Part Aliases: | 0190690223 C-130-56 |
| SKU: | MOL19069-0223 |
19069-0223
Specifications
Detailed Description
Introducing the 19069-0223 Krimptite Ring Tongue Terminal, a reliable solution for secure connections in electrical applications. Designed for 10-12 AWG wires, this terminal features a 5/16" (M8) stud size and a length of 24.18mm for compatibility with various systems. Its tin contact plating ensures excellent conductivity, while the closed barrel design offers added protection. Certified by LR18689 and E32244, this terminal meets stringent quality standards. Suitable for crimp or compression termination methods, it accommodates 12 AWG, 10 AWG, and 4-6 mm² wires. With RoHS compliance and in-stock availability, the 19069-0223 is the ideal choice for your connectivity needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 19069-0109 | Krimptite Ring Tongue Terminal for 14-16 AWG Wire |  |
 | Molex 19070-0059 | InsulKrimp Ring Tongue Terminal for 14-16 AWG Wire | |
 | Molex 19144-0043 | InsulKrimp Spade Tongue Terminal for 10-12 AWG Wire, Tape and Reel | |
 | Molex 19193-0116 | VersaKrimp Ring Tongue Terminal for 10-12 AWG Wire | |
 | Molex 19193-0137 | VersaKrimp Ring Tongue Terminal for 10-12 AWG Wire, 3/8 (M9) Stud Size | |

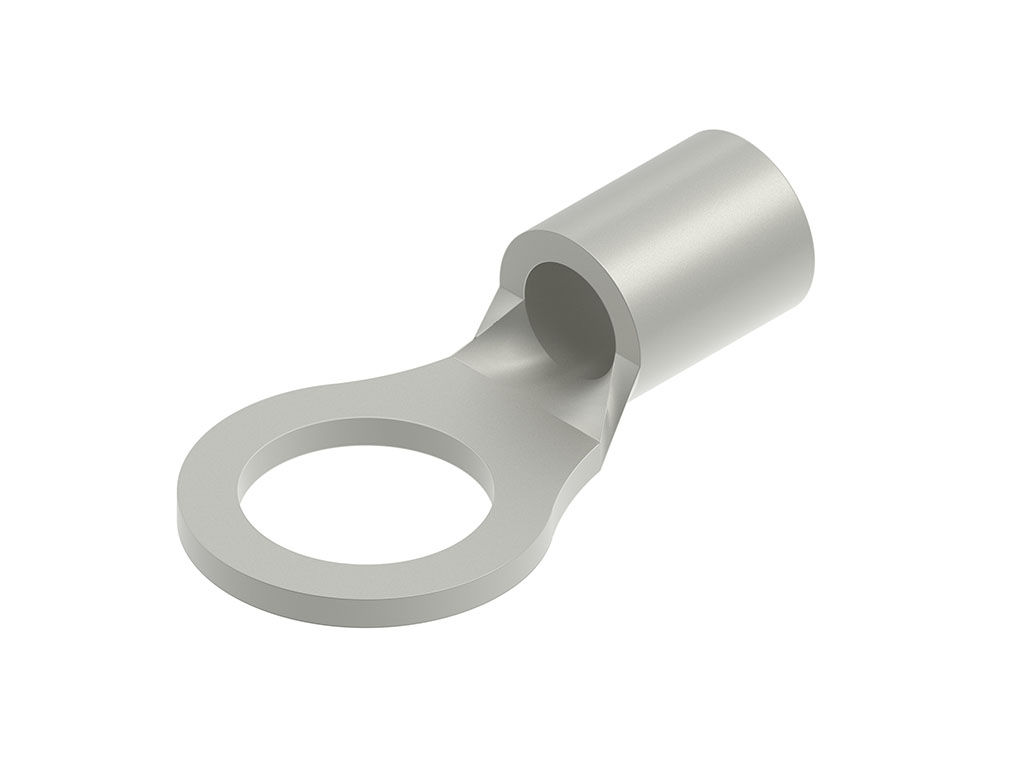

 | Molex 19193-0157 | VersaKrimp Ring Tongue Terminal for 8 AWG Wire, Stud Size 5/16 (M8) | |
 | Molex 19193-0264 | VersaKrimp Ring Tongue Terminal for 4 AWG Wire | |
 | Molex 19198-0026 | Avikrimp Spade Tongue Terminal for 16-14 AWG Wire, Stud Size 10 (M5), Mylar Tape Carrier | |
 | Molex 19221-0230 | Compression Style Ring Tongue Terminal for 4 AWG Wire, Stud Size 1/4 (M6), Tin Plated | |

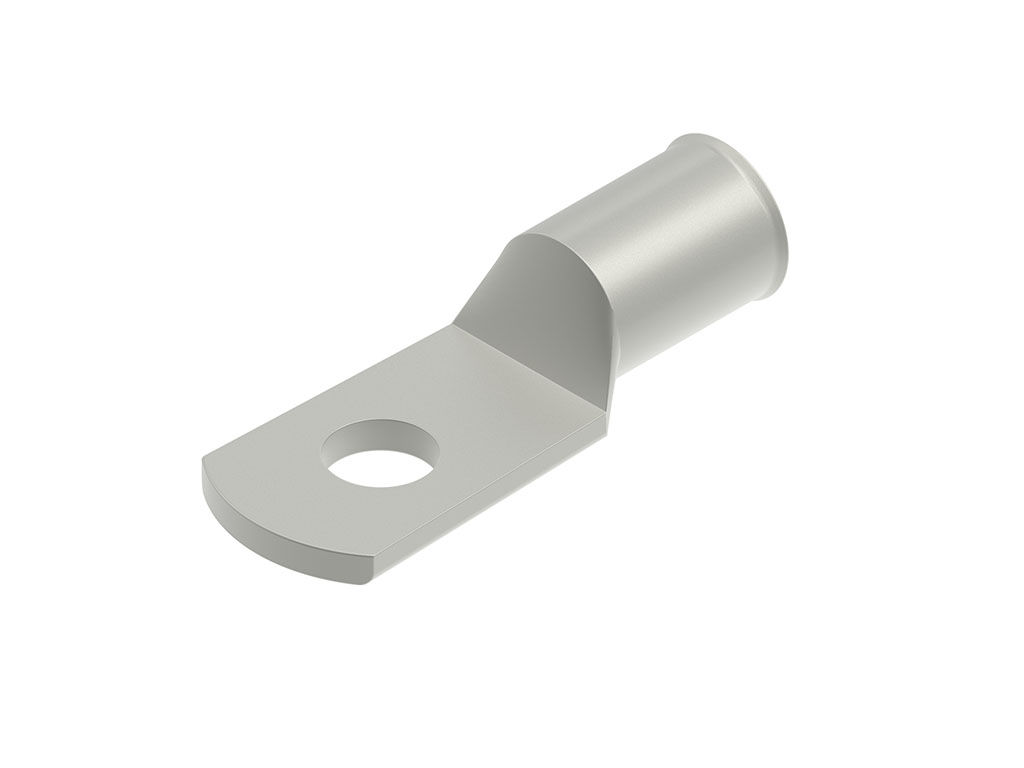

 | Molex 19221-0408 | Compression Style Ring tongue Terminal for 8 AWG Wire, Stud Size 10 (M5), Un-plated | |
