| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19099-0049 |
| Color: | Yellow |
| Series: | 19099 - InsulKrimp |
| Connector Type: | InsulKrimp |
| Contact Plating: | Tin |
| Stud Size: | 8 (M4) |
| Insulation Material: | PVC |
| Packaging: | Adhesive Tape on Reel |
| Contact Mating Area Plating: | Tin |
| Wire Size: | 10 AWG, 12 AWG, 3.3 - 5 mm² |
| CSA Agency Certification: | LR18689 |
| UL Agency Certification: | E32244 |
| Wire Insulation Diameter: | 6.4 mm |
| Barrel Type: | Closed |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0190990049 C-2718-08XT |
| SKU: | MOL19099-0049 |
19099-0049
| Heilind Number: | MOL19099-0049 |
| Manufacturer: | Molex |
| Manufacturer Number: | 19099-0049 |
| Datasheet: | RoHS Certificate of Compliance |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the 19099-0049 InsulKrimp Snap Spade Terminal, a reliable solution for your electrical connection needs. Designed for 10-12 AWG wires, this yellow terminal features a durable tin plating and PVC insulation for enhanced conductivity and safety. With a CSA agency certification and UL agency certification, you can trust in its quality and performance. The closed barrel design ensures secure connections, while the stud size 8 (M4) accommodates various applications. Conveniently packaged on adhesive tape reel, this terminal is easy to use and store. Rest assured, it is RoHS compliant, making it a sustainable choice for your projects. Upgrade your crimping tasks with this high-quality InsulKrimp terminal.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 16-02-0086 | SL Crimp Terminal, Series 70058, Female, 24-22 AWG, with Tin (Sn) Plated Contact, Reel |  |
 | Molex 19002-0001 | Avikrimp Fully Insulated Quick Disconnect, Female for 18-22 AWG Wire, Box | |
 | Molex 19003-0042 | InsulKrimp Quick Disconnect, Female, for 14-16 (2.00-1.30mm?), Mylar Tape, Tab 6.35 x 0.81mm | |
 | Molex 19070-0013 | InsulKrimp Ring Tongue Terminal for 18-22 AWG Wire | |
 | Molex 19073-0086 | Avikrimp Ring Tongue Terminal for 14 to 16 AWG Wire, Stud Size 8 (M4), Length 22.48mm, Mylar Tape Carrier | |
 | Molex 19099-0028 | InsulKrimp Snap Spade for 16-14 AWG Wire, Stud Size 6 (M3.5), Mylar Tape Carrier, Blue | |
 | Molex 19099-0032 | InsulKrimp Snap Spade Terminal for 14-16 AWG Wire, Blue | |
 | Molex 19099-0033 | InsulKrimp Snap Spade for 16-14 AWG Wire, Stud Size 8 (M4), Mylar Tape Carrier, Length 22.12mm, Blue | |
 | Molex 19099-0051 | InsulKrimp Snap Spade for 10-12 AWG Wire, Stud Size 10 (M5), Mylar Tape Carrier, Yellow | |
 | Molex 19160-0012 | Closed-End Insulated Splice for 14-22 AWG Wire, Clear | |
 | Molex 19193-0248 | VersaKrimp Ring Tongue Terminal for 6 AWG Wire | |
 | Molex 19193-0307 | VersaKrimp Ring Tongue Terminal for 2 AWG Wire | |
 | Molex 19193-0331 | VersaKrimp Ring Tongue Terminal for 1/0 AWG Wire | |

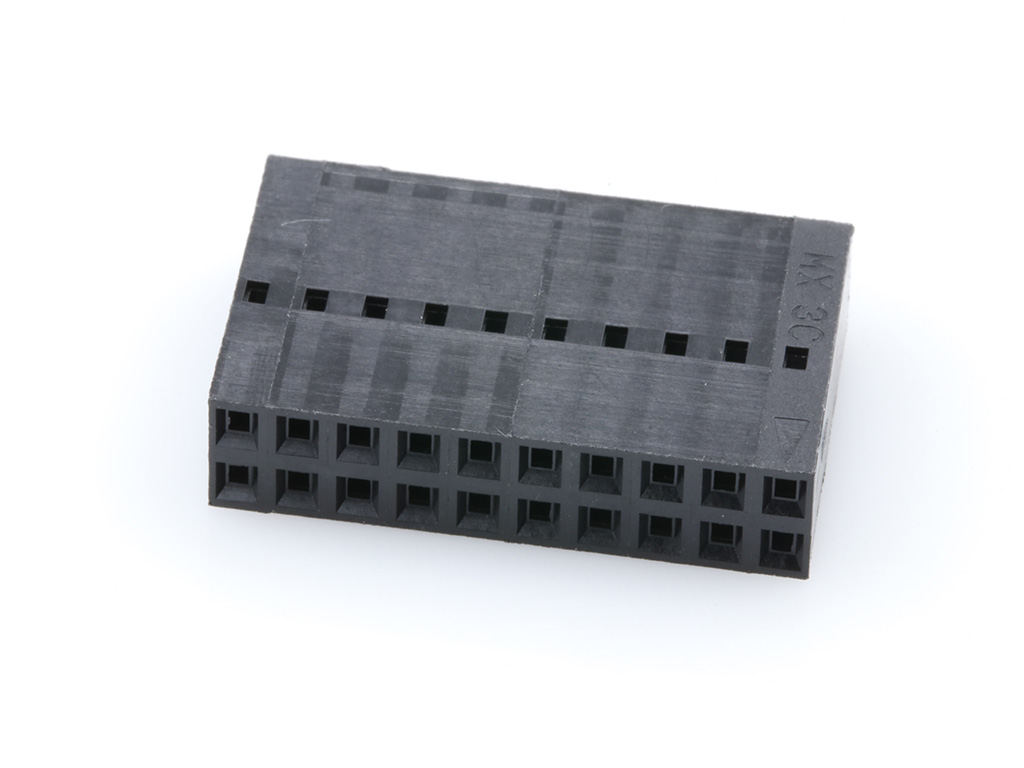

 | Molex 22-55-2201 | 2.54mm Pitch SL Crimp Housing, Dual Row, Version A, Non-polarized, 20 Circuits, Black | |
