| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19073-0119 |
| Color: | Yellow |
| Series: | 19073 - Avikrimp |
| Connector Type: | Avikrimp |
| Termination Method: | Crimp or Compression |
| Contact Material: | Copper |
| Stud Size: | 1/4" (M6) |
| Insulation Material: | Nylon (PA) |
| Packaging: | Carton |
| Operating Temperature Range: | 105 °C |
| Contact Mating Area Plating: | Tin |
| Wire Size: | 10 AWG, 12 AWG, 4 - 6 mm² |
| CSA Agency Certification: | LR18689 |
| UL Agency Certification: | E32244 |
| Wire Insulation Diameter: | 5.72 mm |
| Barrel Type: | Closed |
| Material Flammability Standard: | 94V-2 |
| Part Aliases: | 0190730119 C-530-14 |
| SKU: | MOL19073-0119 |
19073-0119
Specifications
Detailed Description
Introducing the 19073-0119 RING AVIKRIMP (C-530-14), a high-quality yellow connector designed for versatile applications. Part of the Avikrimp series, this terminal offers reliable performance through its crimp or compression termination method. Constructed with durable copper and featuring a 1/4" (M6) stud size, it ensures secure connections. The insulation material, Nylon (PA), and a closed barrel design guarantee safety and efficiency. With UL and CSA agency certifications, as well as RoHS compliance, this terminal meets international standards. Suitable for 12 AWG, 10 AWG, and 4-6 mm² wire sizes, it is a must-have for various projects. Stay connected with confidence using the 19073-0119 RING AVIKRIMP.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 08-70-0059 | SPOX Crimp Terminal 5103, 22-28 AWG, Bag, Phosphor Bronze (CuSn), Tin (Sn) Plating, Loose Type |  |
 | Molex 19-09-1099 | 2.36mm Diameter Standard .093 Pin and Socket Receptacle Housing with Positive Latch, UL 94V-2, 9 Circuits | |
 | Molex 19054-0086 | RING INSULKRIMP (B-225-14X) | |
 | Molex 19057-0090 | RING AVIKRIMP (B-537-08) | |

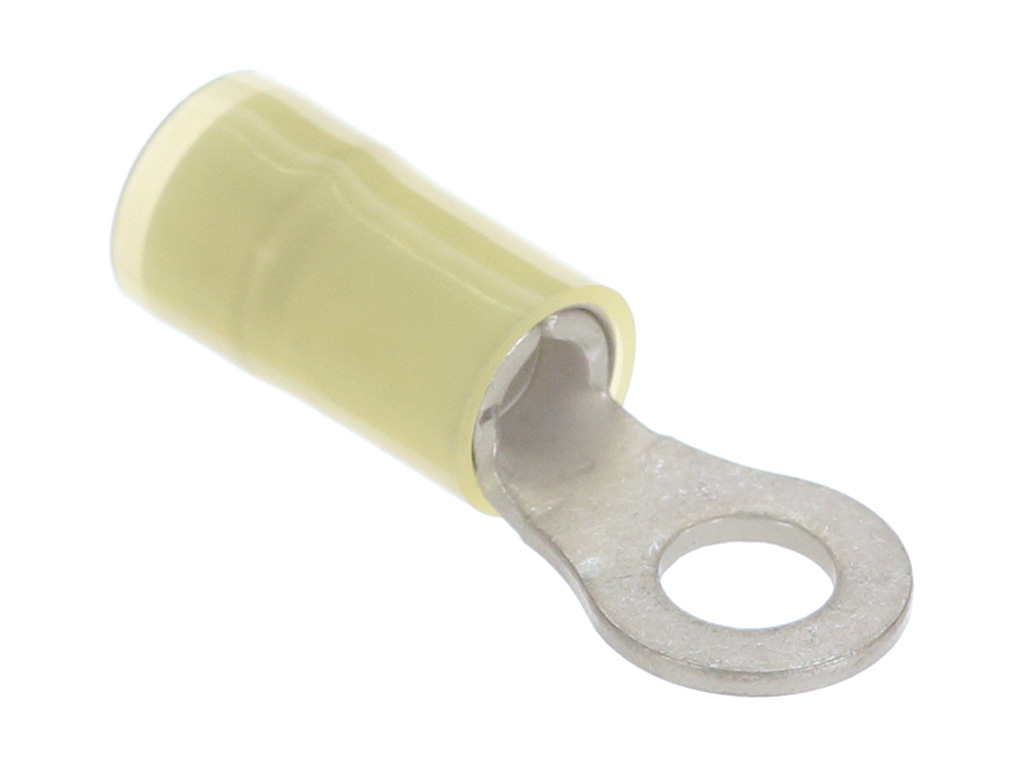

 | Molex 19073-0113 | RING AVIKRIMP (C-528-10) | |
 | Molex 19073-0132 | RING AVIKRIMP (C-536-08) | |
 | Molex 19073-0237 | Avikrimp Ring Tongue Terminal for 10 to 12 AWG Wire, Stud Size 3/8 (M9), Length 34.59mm, Mylar Tape Carrier | |
 | Molex 19115-0031 | Avikrimp Snap Spade Terminal for 14-16 AWG Wire | |
 | Molex 19154-0028 | InsulKrimp Butt Splice for 10-12 AWG Wire | |
 | Molex 19164-0004 | Perma-Seal Ring Tongue Terminal for 18-22 AWG Wire, Stud Size 1/4 (M6) | |
 | Molex 19164-0056 | Perma-Seal Butt Splice for 10-12 AWG Wire | |

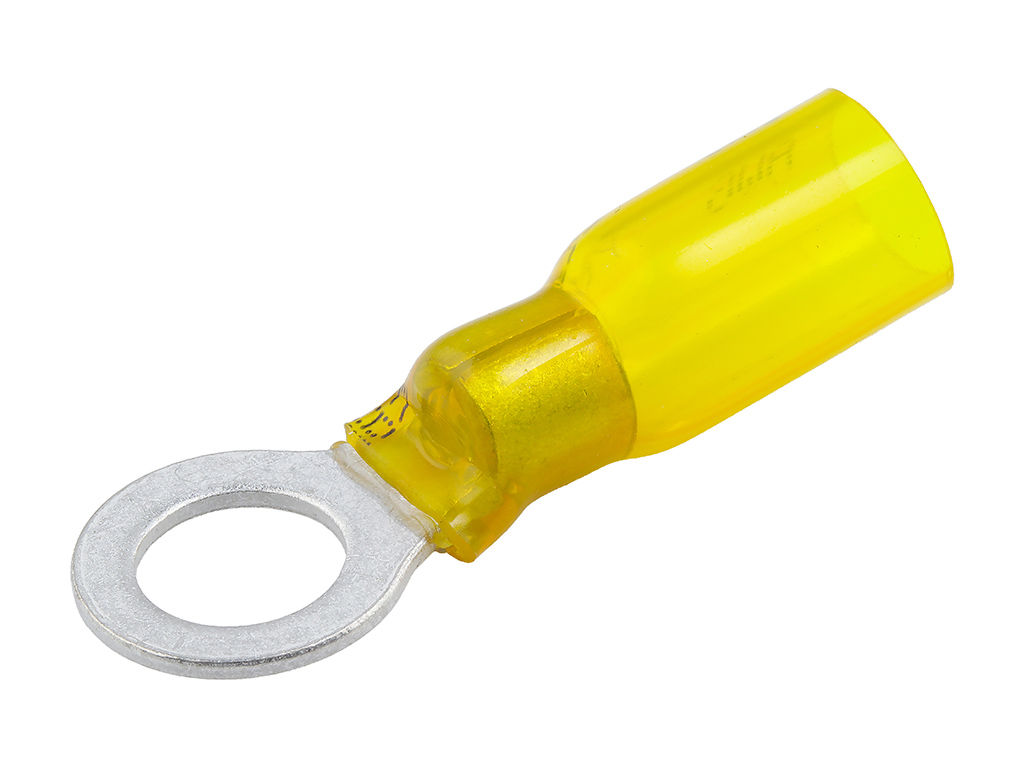

 | Molex 19164-0067 | Perma-Seal Ring Tongue Terminal for 10-12 AWG Wire, Stud Size 5/16 (M8) | |
 | Molex 19193-0345 | VersaKrimp Ring Tongue Terminal for 2/0 AWG Wire | |

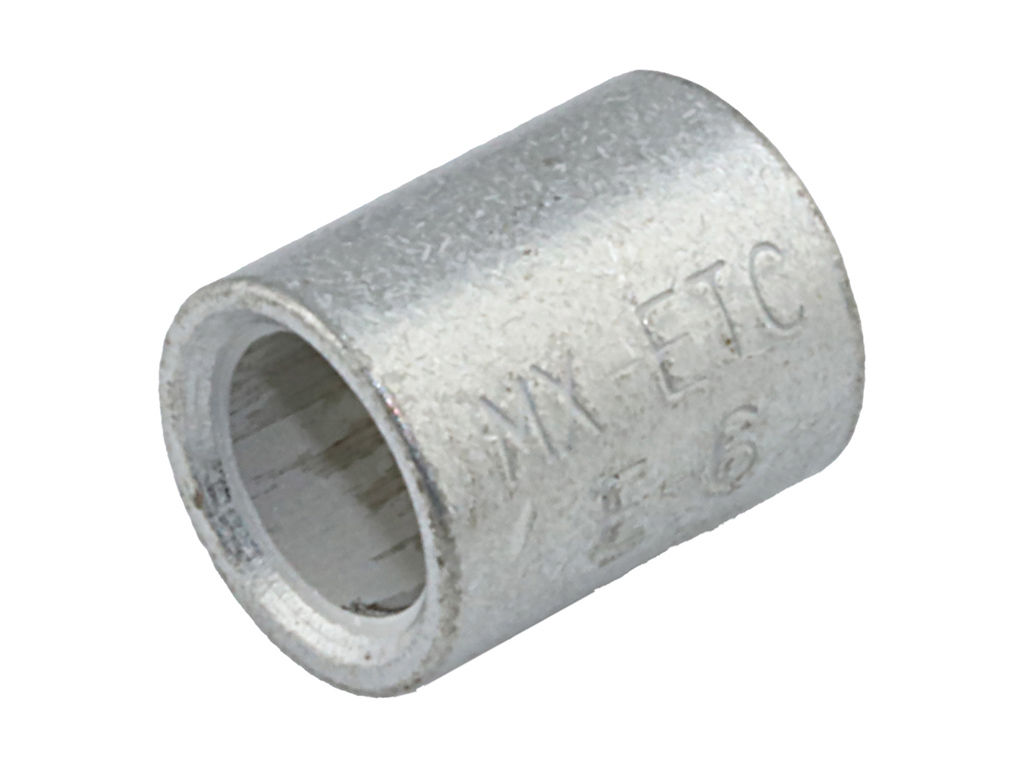

 | Molex 19205-0006 | VersaKrimp Parallel Splice for 6 AWG Wire | |

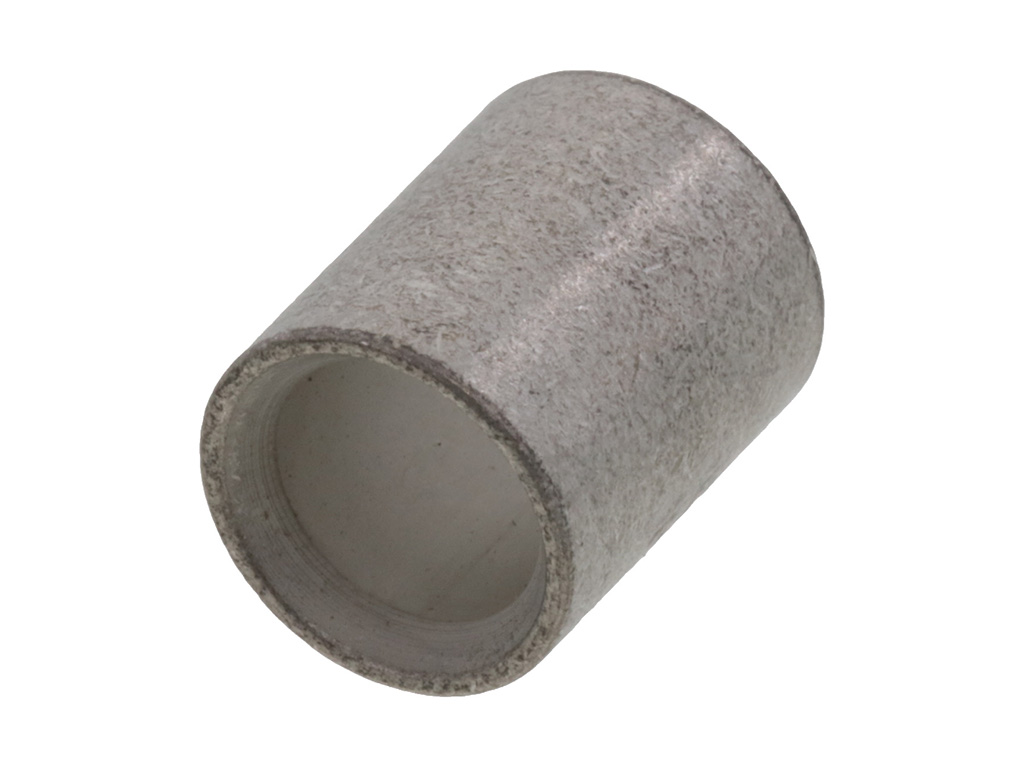

 | Molex 19205-0008 | VersaKrimp Parallel Splice for 2 AWG Wire | |
 | Molex 19432-0013 | MX150L 2 Circuit Female Sealed Receptacle for 10-12 AWG Wire | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 02/04/2022 | 510969 - Change Supplier. Due to global shortages for components used to formulate Nylon Resin our vendor cannot guarantee exact delivery dates of their Nylon resin to molex. to prevent a disruption in the supply chain we've added a 2nd source to contribute to our supply of nylon resin. | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 19073-0119 |
| Other Names: | 0190730119 C-530-14 |
