| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19057-0090 |
| Color: | Blue |
| Series: | 19057 - Avikrimp |
| Connector Type: | Avikrimp |
| Termination Method: | Crimp or Compression |
| Contact Material: | Copper |
| Stud Size: | 8 (M4) |
| Insulation Material: | Nylon (PA) |
| Operating Temperature Range: | 105 °C |
| Contact Mating Area Plating: | Tin |
| Wire Size: | 14 AWG, 16 AWG, 1 - 2.5 mm² |
| Wire Insulation Diameter: | 4.32 mm |
| Barrel Type: | Closed |
| Material Flammability Standard: | 94V-2 |
| Part Aliases: | 0190570090 B-537-08 |
| SKU: | MOL19057-0090 |
19057-0090
| Heilind Number: | MOL19057-0090 |
| Manufacturer: | Molex |
| Manufacturer Number: | 19057-0090 |
| Datasheet: | Product Specification |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the 19057-0090 RING AVIKRIMP (B-537-08), a high-quality crimp or compression terminal for efficient wire termination. Featuring a durable copper construction with a tin plating on the contact mating area, this terminal ensures reliable conductivity. The nylon insulation material and closed barrel design provide excellent protection and strain relief, making it ideal for demanding applications. With CSA and UL agency certifications, as well as RoHS compliance, you can trust in the safety and quality of this product. Suitable for wire sizes ranging from 14 AWG to 16 AWG, with a stud size of 8 (M4), it offers versatility in installation. Whether for industrial or commercial use, the RING AVIKRIMP terminal guarantees performance and longevity in various operating environments.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 03-06-1032 | 1.57mm Diameter Standard .062 Pin and Socket Receptacle Housing, 3 Circuits, without Mounting Ears, Natural |  |
 | Molex 15-04-0343 | Mini-Fit Jr. Strain Relief, 8 Circuits, Natural | |

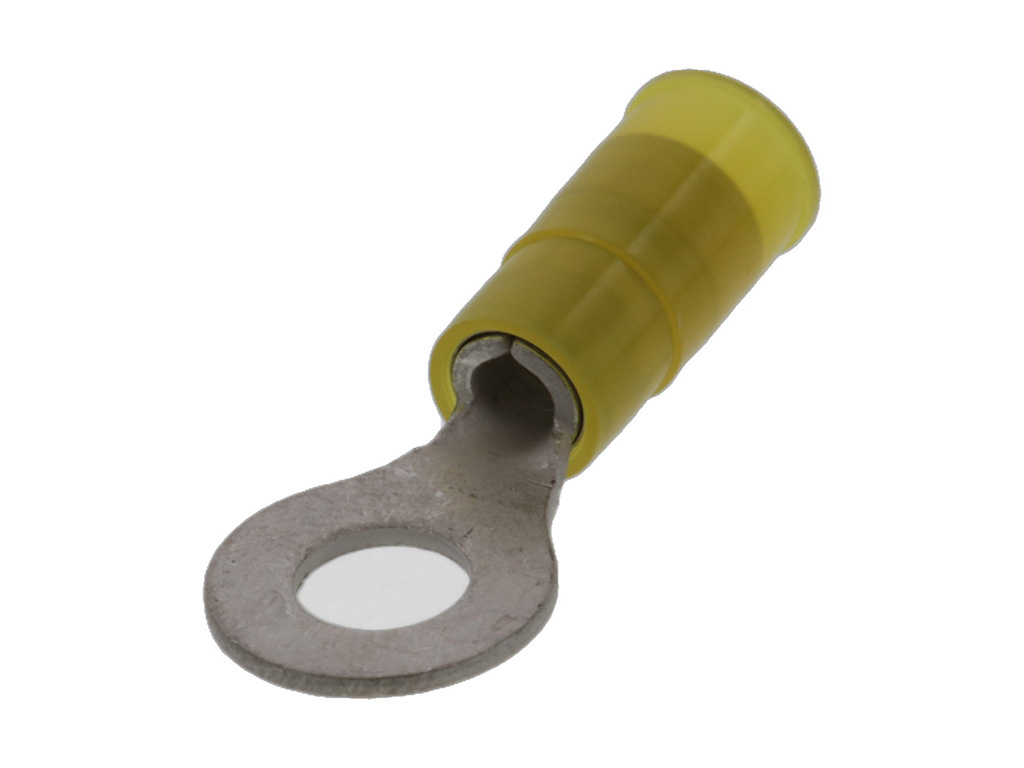

 | Molex 19073-0119 | RING AVIKRIMP (C-530-14) | |
 | Molex 22-01-3027 | KK 254 Crimp Housing, Friction Ramp with Polarizing Ribs, 2 Circuits, Natural | |
 | Molex 39-01-2165 | Mini-Fit Jr. Receptacle Housing, Dual Row, 16 Circuits, UL 94V-0, Natural | |
 | Molex 50-57-9404 | SL Crimp Housing, Single Row, Version G, Positive Latch, 4 Circuits, Black | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 02/04/2022 | 510969 - Change Supplier. Due to global shortages for components used to formulate Nylon Resin our vendor cannot guarantee exact delivery dates of their Nylon resin to molex. to prevent a disruption in the supply chain we've added a 2nd source to contribute to our supply of nylon resin. | Download | |||
| 02/18/2019 | 506408 - Packaging Method/Quantity Changing. This letter is to inform you that the part(s) referenced in this notice will undergo packaging specification changes that may include new container sizes, quantities or changes to the label. No changes will be made to the product as a result of this change. | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 19057-0090 |
| Other Names: | 0190570090 B-537-08 |
