| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19073-0043 |
| Series: | 19073 - Avikrimp |
| Connector Type: | Avikrimp |
| Termination Method: | Crimp or Compression |
| Contact Plating: | Tin |
| Stud Size: | 8 (M4) |
| Insulation Material: | Nylon (PA) |
| Packaging: | Adhesive Tape on Reel |
| Contact Mating Area Plating: | Tin |
| Wire Size: | 18 AWG, 20 AWG, 22 AWG, .25 - 1.5 mm² |
| CSA Agency Certification: | LR18689 |
| UL Agency Certification: | E32244 |
| Wire Insulation Diameter: | 3.56 mm |
| Barrel Type: | Closed |
| Material Flammability Standard: | 94V-2 |
| Part Aliases: | 0190730043 AA-832-08T |
| SKU: | MOL19073-0043 |
19073-0043
| Heilind Number: | MOL19073-0043 |
| Manufacturer: | Molex |
| Manufacturer Number: | 19073-0043 |
| Datasheet: | Product Specification |
| ECAD Model: | |
Description:
Avikrimp Ring Tongue Terminal for 18 to 22 AWG Wire, Stud Size 8 (M4), Length 19.80mm, Mylar Tape Carrier
More >>Specifications
Detailed Description
Introducing the 19073-0043 Avikrimp Ring Tongue Terminal, designed for secure and efficient wire connections. This terminal is suitable for 18 to 22 AWG wires, with a stud size of 8 (M4) and a length of 19.80mm. Featuring a Mylar Tape Carrier for convenience, it is part of the 19073 Avikrimp series. The connector type is Avikrimp, with a versatile termination method of crimp or compression. Contact plating is tin, ensuring reliable conductivity. Constructed with nylon (PA) insulation material, it meets CSA agency certification LR18689 and UL agency certification E32244 for quality assurance. With a wire insulation diameter of 3.56mm and a closed barrel type, this terminal is RoHS compliant and ready for various applications. Upgrade your connectivity with the 19073-0043.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 15-06-0046 | Mini-Fit BMI Plug Housing, 4.20mm Pitch Dual Row with Panel Mount Ears, PA Polyamide Nylon 6/6, UL 94V-0, 4 Circuits |  |
 | Molex 19007-0004 | Flag InsulKrimp Quick Disconnect, Female, for 18-22 (0.80-0.35mm?) Wire, Mylar Tape, Tab 6.35 x 0.81mm | |

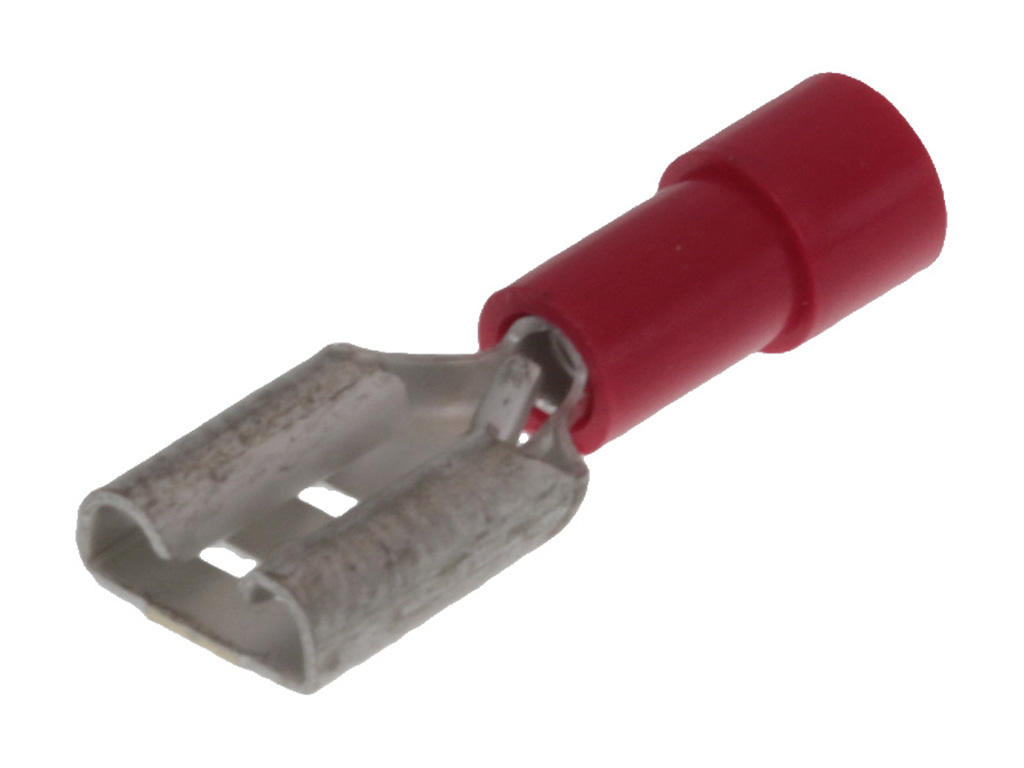

 | Molex 19017-0017 | InsulKrimp Quick Disconnect, Female, for 18-22 (0.80-0.35mm?) Wire, Mylar Tape, Tab 6.35 x 0.81mm | |
 | Molex 19073-0190 | Avikrimp Ring Tongue Terminal for 10 to 12 AWG Wire, Stud Size 1/4 (M6), Length 31.95mm, Mylar Tape Carrier | |

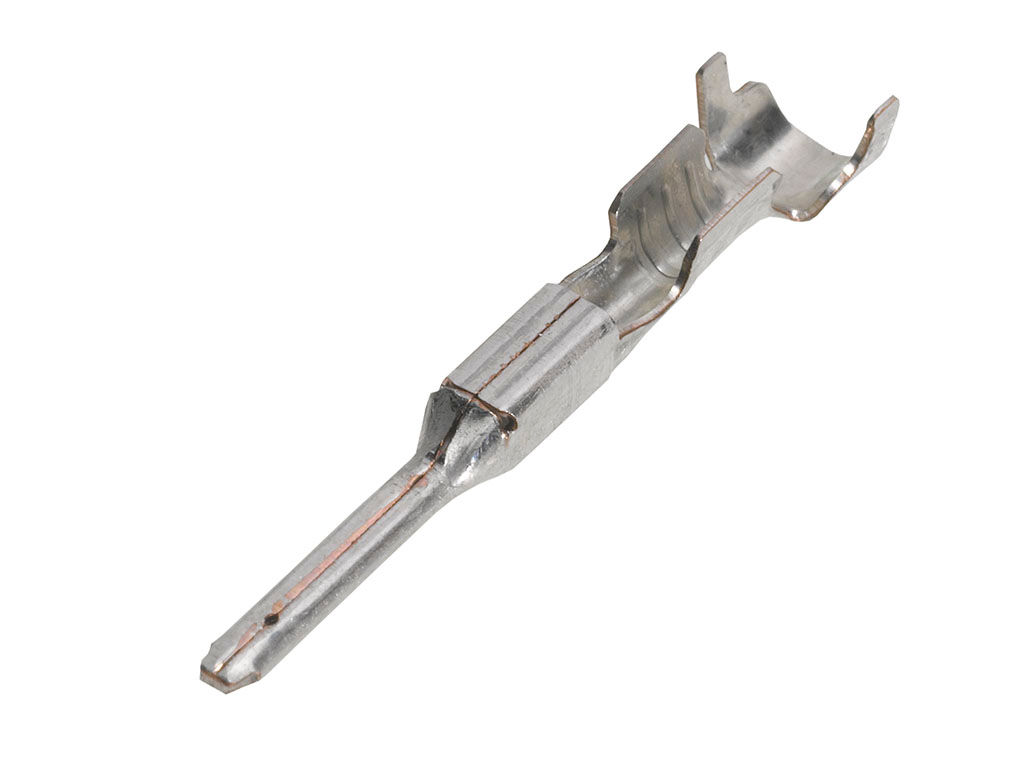

 | Molex 19417-0047 | MX150L Male Terminal for 14-16 AWG Wire, Length 25.40mm | |
 | Molex 19420-0009 | MX150L Female Terminal for 14-16 AWG Wire, Tin Plated | |
 | Molex 19431-0016 | MX150L Male Terminal for 10-12 AWG Wire | |
 | Molex 19432-0013 | MX150L 2 Circuit Female Sealed Receptacle for 10-12 AWG Wire | |
 | Molex 19433-0013 | MX150L 2 Circuit Plug for 10-12 AWG Wire | |
 | Molex 22-01-3027 | KK 254 Crimp Housing, Friction Ramp with Polarizing Ribs, 2 Circuits, Natural | |
 | Molex 39-00-0038 | Mini-Fit Female Crimp Terminal, Tin (Sn) over Copper (Cu) Plated Brass, Double 22+22 or Single 24-18 AWG, Reel | |
 | Molex 43025-0400 | Micro-Fit 3.0 Receptacle Housing, Dual Row, 4 Circuits, UL 94V-0, Low-Halogen, Black | |
 | Molex 43025-0800 | Micro-Fit 3.0 Receptacle Housing, Dual Row, 8 Circuits, UL 94V-0, Low-Halogen, Black | |
 | Molex 43030-0001 | Micro-Fit 3.0 Crimp Terminal, Female, with Tin (Sn) Plated Phosphor Bronze Contact, 24-20 AWG, Reel | |
 | Molex 50-84-1020 | 2.13mm Diameter MLX Power Crimp Housing Plug, 2 Circuits, Natural | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 02/18/2019 | 506408 - Packaging Method/Quantity Changing. This letter is to inform you that the part(s) referenced in this notice will undergo packaging specification changes that may include new container sizes, quantities or changes to the label. No changes will be made to the product as a result of this change. | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 19073-0043 |
| Other Names: | 0190730043 AA-832-08T |
