| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 15-06-0046 |
| Color: | Natural |
| Series: | 42475 - Mini-Fit BMI |
| Amperage: | 13 A |
| Connector Type: | Mini-Fit BMI |
| Gender: | Plug |
| Housing Material: | Nylon |
| Number of Contacts: | 4 |
| Number of Rows: | 2 |
| Mount Type: | Panel Mount |
| Pitch: | 4.2 mm |
| Material: | Nylon |
| Operating Temperature Range: | -40 - 105 °C |
| Circuit Application: | Power |
| Polarized to Mate: | Yes |
| Connector System: | Wire to Board, Wire to Wire |
| Termination Pitch: | 4.2 mm |
| Glow Wire Capable: | No |
| Lock to Mating Part: | No |
| Stackable: | No |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0015060046 42475-0421 |
| SKU: | MOL15-06-0046 |
15-06-0046
| Heilind Number: | MOL15-06-0046 |
| Manufacturer: | Molex |
| Manufacturer Number: | 15-06-0046 |
| Datasheet: | Packaging Specifications |
| ECAD Model: | |
Description:

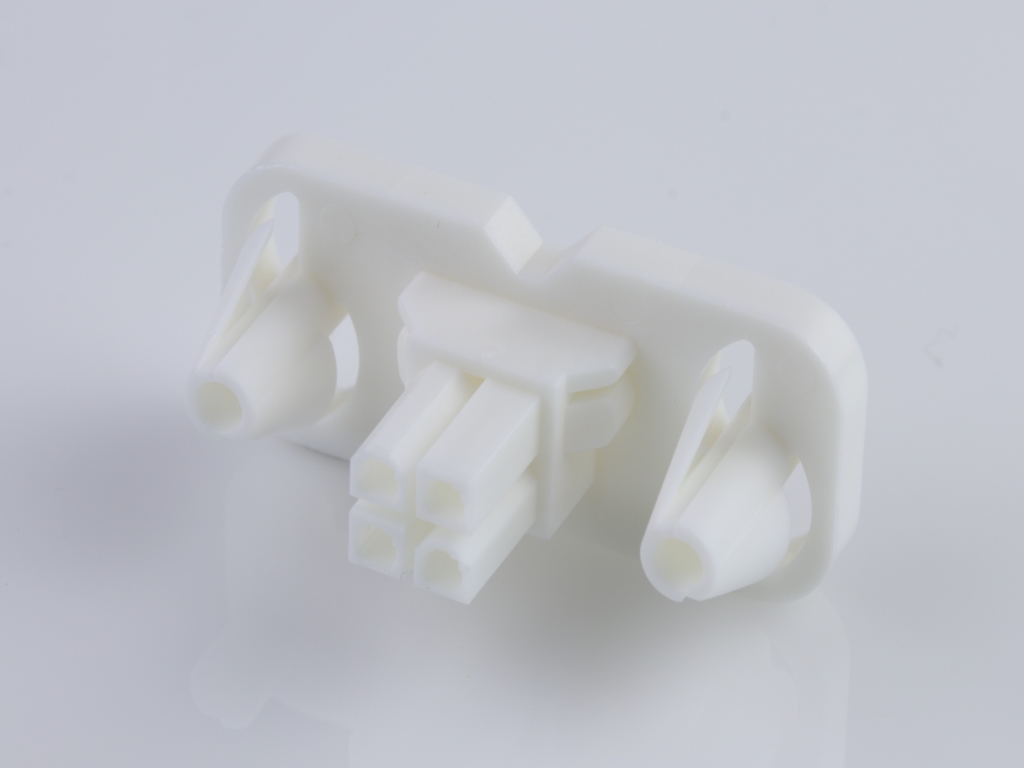

Mini-Fit BMI Plug Housing, 4.20mm Pitch Dual Row with Panel Mount Ears, PA Polyamide Nylon 6/6, UL 94V-0, 4 Circuits
More >>Specifications
Detailed Description
Introducing the Mini-Fit BMI Plug Housing, a versatile and durable connector for your power applications. This housing, part number 15-06-0046, features a 4.20mm pitch with dual rows and convenient panel mount ears for easy installation. Constructed from PA Polyamide Nylon 6/6 with UL 94V-0 certification, it ensures reliable performance even in harsh environments. With 4 circuits and a current rating of 13A, this connector is perfect for high-power applications. Its natural color and compact design make it ideal for a wide range of projects. RoHS compliant and suitable for wire-to-wire or wire-to-board connections, the Mini-Fit BMI Plug Housing is a must-have for your connectivity needs.
