| Attribute | Value |
|---|---|
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19069-0243 |
| Contact Material: | Copper |
| Contact Plating: | Tin |
| Overall Length: | 1.056 in |
| Stud Size: | 3/8 in |
| Terminal Type: | Ring |
| Thickness: | 0.04 in |
| Wire Size: | 12 to 10 AWG |
| Barrel Type: | Closed |
| Insulated: | No |
| SKU: | MOL19069-0243 |
19069-0243
Specifications
Detailed Description
Introducing the 19069-0243 Krimptite Ring Tongue Terminal, designed for secure and efficient wire connections. This terminal is suitable for 10-12 AWG wires, with a 3/8" (M9) stud size and a total length of 26.82mm. Featuring a Mylar Tape Carrier for easy handling, it is part of the 19069 Krimptite series. The connector type is Krimptite, with a versatile termination method of crimp or compression. With tin contact plating and CSA and UL agency certifications, this terminal ensures reliable performance. It is RoHS compliant and comes packaged with adhesive tape on a reel for convenience. Trust in the quality and durability of this Krimptite Ring Tongue Terminal for your electrical connections.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 03-09-1032 | 2.36mm Diameter Standard .093" Pin and Socket Receptacle Housing, 3 Circuits, Single Row, Natural |  |
 | Molex 08-50-0105 | KK 396 Crimp Terminal 2478, 24-18 AWG, Reel, Brass Tin (Sn) | |
 | Molex 10-18-1032 | 2.36mm Diameter Standard .093" Pin and Socket Header, Shrouded, 3 Circuits, 3 Male Terminals | |
 | Molex 19019-0013 | Avikrimp Quick Disconnect, Female, for 18-22 (0.80-0.35mm²) Wire, Mylar Tape, Tab 6.35 x 0.81mm | |
 | Molex 19057-0102 | AviKrimp Ring Tongue Terminal for 16-14 AWG Wire, Nylon, Stud Size 10, 27.10mm Length, Carton | |
 | Molex 19069-0038 | Krimptite Ring Tongue Terminal for 22-18 AWG Wire | |
 | Molex 19069-0212 | Krimptite Ring Tongue Terminal for 12-10 AWG Wire, Stud Size 10 (M5), Length 19.94mm, Mylar Tape Carrier | |
 | Molex 19069-0225 | Krimptite Ring Tongue Terminal for 12-10 AWG Wire, Stud Size 5/16" (M8), Length 24.18mm, Mylar Tape Carrier | |
 | Molex 19070-0136 | InsulKrimp Ring Tongue Terminal for 12-10 AWG Wire, Stud Size 5/16" (M8), Length 31.60mm, Yellow, Carton | |

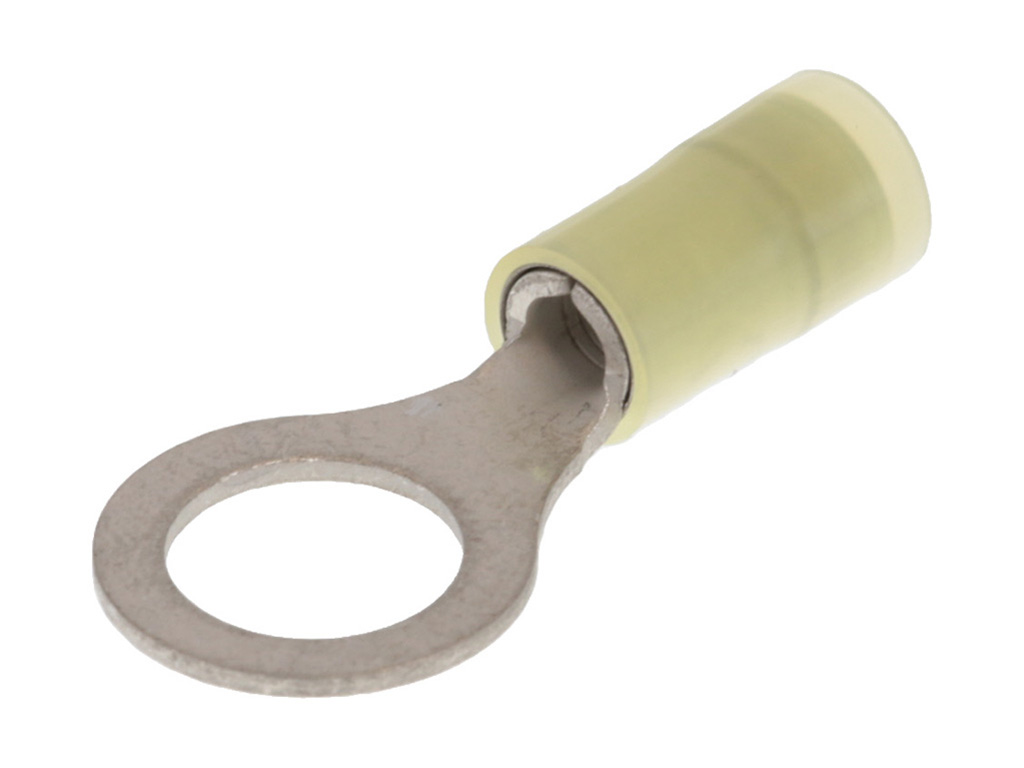

 | Molex 19073-0236 | Avikrimp Ring Tongue Terminal for 12-10 AWG Wire, Stud Size 3/8" (M9), Length 34.59mm, Yellow, Carton | |

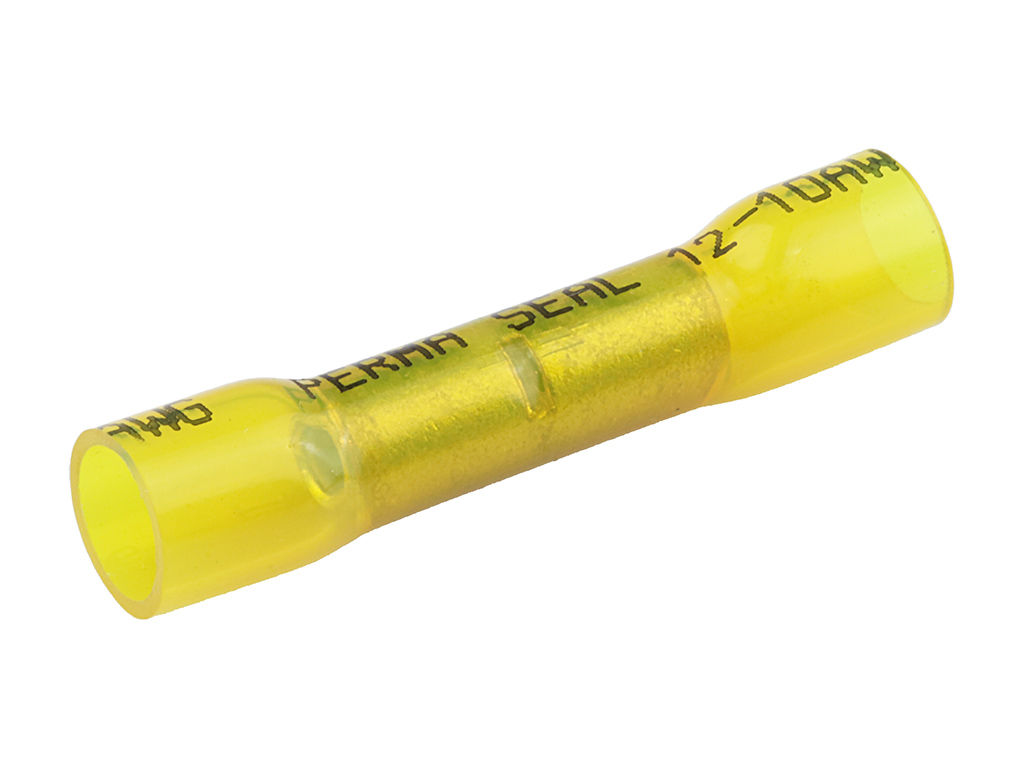

 | Molex 19164-0057 | Perma-Seal Butt Splice for 12-10 AWG Wire, Mylar Tape Carrier | |
 | Molex 19193-0245 | VersaKrimp Ring Tongue Terminal for 6 AWG Wire, Closed-Brazed Barrel, Stud Size 10 (M5), Carton | |
 | Molex 19193-0258 | VersaKrimp Ring Tongue Terminal for 4 AWG Wire, Closed-Brazed Barrel, Stud Size 1/2" (M12), Carton | |
 | Molex 19193-0264 | VersaKrimp Ring Tongue Terminal for 4 AWG Wire, Closed-Brazed Barrel, Stud Size 3/8" (M9), Carton | |
 | Molex 19193-0273 | VersaKrimp Ring Tongue Terminal for 4 AWG Wire, Closed-Brazed Barrel, Stud Size 10 (M5), Carton | |
 | Molex 19431-0016 | MX150L Male Terminal for 12-10 AWG Wire, Tin Plated | |

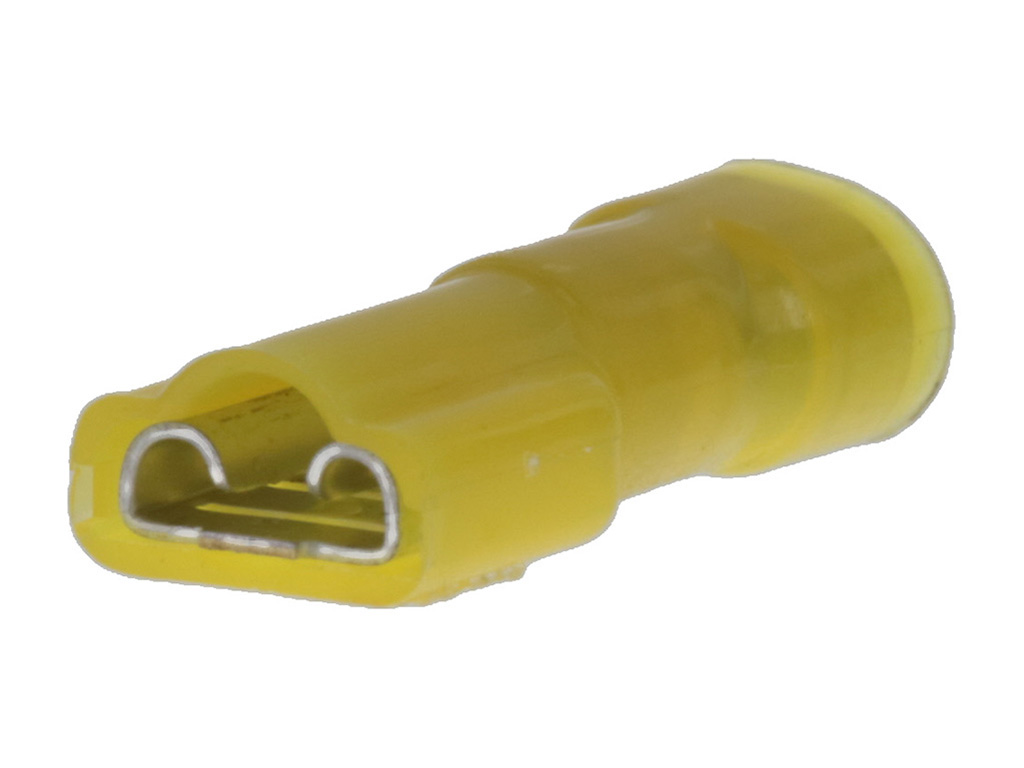

 | Molex 19600-1306 | Avikrimp Quick Disconnect, Female, Fully Insulated, Tab 6.35 x 0.81mm, Adhesive Tape on Reel | |
 | Molex 501647-1000 | 2.00mm Pitch, iGrid Female Crimp Terminal, Tin (Sn) Plating, 26-22 AWG | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 02/18/2019 | 506408 - Packaging Method/Quantity Changing. This letter is to inform you that the part(s) referenced in this notice will undergo packaging specification changes that may include new container sizes, quantities or changes to the label. No changes will be made to the product as a result of this change. | Download | |||
