| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19069-0225 |
| Contact Material: | Copper |
| Contact Plating: | Tin |
| Overall Length: | 0.952 in |
| Stud Size: | 5/16 in |
| Terminal Type: | Ring |
| Thickness: | 0.04 in |
| Wire Size: | 12 to 10 AWG |
| Barrel Type: | Closed |
| Insulated: | No |
| SKU: | MOL19069-0225 |
19069-0225
Specifications
Detailed Description
The 19069-0225 Krimptite Ring Tongue Terminal is designed for secure and efficient connections in electrical applications. Suitable for 10-12 AWG wires, with a stud size of 5/16 (M8), and a length of 24.18mm, this terminal is versatile and reliable. Featuring a Mylar Tape Carrier for easy handling, it is part of the 19069 Krimptite series. The connector type is Krimptite, with a termination method of crimp or compression, and contact plating of tin. With UL and CSA agency certifications, as well as RoHS compliance, this terminal meets industry standards for quality and safety. In stock and available for immediate shipping, it is a dependable choice for your connectivity needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|

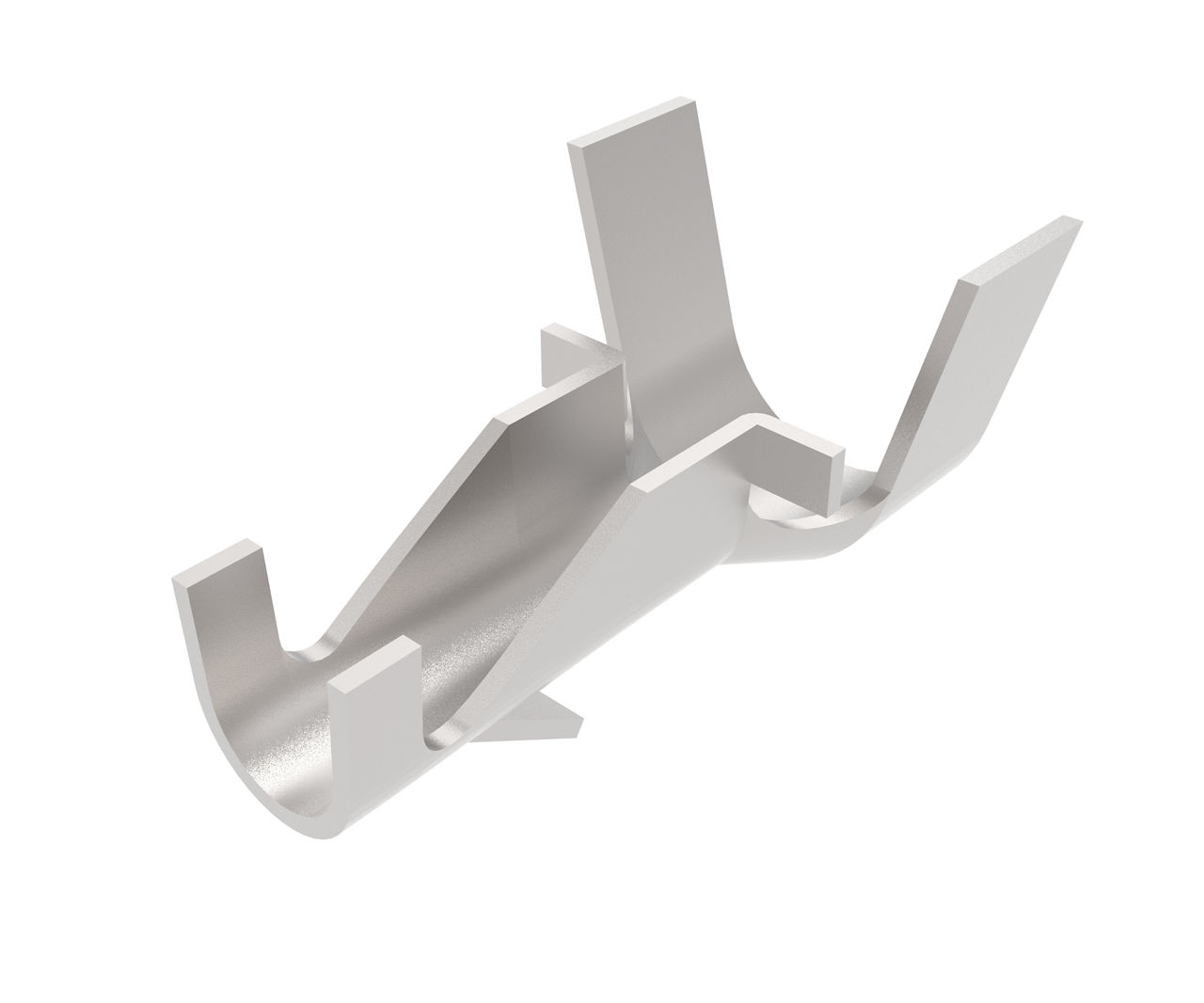

 | Molex 02-07-2101 | Vertical Solder Relief (VSR) Direct-Solder Crimp Terminal, Series 4706, Male, Tin Terminal Progression |  |
 | Molex 03-09-1032 | 2.36mm Diameter Standard .093" Pin and Socket Receptacle Housing, 3 Circuits, Single Row, Natural | |
 | Molex 03-09-2011 | 2.36mm Diameter Standard .093 Pin and Socket Plug Housing, 1 Circuit, Friction Lock, Natural | |
 | Molex 10-18-1032 | 2.36mm Diameter Standard .093" Pin and Socket Header, Shrouded, 3 Circuits, 3 Male Terminals | |
 | Molex 19009-0016 | VibraKrimp Quick Disconnect Flag, Female, for 16-14 AWG Wire, Metal Strip Carrier | |
 | Molex 19016-0043 | Krimptite Quick Disconnect, Female, for 14-16 (2.00-1.30mm²) Wire, Mylar Tape, Tab 6.35 x 0.81mm | |

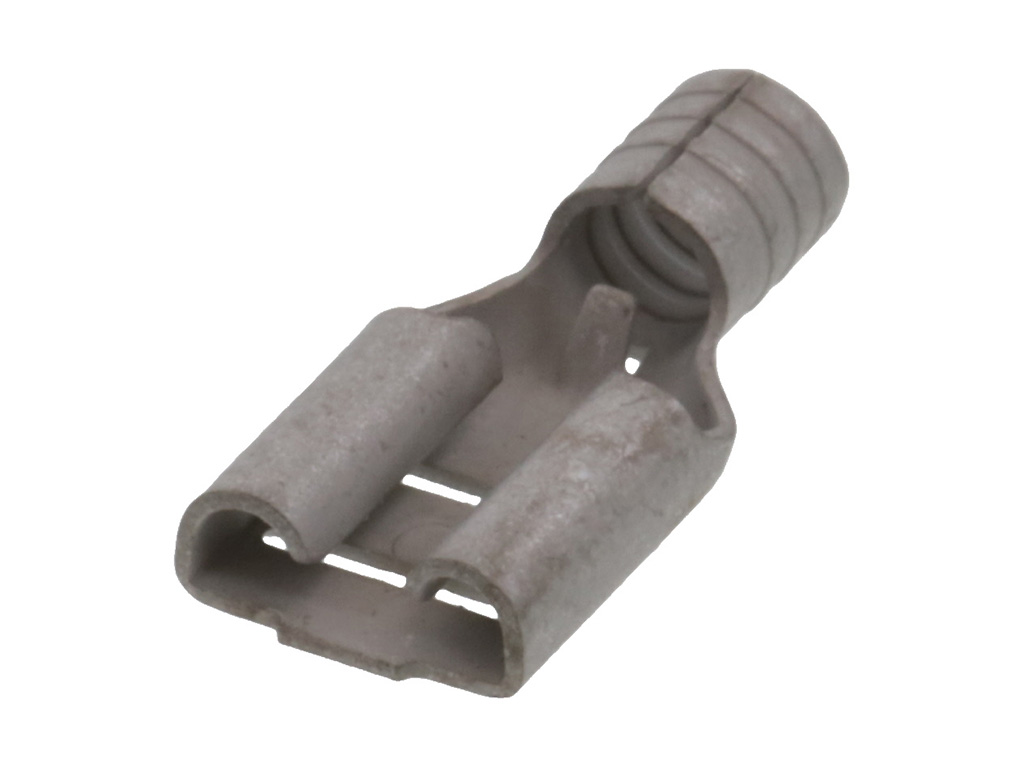

 | Molex 19016-0085 | Krimptite Quick Disconnect, Female, for 12-14 (3.30-2.00mm²) Wire, Box, Tab 6.35 x 0.81mm, Carton | |
 | Molex 19069-0094 | Krimptite Ring Tongue Terminal for 16-14 AWG Wire | |
 | Molex 19069-0107 | Krimptite Ring Tongue Terminal for 16-14 AWG Wire, Carton | |
 | Molex 19069-0212 | Krimptite Ring Tongue Terminal for 12-10 AWG Wire, Stud Size 10 (M5), Length 19.94mm, Mylar Tape Carrier | |
 | Molex 19069-0240 | Krimptite Ring Tongue Terminal for 12-10 AWG Wire, Stud Size 1/4" (M6), Length 26.82mm, Mylar Tape Carrier | |
 | Molex 19069-0243 | Krimptite Ring Tongue Terminal for 12-10 AWG Wire, Stud Size 3/8" (M9), Length 26.82mm, Mylar Tape Carrier | |
 | Molex 19070-0100 | InsulKrimp Ring Tongue Terminal for 16-14 AWG Wire, Stud Size 8 (M4), Length 23.39mm, Blue, Tape | |
 | Molex 19070-0125 | InsulKrimp Ring Tongue Terminal for 12-10 AWG Wire, Stud Size 10 (M5), Length 27.40mm, Yellow, Tape | |
 | Molex 19073-0024 | Avikrimp Ring Tongue Terminal for 22-18 AWG Wire, Stud Size 1/4" (M6), Length 26.90mm, Red, Carton | |

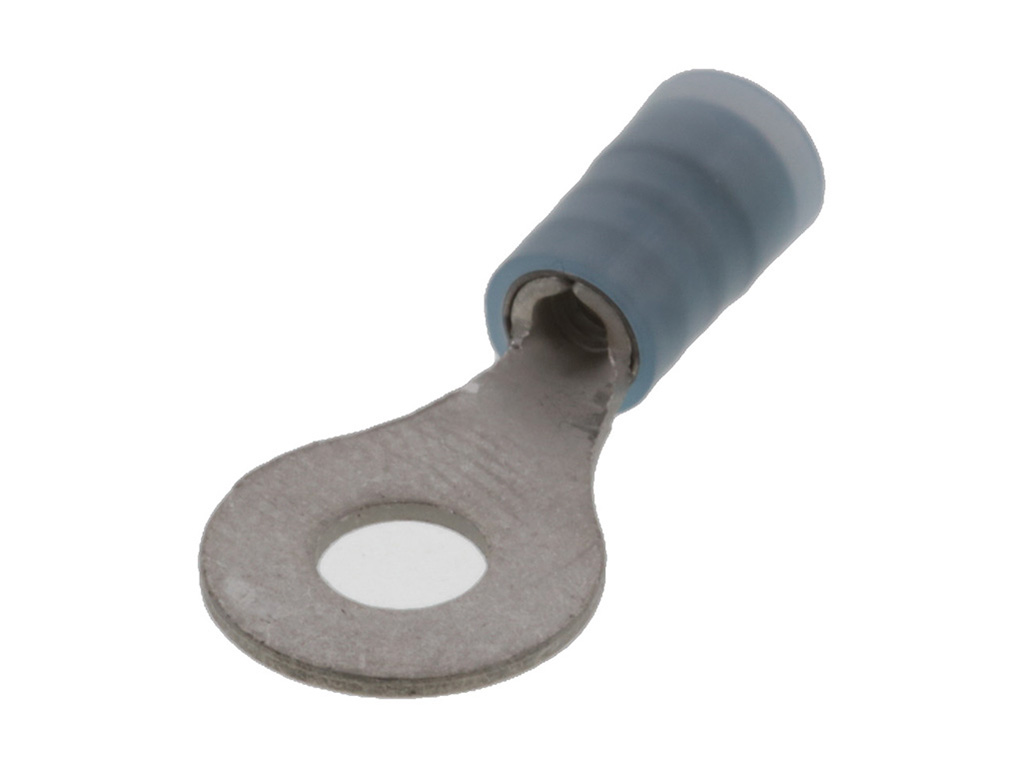

 | Molex 19073-0074 | Avikrimp Ring Tongue Terminal for 16-14 AWG Wire, Stud Size 10 (M5), Length 27.36mm, Blue, Carton | |

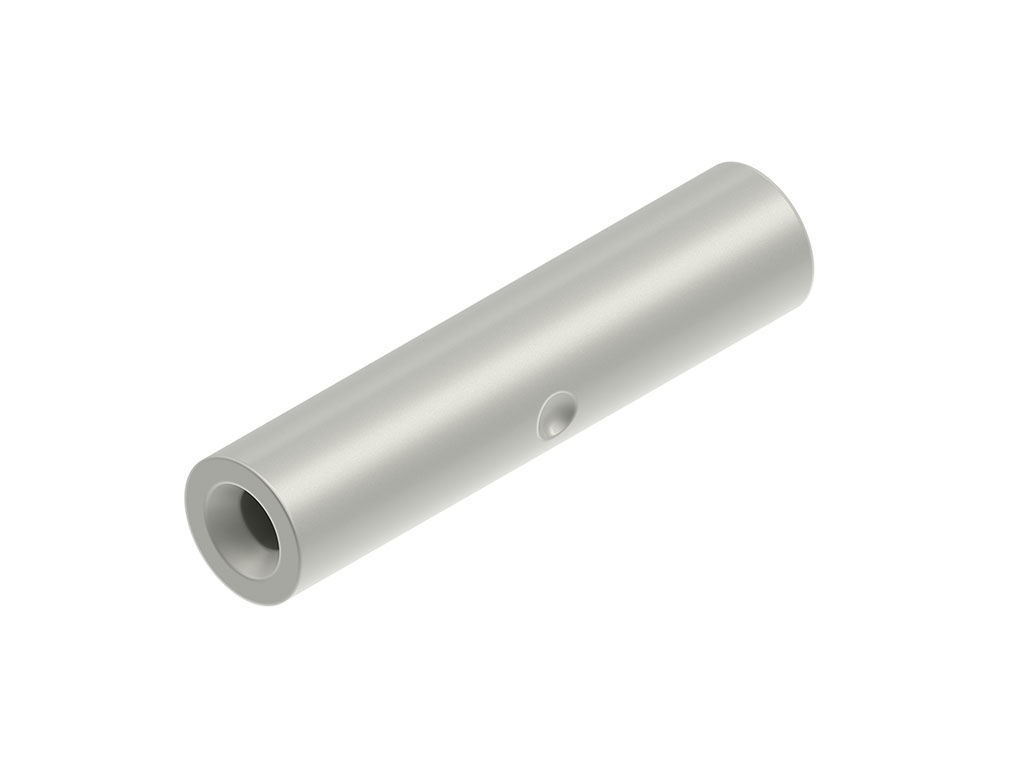

 | Molex 19189-0004 | Krimptite Butt Splice for 22-18 AWG Wire | |
 | Molex 19193-0215 | VersaKrimp Ring Tongue Terminal for 6 AWG Wire, Closed-Brazed Barrel, Stud Size 1/4" (M6), Mylar Tape Carrier | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 02/18/2019 | 506408 - Packaging Method/Quantity Changing. This letter is to inform you that the part(s) referenced in this notice will undergo packaging specification changes that may include new container sizes, quantities or changes to the label. No changes will be made to the product as a result of this change. | Download | |||
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
