19044-0186

ICC Number:	MOL19044-0186
Manufacturer:	Molex
Manufacturer Number:	19044-0186
Datasheet:	Datasheet
ECAD Model:

Description:

Krimptite Ring Tongue Terminal for 16-14 AWG, Stud Size 5/16", 26.82mm Length, Carton

More >>

Specifications

Attribute	Value
Manufacturer:	Molex
Manufacturer Part Number:	Molex 19044-0186
Contact Material:	Copper
Contact Plating:	Tin
Overall Length:	1.056 in
Stud Size:	5/16 in
Terminal Type:	Ring
Thickness:	0.05 in
Wire Size:	16 to 14 AWG
Barrel Type:	Closed
Insulated:	No
SKU:	MOL19044-0186

Detailed Description

Introducing the 19044-0186 Krimptite Ring Tongue Terminal, a reliable solution for secure connections in heavy-duty applications. Designed for 14-16 AWG wires, this terminal features a durable tin contact plating and a 5/16" (M8) stud size for optimal conductivity. With a versatile crimp or compression termination method, it ensures easy installation. The closed barrel design offers added protection, while its compact build is ideal for space-restricted environments. Certified by LR18689 and E32244 for quality assurance, and RoHS compliant for environmental responsibility, this terminal guarantees performance and reliability. Upgrade your connectivity with the 19044-0186 Krimptite Ring Tongue Terminal.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 16-02-0102	SL Crimp Terminal, Series 70058, Female, 24-22 AWG, with Tin (Sn) Plated Contact, Bag
	Molex 19003-0040	InsulKrimp Quick Disconnect, Female, for 14-16 (2.00-1.30mm²), Tab 6.35 x 0.81mm, Blue, Carton

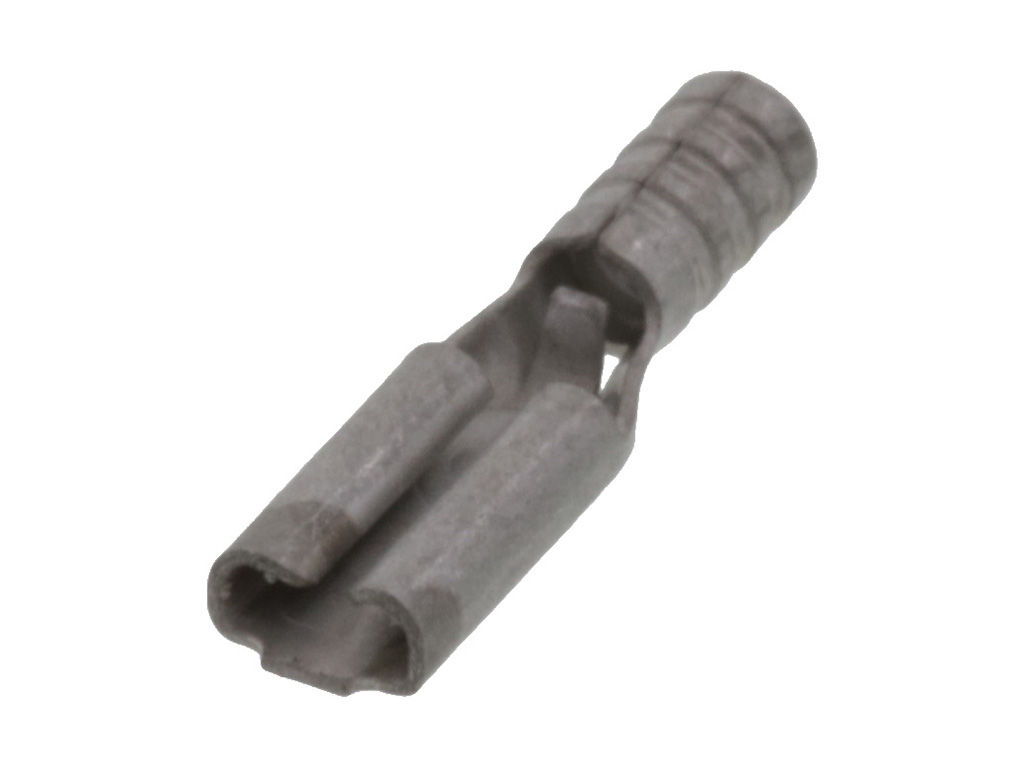

	Molex 19016-0001	Krimptite Quick Disconnect, Female, for 18-22 (0.80-0.35mm²) Wire, Box, Tab 2.79 x 0.51mm, Carton
	Molex 19067-0047	NylaKrimp Funnel Entry Ring Tongue Terminal for 6 AWG Wire, Stud Size 1/4" (M6), Carton

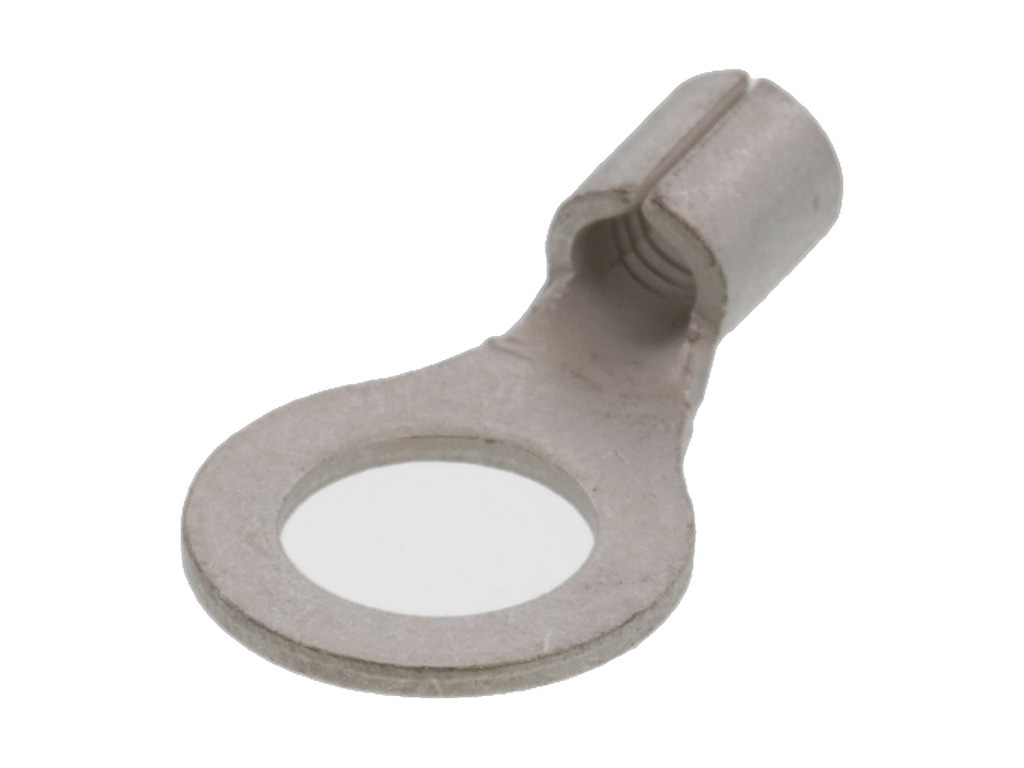

	Molex 19069-0223	Krimptite Ring Tongue Terminal for 12-10 AWG Wire, Stud Size 5/16" (M8), Length 24.18mm, Carton
	Molex 19144-0043	InsulKrimp Spade Tongue Terminal for 12-10 AWG Wire
	Molex 19160-0012	Closed-End Insulated Splice for 22-14 AWG Wire, Clear
	Molex 19164-0003	Perma-Seal Ring Tongue Terminal for 22-18 AWG Wire, Stud Size 10 (M5), Carton

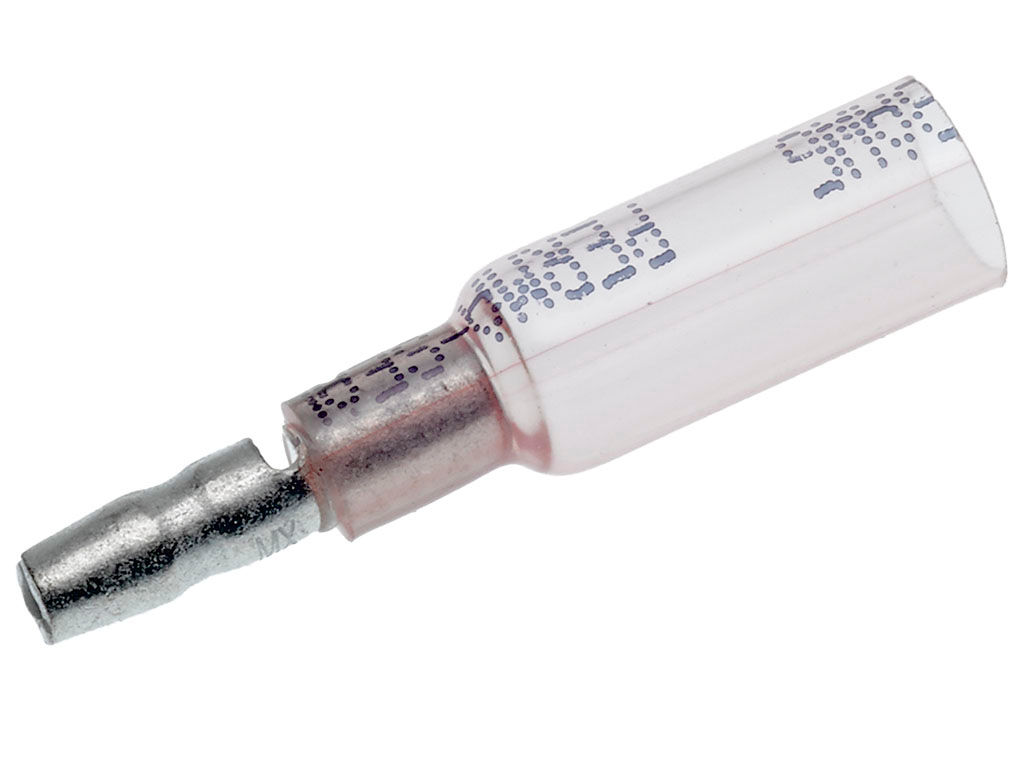

	Molex 19164-0010	Perma-Seal Male Snap Plug for 22-18 AWG Wire, Diameter 3.96mm, Carton
	Molex 19164-0052	Perma-Seal Snap Receptacle for 22-18 AWG Wire, Diameter 3.96mm, Carton
	Molex 19193-0137	VersaKrimp Ring Tongue Terminal for 12-10 AWG Wire, Closed-Brazed Barrel, Stud Size 3/8" (M9), Carton
	Molex 19193-0264	VersaKrimp Ring Tongue Terminal for 4 AWG Wire, Closed-Brazed Barrel, Stud Size 3/8" (M9), Carton
	Molex 19221-0242	Compression Style Ring Tongue Terminal for 1/0 AWG Wire, Stud Size 1/2" (M12), Plated, Carton

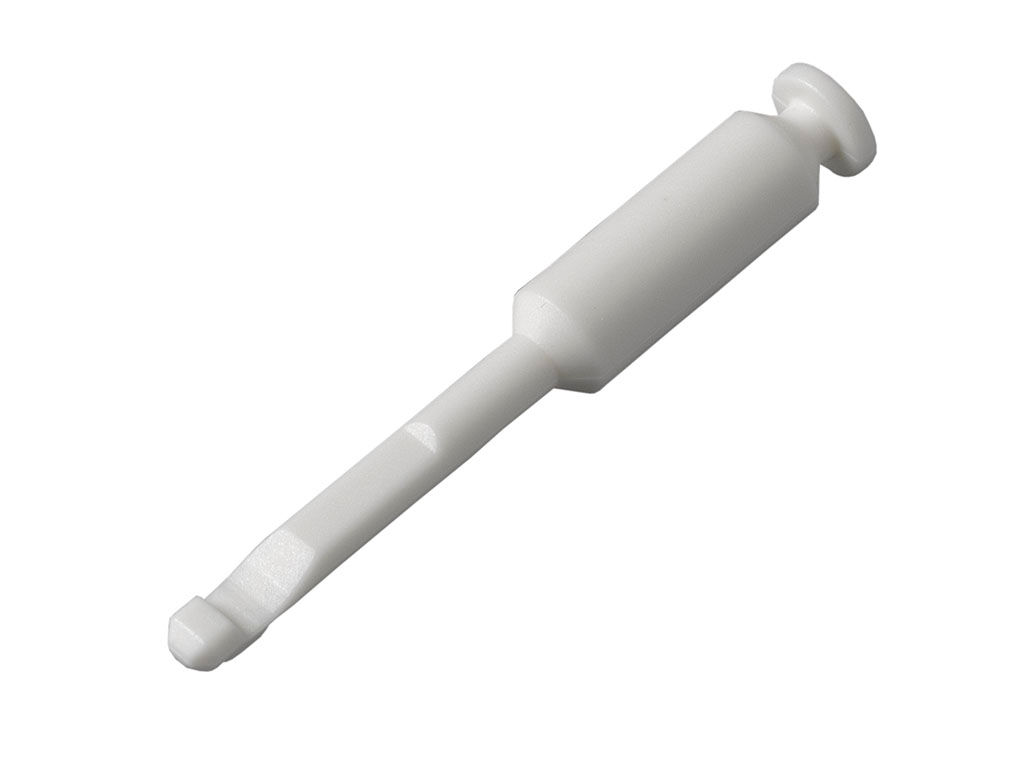

	Molex 19417-0263	MX150L Circuit Voiding Key for 22-14 AWG Housings, 33.97mm Length
