Attribute | Value |
---|---|
Product Category: | |
Manufacturer: | Molex |
Manufacturer Part Number: | Molex 19016-0001 |
Series: | 19016 - Krimptite |
Connector Type: | Krimptite, Quick Disconnect |
Gender: | Female |
Contact Material: | Brass |
Contact Plating: | Tin |
Material: | Brass |
Insulation Material: | None |
Compatible Tab Width: | 2.79mm |
Compatible Tab Thickness: | 0.51mm |
Orientation: | Straight |
Insulation Type: | None |
Packaging: | Bag |
Contact Mating Area Plating: | Tin |
Polarized to Mate: | No |
Wire Size: | 18 AWG, 20 AWG, 22 AWG |
CSA Agency Certification: | LR18689 |
UL Agency Certification: | E79133 |
Contact Termination Plating: | Tin |
Glow Wire Capable: | No |
Lock to Mating Part: | No |
Part Aliases: | 0190160001 AA-1131 |
SKU: | MOL19016-0001 |
19016-0001
Specifications
Detailed Description
Introducing the 19016-0001 Krimptite Quick Disconnect, a female connector designed for 18-22 (0.80-0.35mm²) wire. This versatile connector features a durable brass construction with tin plating, ensuring reliable conductivity. With a compact tab size of 2.79 x 0.51mm, it is compatible with various applications. Certified by CSA (LR18689) and UL (E79133), it meets strict quality standards. RoHS compliant and in stock for immediate shipping, this connector is ideal for a wide range of industries, from automotive to appliances. Upgrade your connectivity with the 19016-0001 Krimptite Quick Disconnect.
Frequently Bought Together
Product | Part # | Description | Stock |
---|---|---|---|
![]() | Molex 19002-0034 | Avikrimp Fully Insulated Quick Disconnect, Female, for 14-16 AWG Wire, Box | ![]() |

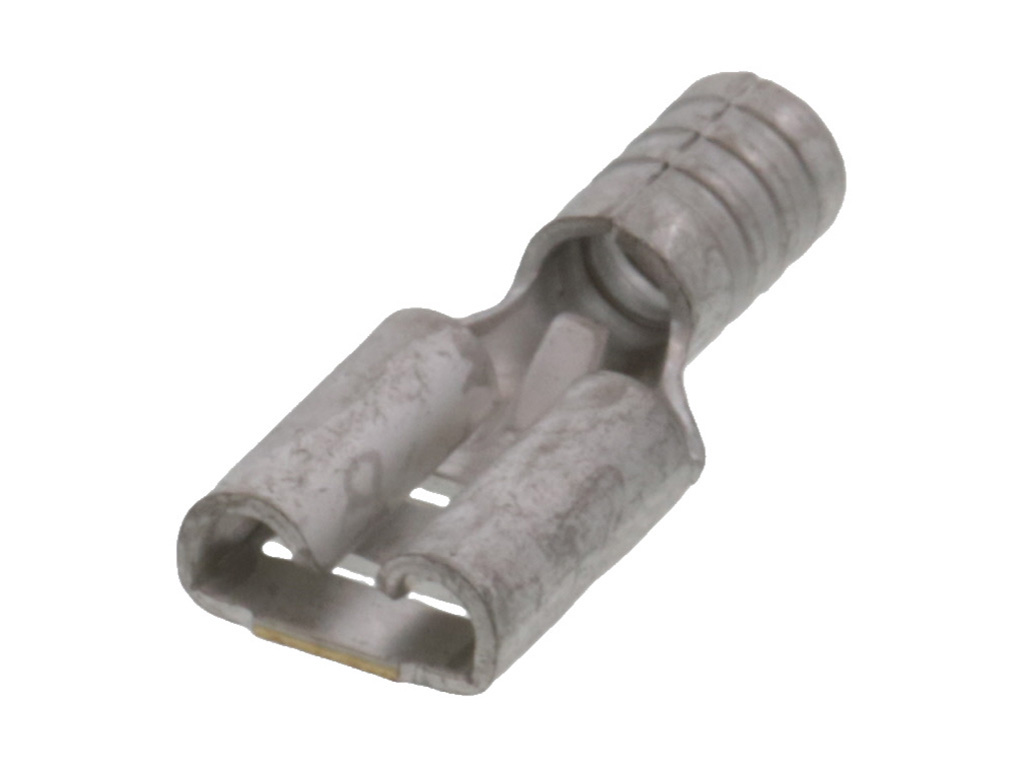

![]() | Molex 19016-0039 | Krimptite Quick Disconnect, Female, for 14-16 (2.00-1.30mm?) Wire, Box, Tab 4.75 x 0.51mm | ![]() |
