| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19003-0044 |
| Color: | Blue |
| Series: | 19003 - InsulKrimp |
| Connector Type: | InsulKrimp, Quick Disconnect |
| Gender: | Female |
| Termination Method: | Crimp or Compression |
| Contact Material: | Brass |
| Contact Plating: | Tin |
| Voltage: | 600 V |
| Material: | Brass, Nylon |
| Insulation Material: | Nylon (PA) |
| Compatible Tab Width: | 6.35mm |
| Compatible Tab Thickness: | 0.81mm |
| Orientation: | Straight |
| Insulation Type: | Full |
| Packaging: | Bag |
| Operating Temperature Range: | -65 - 105 °C |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | 4.064 µm |
| Contact Termination Plating Thickness: | 4.064 µm |
| Polarized to Mate: | No |
| Wire Size: | 14 AWG, 16 AWG |
| UL Agency Certification: | E79133 |
| Contact Termination Plating: | Tin |
| Glow Wire Capable: | Yes |
| Lock to Mating Part: | No |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0190030044 BB-2206VB |
| SKU: | MOL19003-0044 |

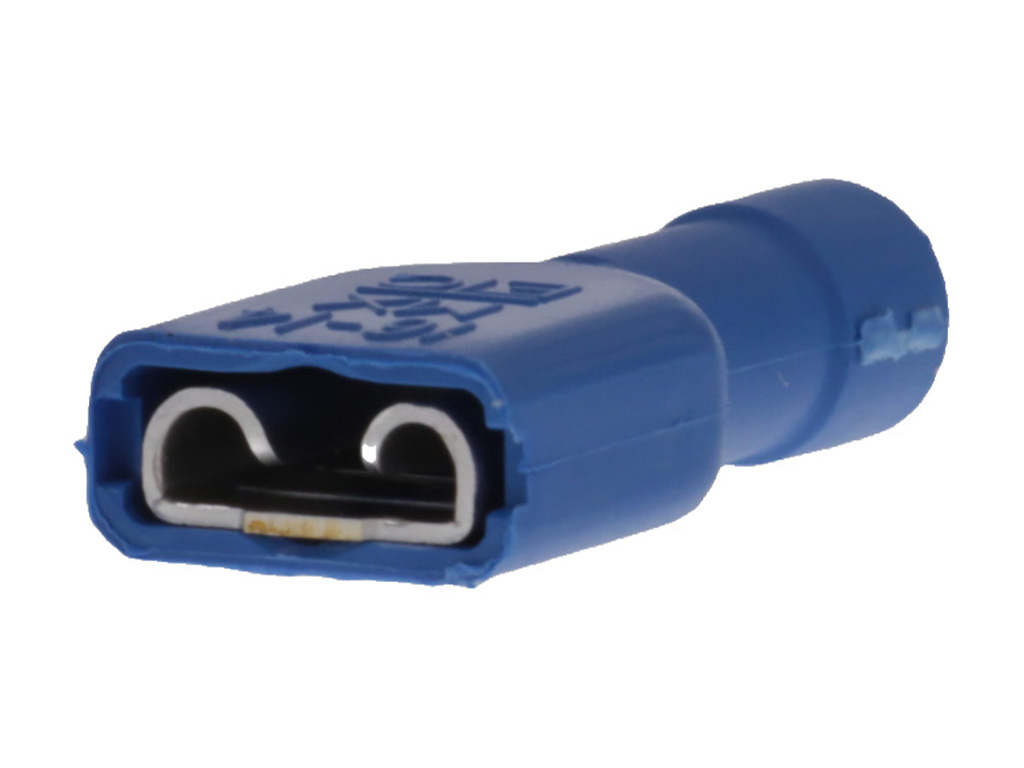

19003-0044
Specifications
Detailed Description
Introducing the 19003-0044 InsulKrimp Quick Disconnect Female Box Terminal, a versatile and reliable solution for your wiring needs. This blue-colored terminal features a 6.35 x 0.81mm tab, constructed with durable brass and tin plating for excellent conductivity and corrosion resistance. With a maximum voltage rating of 600 V, it ensures safe and efficient power transmission. The nylon and brass housing, along with full insulation, offers protection against harsh environmental conditions. Suitable for 14-16 AWG wires, this RoHS-compliant terminal is ideal for various applications in the automotive, electronics, and industrial sectors. Upgrade your connectivity with the 19003-0044 Quick Disconnect Terminal.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|

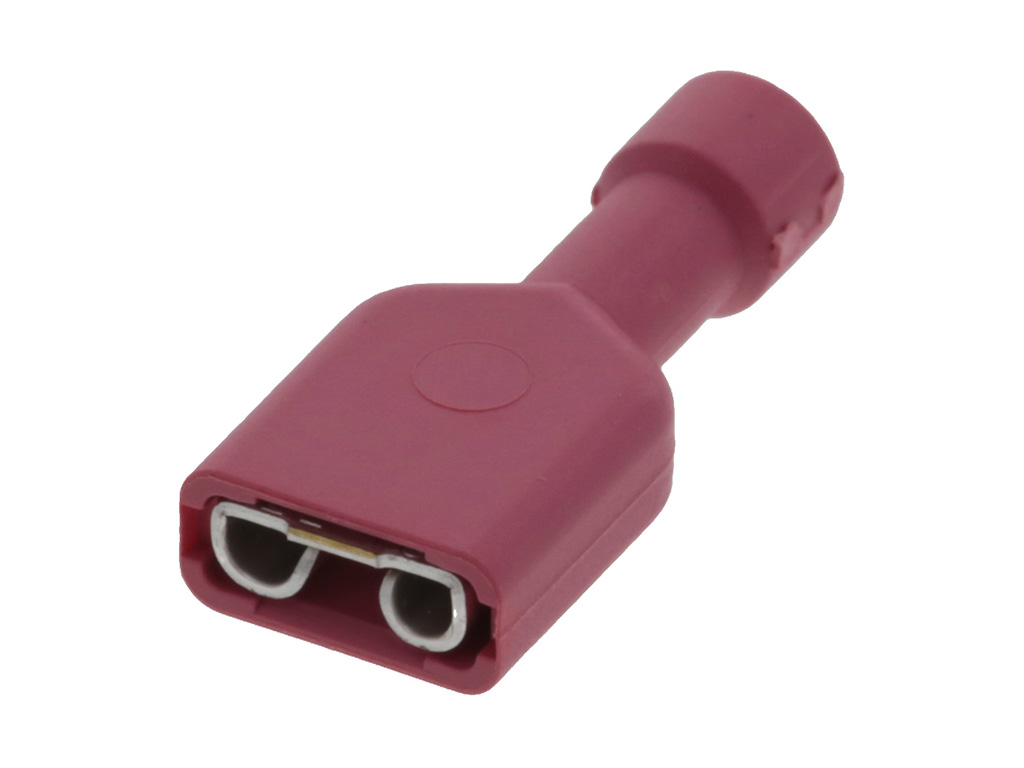

 | Molex 19003-0005 | InsulKrimp Quick Disconnect, Female, Box, Tab 6.35 x 0.81mm |  |
 | Molex 19099-0033 | InsulKrimp Snap Spade for 16-14 AWG Wire, Stud Size 8 (M4), Mylar Tape Carrier, Length 22.12mm, Blue | |
 | Molex 19099-0034 | InsulKrimp Snap Spade Terminal for 14-16 AWG Wire, Blue | |
 | Molex 19160-0002 | Closed-End Insulated Splice for 10-16 AWG Wire | |
 | Molex 22-01-3037 | KK 254 Crimp Housing, Friction Ramp with Polarizing Ribs, 3 Circuits, Natural | |

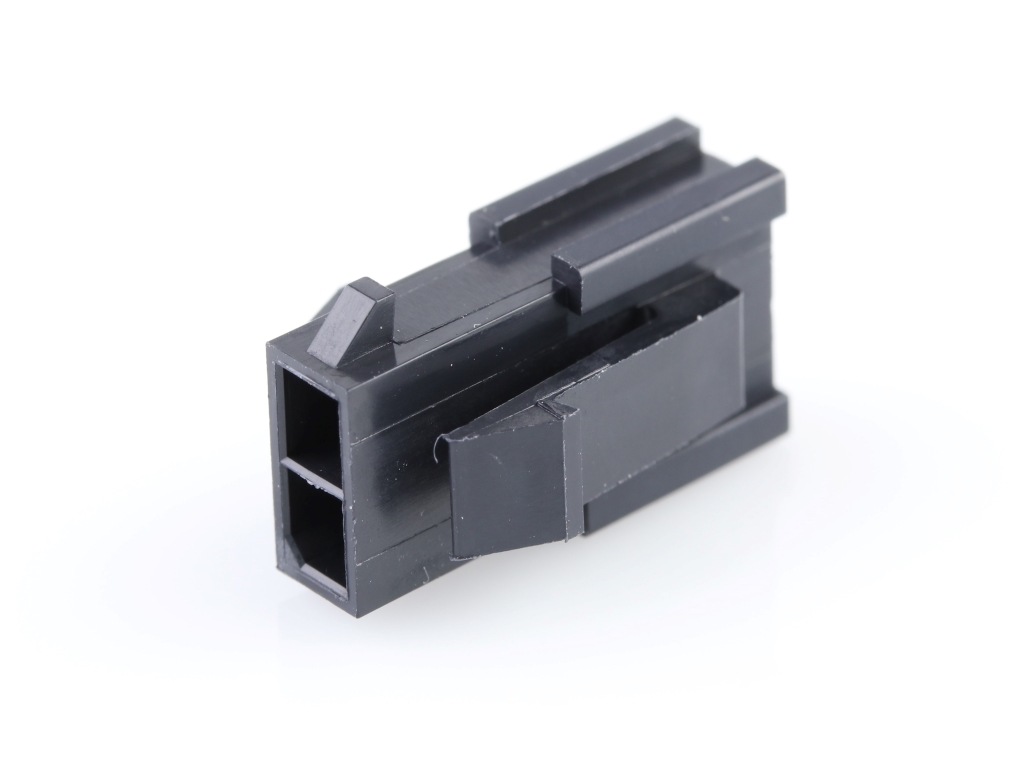

 | Molex 43020-0200 | Micro-Fit 3.0 Plug Housing, Dual Row, 2 Circuits, UL 94V-0, Panel Mount Ears, Low-Halogen, Black | |
 | Molex 43061-0006 | 3.96mm Pitch SPOX Housing, 6 Circuits, Natural | |
 | Molex 43645-0200 | Micro-Fit 3.0 Receptacle Housing, Single Row, 2 Circuits, UL 94V-0, Low-Halogen, Black | |
 | Molex 43645-0300 | Micro-Fit 3.0 Receptacle Housing, Single Row, 3 Circuits, UL 94V-0, Low-Halogen, Black | |

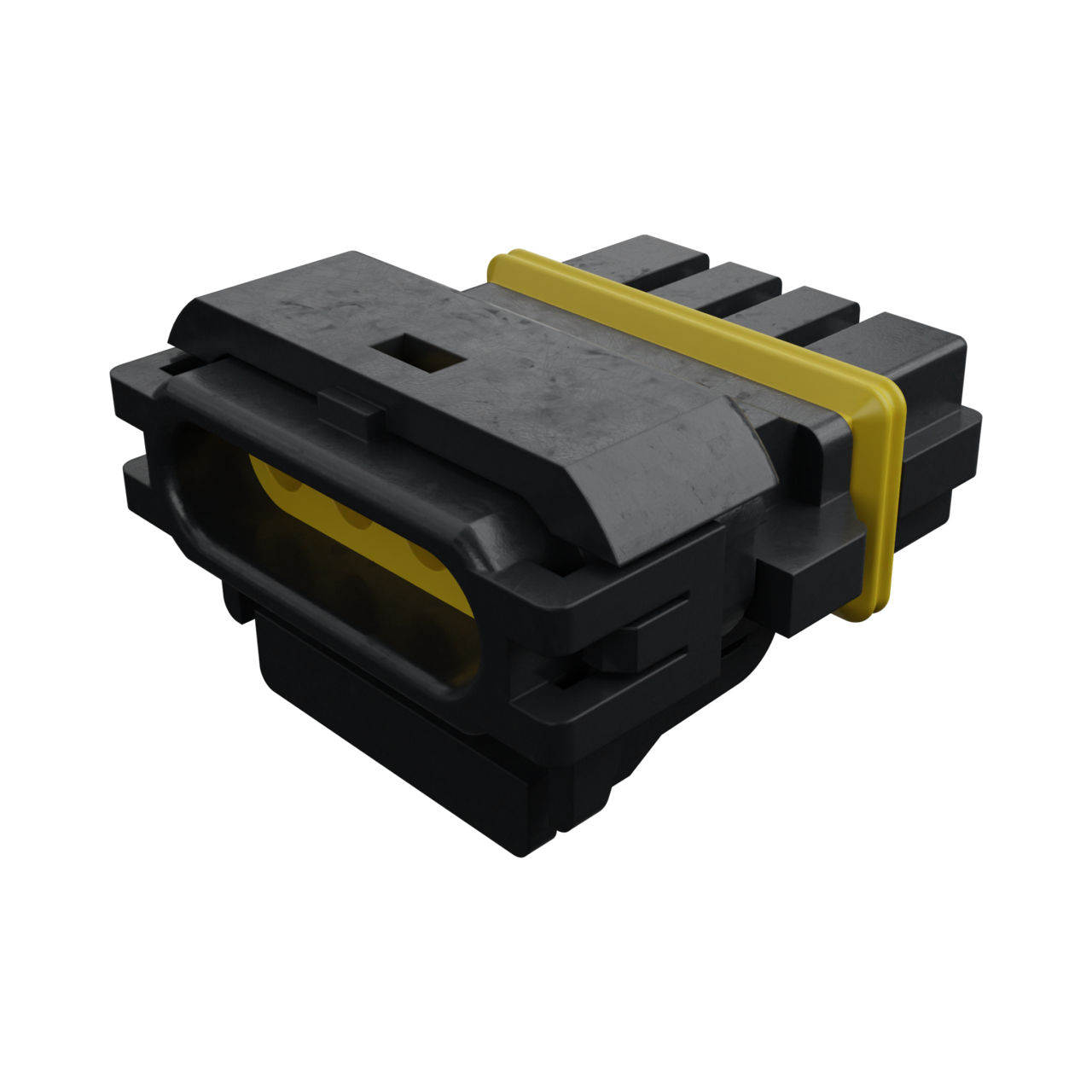

 | Molex 52117-0411 | Mizu-P25 2.50mm Pitch Waterproof Wire-to-Wire Receptacle Housing, 4 Circuits, Black | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 11/30/2020 | 509168 - Change to Product. our current flame-retardant nylon resin supplier (ascend) has obsoleted a resin which we use M344 and replacing it with new resin FR350J. | Download | |||
| 02/18/2019 | 506408 - Packaging Method/Quantity Changing. This letter is to inform you that the part(s) referenced in this notice will undergo packaging specification changes that may include new container sizes, quantities or changes to the label. No changes will be made to the product as a result of this change. | Download | |||
| 05/30/2016 | 500468 - Capacity change or tool replacement. This letter is to inform you that another set of tooling is being added to meet the current and future demands of this product. There will be no changes in the fit, form or function from the additional tooling when compared to the current tooling. | Download | |||
