| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19003-0005 |
| Color: | Red |
| Series: | 19003 - InsulKrimp |
| Connector Type: | InsulKrimp, Quick Disconnect |
| Gender: | Female |
| Termination Method: | Crimp or Compression |
| Contact Material: | Brass |
| Contact Plating: | Tin |
| Voltage: | 600 V |
| Material: | Brass, Nylon |
| Insulation Material: | Nylon (PA) |
| Compatible Tab Width: | 6.35mm |
| Compatible Tab Thickness: | 0.81mm |
| Orientation: | Straight |
| Insulation Type: | Full |
| Operating Temperature Range: | -65 - 105 °C |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | 4.064 µm |
| Contact Termination Plating Thickness: | 4.064 µm |
| Polarized to Mate: | No |
| Wire Size: | 18 AWG, 20 AWG, 22 AWG |
| Contact Termination Plating: | Tin |
| Glow Wire Capable: | Yes |
| Lock to Mating Part: | No |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0190030005 AA-2201VN |
| SKU: | MOL19003-0005 |
19003-0005
| Heilind Number: | MOL19003-0005 |
| Manufacturer: | Molex |
| Manufacturer Number: | 19003-0005 |
| Datasheet: | Product Specification |
| ECAD Model: | |
Specifications
Detailed Description
The 19003-0005 InsulKrimp Quick Disconnect Female Connector in red is a versatile and reliable solution for your crimp or compression termination needs. Constructed with brass contacts plated with tin, this connector ensures excellent conductivity and durability, with a voltage rating of 600 V. The nylon (PA) insulation and full insulation type offer added safety and protection. Suitable for 22 AWG to 18 AWG wires, with a 6.35 x 0.81mm tab, this connector is compatible with various applications. RoHS compliant and glow wire capable, it meets high safety standards. With its straight orientation and easy installation, the 19003-0005 is a must-have for your connectivity projects.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 09-50-8031 | KK 3.96mm Crimp Terminal Housing, Friction Ramp, 3 Circuits, Natural |  |
 | Molex 19003-0024 | InsulKrimp Quick Disconnect, Female, for 18-22 (0.80-0.35mm?), Box, Tab 2.79 x 0.51mm | |
 | Molex 19003-0040 | InsulKrimp Female Quick Disconnect, for 14-16 AWG Wire | |
 | Molex 19003-0044 | InsulKrimp Quick Disconnect, Female, Box, Tab 6.35 x 0.81mm | |
 | Molex 19003-0050 | InsulKrimp Quick Disconnect, Female, for 14-16 (2.00-1.30mm?), Box, Tab 4.75 x 0.51mm | |
 | Molex 19006-0001 | Avikrimp Quick Disconnect, for 18-22 AWG Wire, Female Flag, Tab 6.35 x 0.81mm | |
 | Molex 19007-0073 | InsulKrimp Female Fully Insulated Quick Disconnect Flag for 14-16 AWG Wire, Tab 6.35 x 0.81mm, 94 V-0 Material | |
 | Molex 19160-0002 | Closed-End Insulated Splice for 10-16 AWG Wire | |

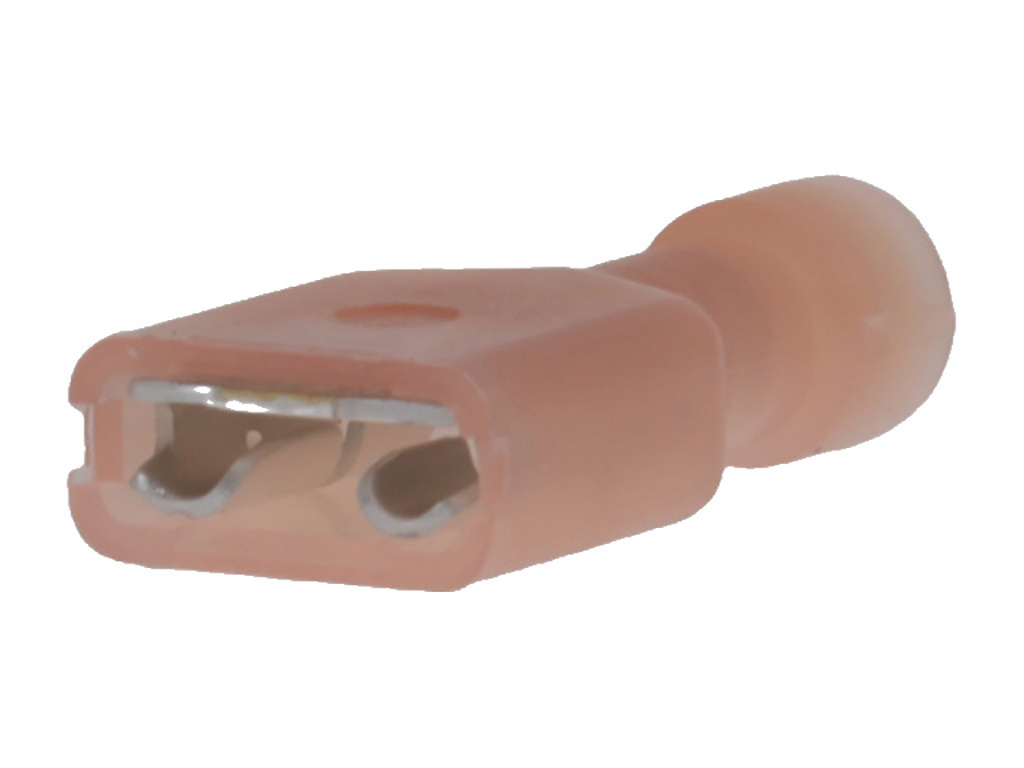

 | Molex 19276-0002 | Quixon Quick Disconnect, InsulKrimp Style, Female, Fully Insulated Red, 18-22 AWG, Loose | |
 | Molex 200456-1213 | Mega-Fit Tangless TPA-Capable Receptacle Housing, Single Row, 3 Circuit, UL 94V-0, Glow-Wire Capable, Black | |
 | Molex 39-01-2025 | Mini-Fit Jr. Receptacle Housing, Dual Row, 2 Circuits, UL 94V-0, Natural | |
 | Molex 39-01-2081 | Mini-Fit Jr. Plug Housing, Dual Row, 8 Circuits, UL 94V-2, with Panel Mounting Ears, Natural | |
 | Molex 39-01-2101 | Mini-Fit Jr. Plug Housing, Dual Row, 10 Circuits, UL 94V-2, with Panel Mounting Ears, Natural | |
 | Molex 50-57-9404 | SL Crimp Housing, Single Row, Version G, Positive Latch, 4 Circuits, Black | |
 | Molex 50-84-1065 | 2.13mm Diameter MLX Power Crimp Housing Plug, 6 Circuits, Natural | |

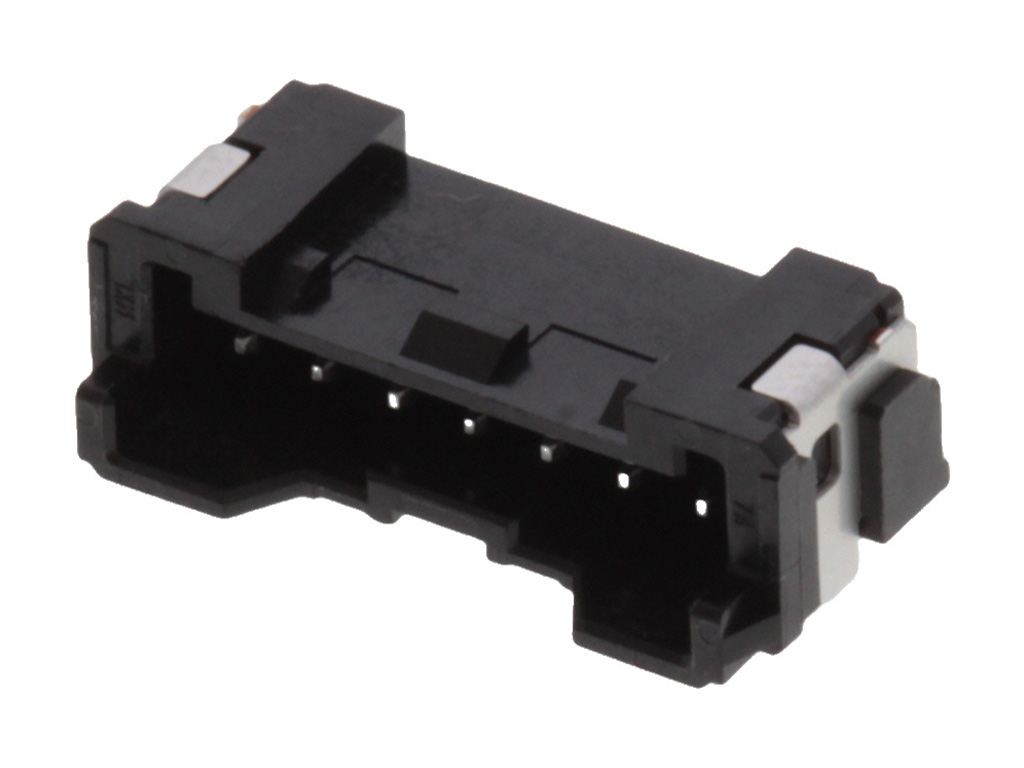

 | Molex 505578-0771 | 2.0W/B SMT RAPLUG 7CKT BLK EM 2.0W/B SMT RAPLUG 2C | |
