| Attribute | Value |
|---|---|
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19003-0050 |
| Contact Material: | Brass |
| Contact Plating: | Tin |
| Overall Length: | 0.78 in |
| Insulation Material: | Nylon |
| Terminal Type: | Quick Disconnect |
| Wire Size: | 16 to 14 AWG |
| Barrel Type: | Closed |
| Insulation Color: | Blue |
| Insulated: | Yes |
| Voltage Rating: | 600 V |
| Operating Temperature: | -65 to 105 °C |
| Mounting Angle: | Straight |
| SKU: | MOL19003-0050 |
19003-0050
Specifications
Detailed Description
Easily and securely terminate wires with our InsulKrimp Quick Disconnect Female connector, designed for 14-16 AWG wires. This blue connector features a durable nylon and brass construction with tin plating, ensuring reliable performance even in high voltage applications up to 600V. The straight orientation and full nylon insulation provide effortless installation and added safety. With a compatible tab width of 4.75mm and a thickness of 0.51mm, this connector offers a perfect fit for various tab sizes. It is RoHS compliant and glow wire capable, making it ideal for a wide range of industrial and commercial uses. Rest assured, this product is in stock and ready to ship. Upgrade your wire termination setup with our InsulKrimp Quick Disconnect Female connector.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 09-50-8043 | KK 3.96mm Crimp Terminal Housing, Friction Ramp, 4 Circuits, Natural |  |
 | Molex 19002-0024 | Avikrimp Fully Insulated Quick Disconnect, Female, for 16-14 AWG Wire, Carton | |
 | Molex 19003-0011 | InsulKrimp Quick Disconnect, Female, for 18-22 (0.80-0.35mm²), Tab 4.75 x 0.51mm, Salmon, Carton | |
 | Molex 19003-0040 | InsulKrimp Quick Disconnect, Female, for 14-16 (2.00-1.30mm²), Tab 6.35 x 0.81mm, Blue, Carton | |

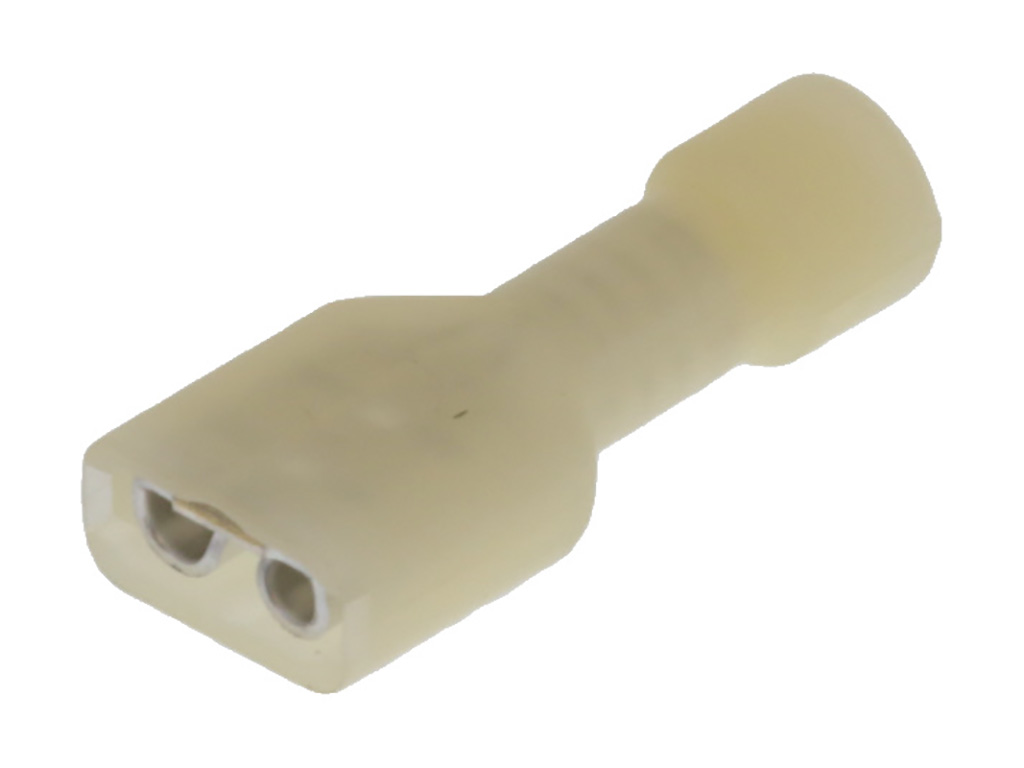

 | Molex 19003-0103 | InsulKrimp Quick Disconnect, Female, for 24-26 (0.20-0.12mm²), Continuous Molded Strip, Tab 4.75 x 0.51mm, Yellow | |
 | Molex 19003-0107 | InsulKrimp Quick Disconnect, Female, for 18-22 (0.80-0.35mm²), Continuous Molded Strip, Tab 4.75 x 0.51mm, Salmon | |
 | Molex 19007-0009 | Flag InsulKrimp Quick Disconnect, Female, for 18-22 (0.80-0.35mm²) Wire, Box, Tab 4.75 x 0.51mm, Carton | |
 | Molex 19007-0040 | Flag InsulKrimp Quick Disconnect, Female, for 10-12 (5.00-3.30mm²) Wire, Box, Tab 6.35 x 0.81mm, Carton | |
 | Molex 19070-0075 | InsulKrimp Ring Tongue Terminal for 16-14 AWG Wire, Stud Size 1/4" (M6), Length 26.97mm, Blue, Carton | |
 | Molex 19070-0086 | InsulKrimp Ring Tongue Terminal for 16-14 AWG Wire, Stud Size 8 (M4), Length 22.10mm, Blue, Carton | |

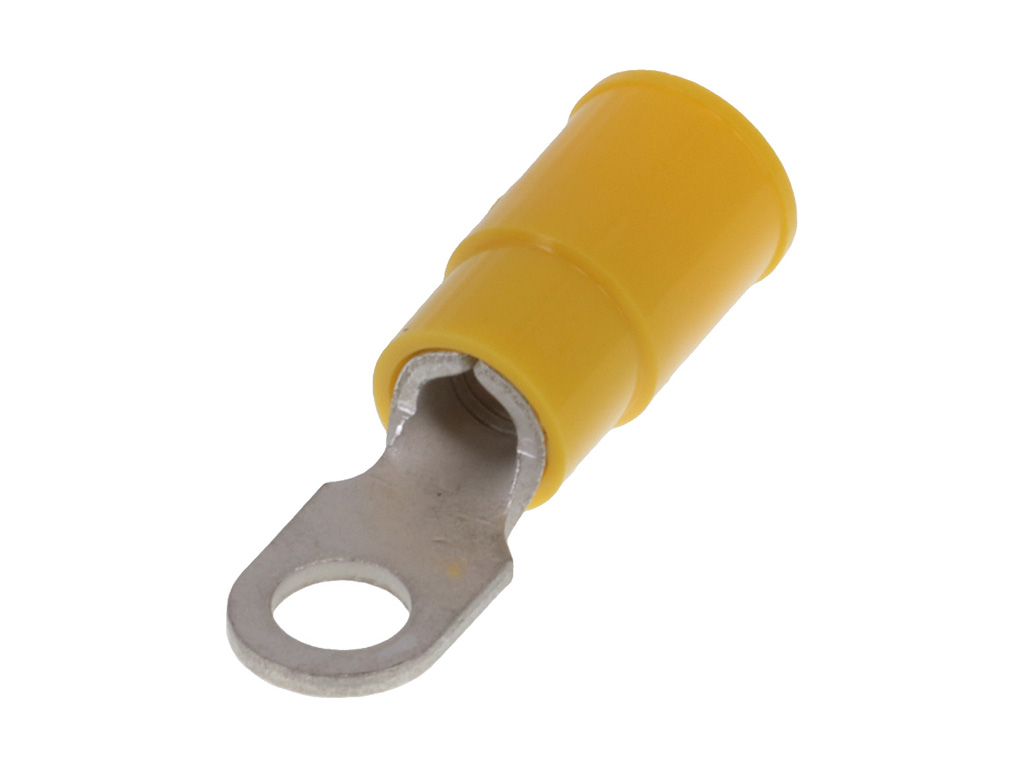

 | Molex 19070-0145 | InsulKrimp Ring Tongue Terminal for 12-10 AWG Wire, Stud Size 8 (M4), Length 26.30mm, Yellow, Carton | |
 | Molex 19193-0298 | VersaKrimp Ring Tongue Terminal for 2 AWG Wire, Closed-Brazed Barrel, Stud Size 3/8" (M9), Carton | |
 | Molex 19600-1302 | Avikrimp Quick Disconnect, Female, Fully Insulated, Tab 4.75 x 0.51mm, Loose, Carton | |
 | Molex 19606-0002 | InsulKrimp Quick Disconnect, Female, for 10-12 (5.26-3.30mm²), Tab 6.35 x 0.81mm, Yellow, Carton | |

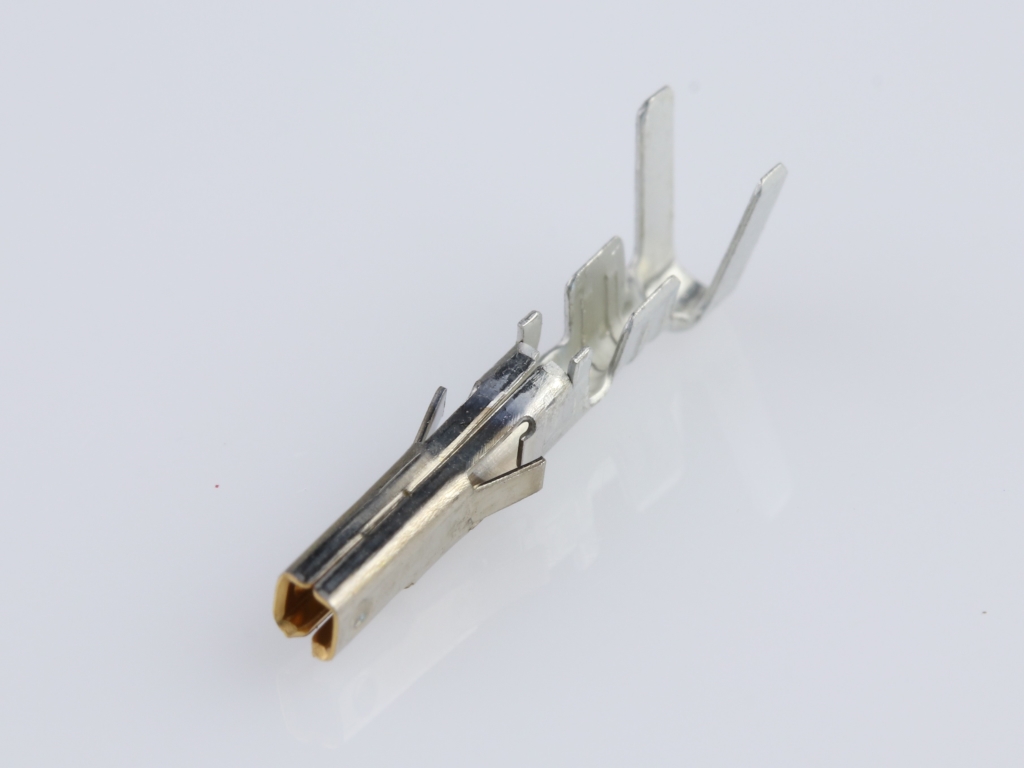

 | Molex 39-00-0139 | Mini-Fit Female Crimp Terminal, Selective Gold (Au) and Selective Tin (Sn) over Nickel (Ni), 28-22 AWG, Reel | |
 | Molex 39-00-0428 | Mini-Fit Female Crimp Terminal, Selective Gold (Au) and Selective Tin (Sn) over Nickel (Ni), 24-18 AWG, Reel | |
 | Molex 39-01-4030 | Mini-Fit Jr. Receptacle Housing, Single Row, 3 Circuits, UL 94V-2, Natural | |
 | Molex 43645-0400 | Micro-Fit 3.0 Receptacle Housing, Single Row, 4 Circuits, UL 94V-0, Black | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 02/04/2022 | 510969 - Change Supplier. Due to global shortages for components used to formulate Nylon Resin our vendor cannot guarantee exact delivery dates of their Nylon resin to molex. to prevent a disruption in the supply chain we've added a 2nd source to contribute to our supply of nylon resin. | Download | |||
| 02/18/2019 | 506408 - Packaging Method/Quantity Changing. This letter is to inform you that the part(s) referenced in this notice will undergo packaging specification changes that may include new container sizes, quantities or changes to the label. No changes will be made to the product as a result of this change. | Download | |||
| 01/08/2018 | 502811 - Capacity change or tool replacement. This letter is to inform you that another set of tooling is being added to meet the current and future demands of this product. There will be no changes in the fit, form or function from the additional tooling when compared to the current tooling. | Download | |||
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
