19002-0028

ICC Number:	MOL19002-0028
Manufacturer:	Molex
Manufacturer Number:	19002-0028
Datasheet:	Datasheet
ECAD Model:

Description:

Avikrimp Fully Insulated Quick Disconnect, Female, for 16-14 AWG Wire, Carton

More >>

Specifications

Attribute	Value
Manufacturer:	Molex
Manufacturer Part Number:	Molex 19002-0028
Contact Material:	Brass
Contact Plating:	Tin
Overall Length:	0.8 in
Insulation Material:	Nylon
Terminal Type:	Quick Disconnect
Wire Size:	16 to 14 AWG
Barrel Type:	Closed
Insulation Color:	Blue
Insulated:	Yes
Voltage Rating:	300 V
Operating Temperature:	-65 to 105 °C
Mounting Angle:	Straight
SKU:	MOL19002-0028

Detailed Description

The Avikrimp Fully Insulated Quick Disconnect is a reliable female connector designed for 14-16 AWG wires. With a durable brass construction and tin plating, it offers excellent conductivity and corrosion resistance. Its nylon insulation and full insulation type ensure safe and efficient performance, even in harsh environments. Featuring a straight orientation and a 4.75mm wide tab, it's easy to install in a variety of applications. With a voltage rating of 300V and operating temperature range of -65 to 105°C, this connector is suitable for a wide range of electrical systems. RoHS compliant and glow wire capable, it meets stringent safety standards. Upgrade your wire connections with the Avikrimp Quick Disconnect.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 08-58-0122	KK 396 Crimp Terminal 2478, 24-18 AWG, Bag, Phosphor Bronze, 0.51Âµm Selective Gold (Au)
	Molex 19002-0024	Avikrimp Fully Insulated Quick Disconnect, Female, for 16-14 AWG Wire, Carton
	Molex 19006-0011	Avikrimp Quick Disconnect, Female Flag, for 16-14 AWG (2.00-1.30mm²) Wire, Tab 6.35 x 0.81mm, Blue, Carton
	Molex 19006-0017	Avikrimp Quick Disconnect, Female Flag, for 16-14 AWG (2.00-1.30mm²) Wire, Tab 4.75 x 0.81mm, Blue, Carton
	Molex 19039-0006	Avikrimp Snap Receptacle, for 16-14 AWG Wire, PVC, Fits Male Plug Diameter 3.96mm, Carton
	Molex 19058-0041	Avikrimp Ring Tongue Terminal for 16-14 AWG,, Carton
	Molex 19070-0121	InsulKrimp Ring Tongue Terminal for 12-10 AWG Wire, Stud Size 8 (M4), Length 27.40mm, Yellow, Carton
	Molex 19115-0024	Avikrimp Snap Spade Terminal for 16-14 AWG Wire, Carton
	Molex 19164-0044	Perma-Seal Butt Splice for 16-14 AWG Wire, Carton
	Molex 19164-0050	Perma-Seal Female Quick Disconnect Receptacle for 16-14 AWG Wire, Tab Size 6.35 x 0.81mm, Carton
	Molex 22-28-4023	KK 254 Breakaway Header, Vertical, 2 Circuits, 0.38µm Gold (Au) Plating, Mating Pin Length 6.09mm
	Molex 39-01-2140	Mini-Fit Jr. Receptacle Housing, Dual Row, 14 Circuits, UL 94V-2, Natural

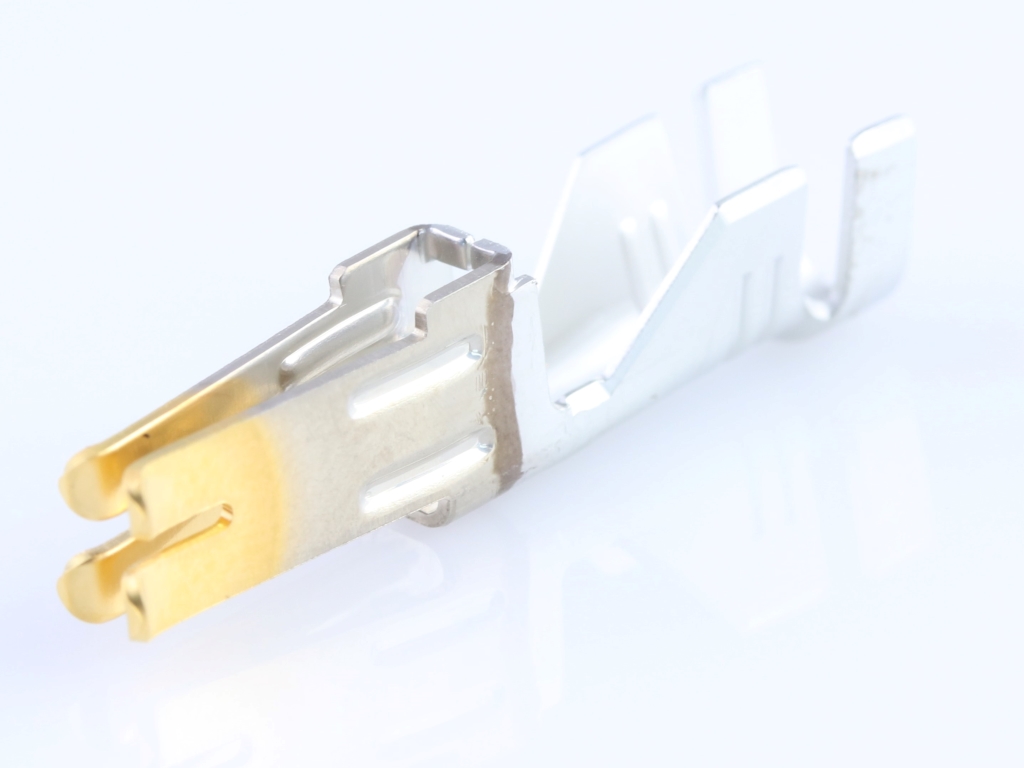

	Molex 42815-0012	Mini-Fit Sr. Crimp Terminal, Female, 12-10 AWG, Gold (Au)
	Molex 43025-0600	Micro-Fit 3.0 Receptacle Housing, Dual Row, 6 Circuits, UL 94V-0, Low-Halogen, Black
	Molex 43045-0422	Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 4 Circuits, with PCB Press-fit Metal Retention Clip, 0.38µm Gold Plating, Glow-Wire Capable, Black
	Molex 44476-3112	Mini-Fit HCS Crimp Terminal, 16 AWG, Copper (Cu) Alloy, Tin (Sn)
	Molex 501646-1600	2.00mm Pitch, iGrid Receptacle Crimp Housing, Dual Row, Positive Lock, 16 Circuits, Natural

Product Change Notice

Effective Date	Description of Change				Download
02/18/2019	506408 - Packaging Method/Quantity Changing. This letter is to inform you that the part(s) referenced in this notice will undergo packaging specification changes that may include new container sizes, quantities or changes to the label. No changes will be made to the product as a result of this change.				Download
