| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19002-0014 |
| Color: | Red |
| Series: | 19002 - Avikrimp |
| Connector Type: | Avikrimp, Quick Disconnect |
| Gender: | Female |
| Termination Method: | Crimp or Compression |
| Contact Material: | Brass |
| Contact Plating: | Tin |
| Voltage: | 300 V |
| Material: | Brass |
| Insulation Material: | Nylon (PA) |
| Compatible Tab Width: | 2.79mm |
| Compatible Tab Thickness: | 0.51mm |
| Orientation: | Straight |
| Insulation Type: | Full |
| Operating Temperature Range: | -65 - 105 °C |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | 4.064 µm |
| Contact Termination Plating Thickness: | 4.064 µm |
| Polarized to Mate: | No |
| Wire Size: | 18 AWG, 20 AWG, 22 AWG |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | 3.17 mm |
| Glow Wire Capable: | Yes |
| Lock to Mating Part: | No |
| Material Flammability Standard: | 94V-2 |
| Part Aliases: | 0190020014 AA-5275T |
| SKU: | MOL19002-0014 |
19002-0014
| Heilind Number: | MOL19002-0014 |
| Manufacturer: | Molex |
| Manufacturer Number: | 19002-0014 |
| Datasheet: | Product Specification |
| ECAD Model: | |
Description:
Avikrimp Fully Insulated Quick Disconnect, Female, for 18-22 AWG Wire, Mylar Tape
More >>Specifications
Detailed Description
The Avikrimp Fully Insulated Quick Disconnect is a reliable female connector designed for 18-22 AWG wires, featuring a durable nylon and brass construction with a red Mylar tape for easy identification. With a straight orientation and a compatible tab width of 2.79mm, this connector offers secure and efficient termination through crimp or compression methods. Its tin-plated brass contacts ensure excellent conductivity, rated for up to 300V. Certified by CSA and UL for safety and quality, this RoHS-compliant connector is suitable for a wide range of applications, with an operating temperature range of -65 to 105 °C. Available in stock, it comes packaged on a convenient adhesive tape reel for easy handling.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 08-50-0113 | KK 254 Crimp Terminal, 22-30 AWG, Hot Tin (Sn) Dip Plating |  |
 | Molex 08-55-0124 | KK High Pressure Crimp Terminal 7879, 22-30 AWG, Reel Selective Gold (Au) | |
 | Molex 09-50-3051 | KK 3.96mm Crimp Terminal Housing, Friction Ramp, 5 Circuits, Natural | |
 | Molex 09-50-3131 | KK 3.96mm Crimp Terminal Housing, Friction Ramp, 13 Circuits, Natural | |
 | Molex 15-38-1024 | 2.54mm Pitch C-Grid Shunt Terminal Housings, Overall Tin (Sn), 2 Circuits, with Open End | |

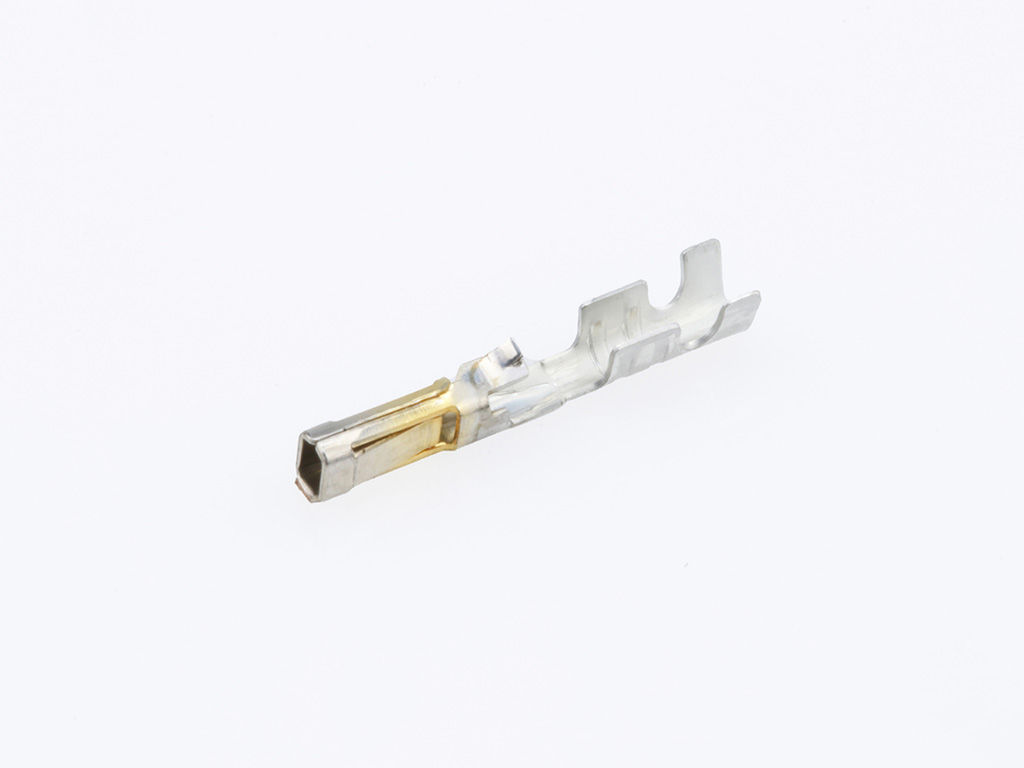

 | Molex 16-02-0083 | SL Crimp Terminal, Series 70058, Female, 24-30 AWG, with 0.76 | |
 | Molex 172256-3104 | Ultra-Fit Tangless Receptacle Housing, 3.50mm Pitch, Single Row, 4 Circuits, Black, Glow-Wire Capable | |
 | Molex 19002-0002 | Avikrimp Fully Insulated Quick Disconnect, Female, for 18-22 AWG Wire, Mylar Tape | |

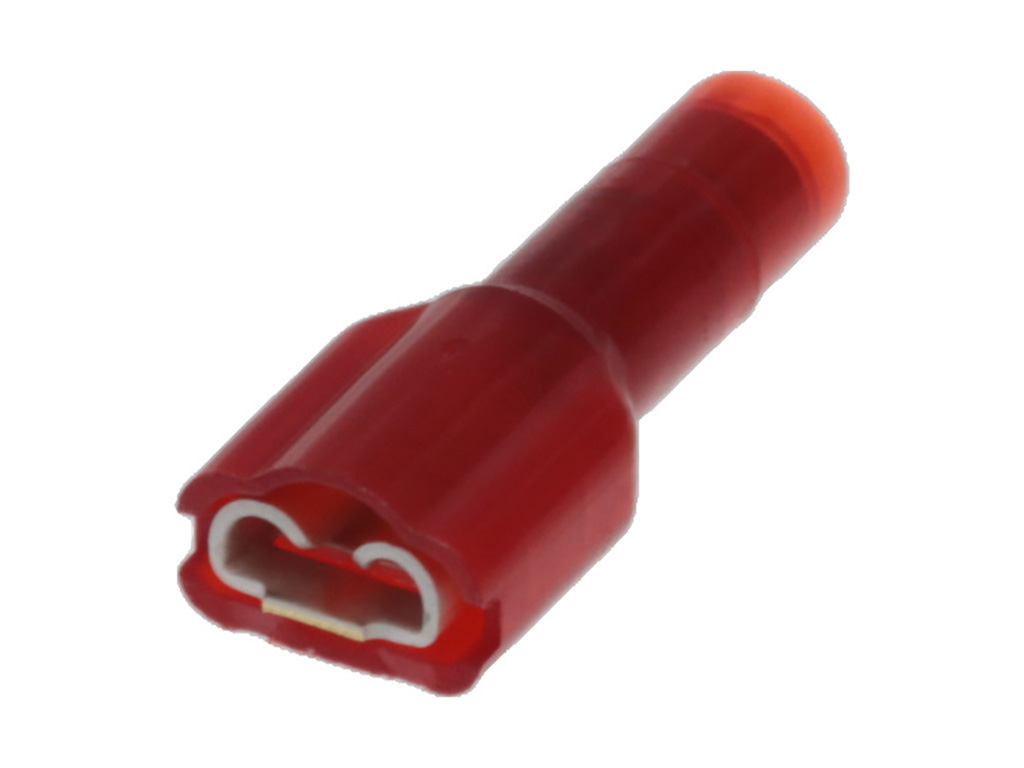

 | Molex 19002-0010 | Avikrimp Fully Insulated Quick Disconnect, Female, for 18-22 AWG Wire, Mylar Tape | |

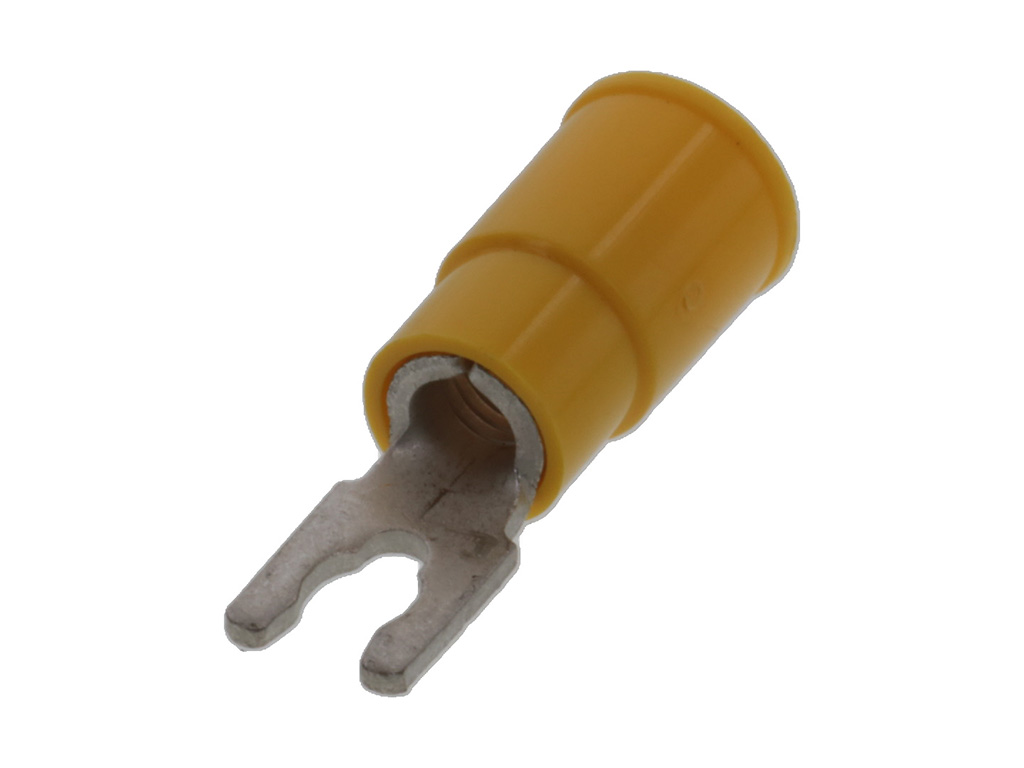

 | Molex 19099-0045 | InsulKrimp Snap Spade Terminal for 10-12 AWG Wire, Yellow | |
 | Molex 22-01-3037 | KK 254 Crimp Housing, Friction Ramp with Polarizing Ribs, 3 Circuits, Natural | |
 | Molex 22-01-3057 | KK 254 Crimp Housing, Friction Ramp with Polarizing Ribs, 5 Circuits, Natural | |
 | Molex 39-00-0038 | Mini-Fit Female Crimp Terminal, Tin (Sn) over Copper (Cu) Plated Brass, Double 22+22 or Single 24-18 AWG, Reel | |

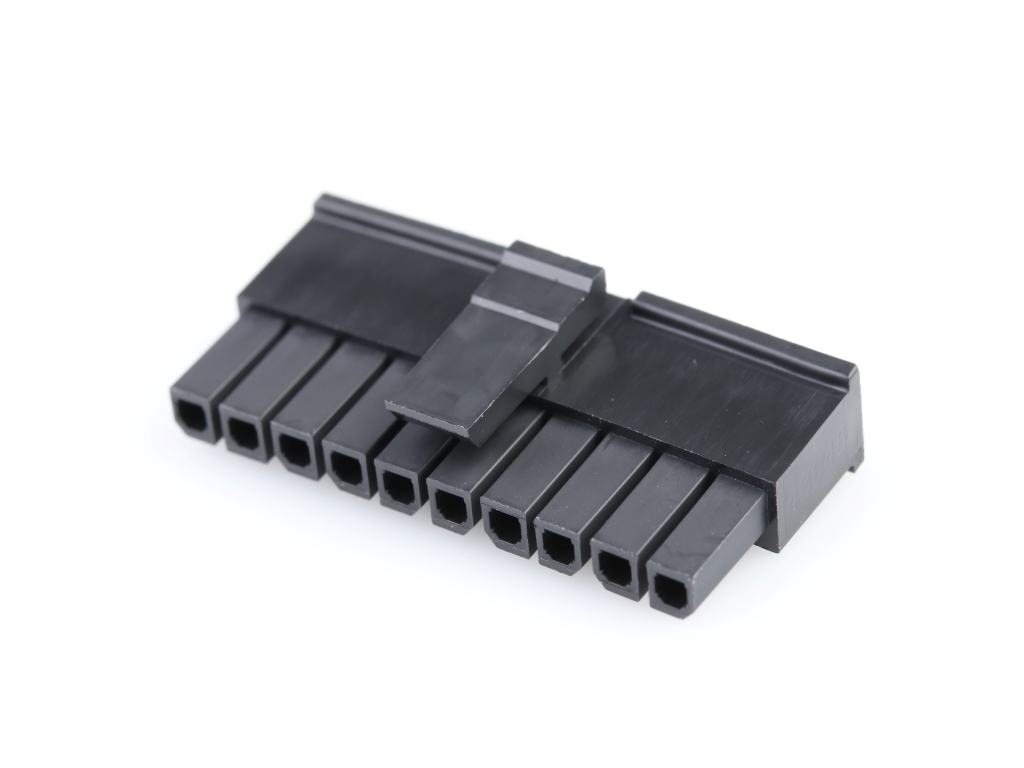

 | Molex 43645-1000 | Micro-Fit 3.0 Receptacle Housing, Single Row, 10 Circuits, UL 94V-0, Black | |

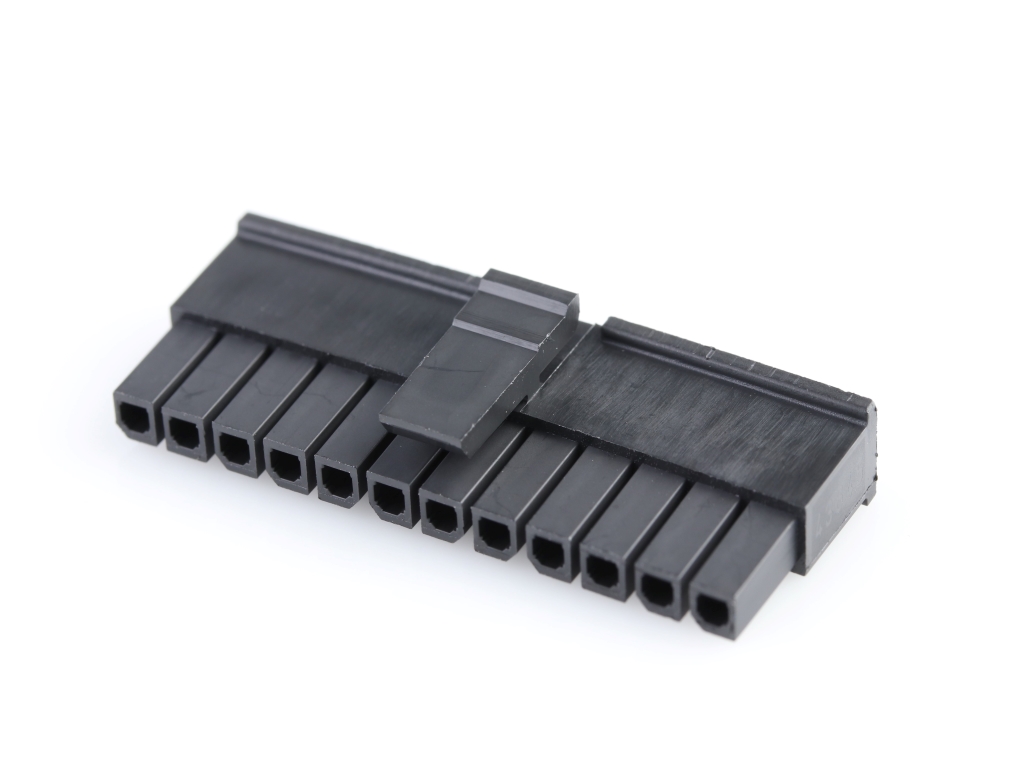

 | Molex 43645-1200 | Micro-Fit 3.0 Receptacle Housing, Single Row, 12 Circuits, UL 94V-0, Black | |
