| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19099-0045 |
| Color: | Yellow |
| Series: | 19099 - InsulKrimp |
| Connector Type: | InsulKrimp |
| Contact Plating: | Tin |
| Stud Size: | 6 (M3.5) |
| Insulation Material: | PVC |
| Contact Mating Area Plating: | Tin |
| Wire Size: | 10 AWG, 12 AWG, 3.3 - 5 mm² |
| Wire Insulation Diameter: | 6.4 mm |
| Barrel Type: | Closed |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0190990045 C-2710-06XT |
| SKU: | MOL19099-0045 |
19099-0045
| Heilind Number: | MOL19099-0045 |
| Manufacturer: | Molex |
| Manufacturer Number: | 19099-0045 |
| Datasheet: | Product Specification |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the 19099-0045, a high-quality InsulKrimp Snap Spade Terminal designed for 10-12 AWG wires. Featuring a vibrant yellow color for easy identification, this terminal is a must-have for your electrical projects. With a durable tin contact plating and PVC insulation material, it ensures reliable performance. Certified by CSA and UL, it meets stringent quality standards. The closed barrel design and 6.4mm wire insulation diameter provide secure connections. Conveniently packaged on a reel, it's perfect for bulk applications. Rest assured, this terminal is RoHS compliant, making it environmentally friendly. Upgrade your crimping arsenal with the 19099-0045.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 171692-0104 | Mega-Fit Receptacle Housing, Dual Row, 4 Circuit, UL 94 V-0, Bag |  |
 | Molex 19002-0014 | Avikrimp Fully Insulated Quick Disconnect, Female, for 18-22 AWG Wire, Mylar Tape | |
 | Molex 19069-0115 | Krimptite Ring Tongue Terminal for 14-16 AWG Wire | |
 | Molex 19070-0014 | InsulKrimp Ring Tongue Terminal for 18-22 AWG Wire | |

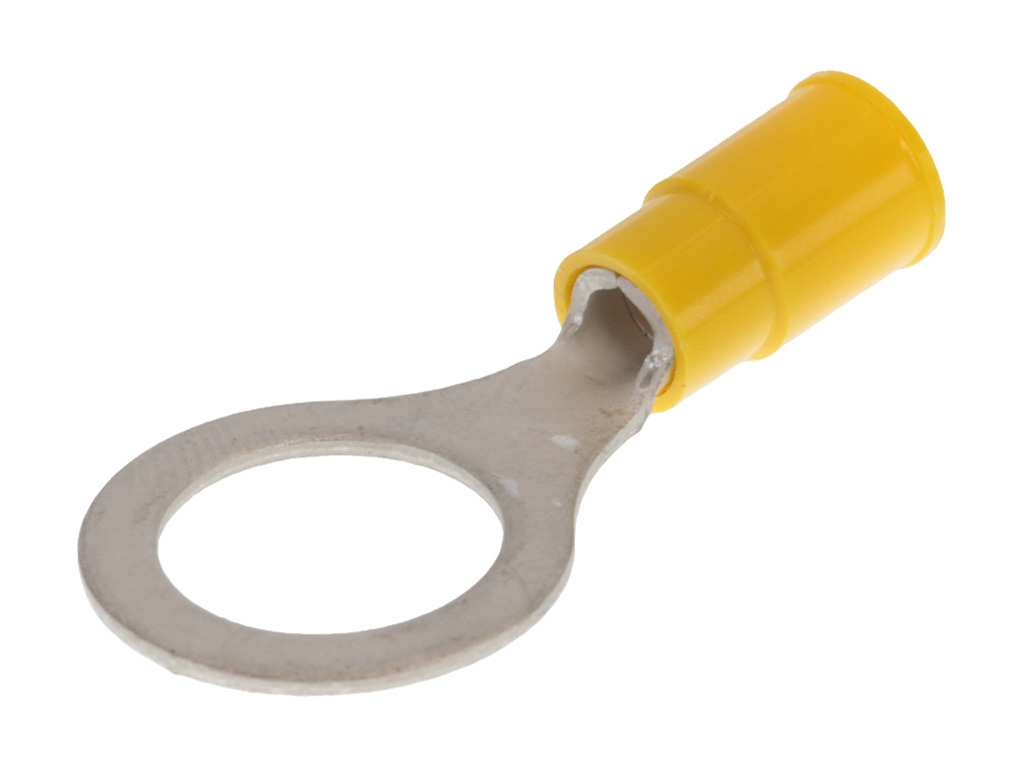

 | Molex 19070-0109 | InsulKrimp Ring Tongue Terminal for 10-12 AWG Wire | |
 | Molex 19164-0044 | Perma-Seal Butt Splice for 14-16 AWG Wire | |

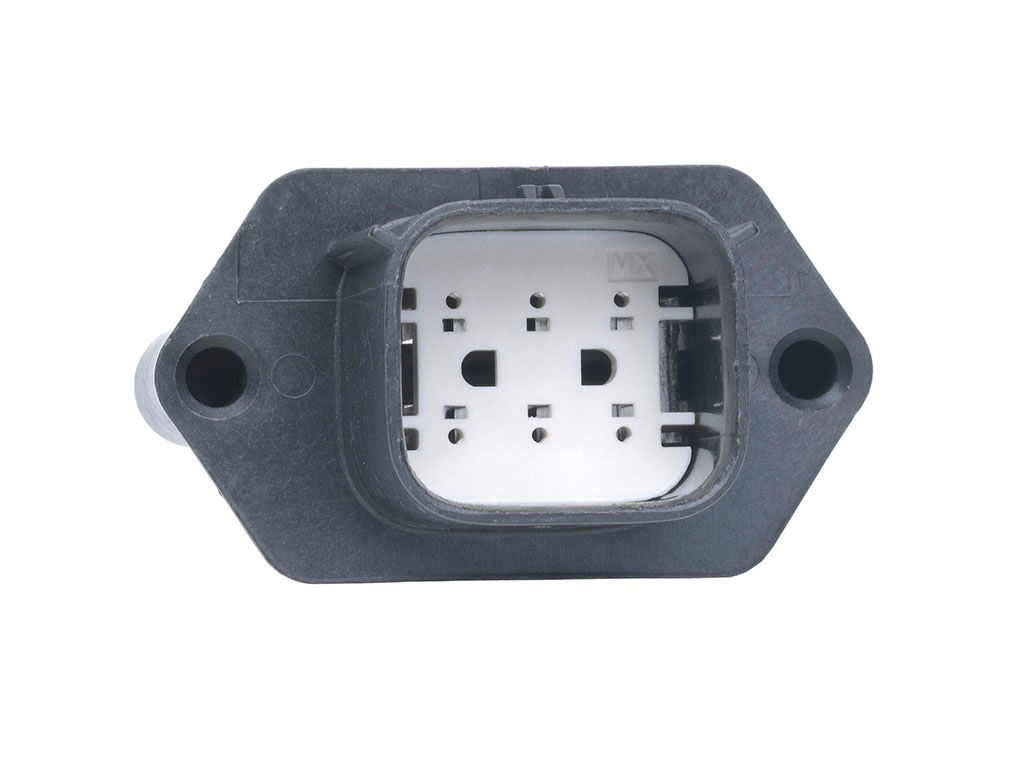

 | Molex 19429-0036 | MX150L 6 Circuit Panel Mount Plug for 14-22 AWG Wire, Rear Mount Flange Assembly, with Gasket, Black | |
 | Molex 19429-0037 | MX150L 8 Circuit Panel Mount Plug for 14-22 AWG Wire, Rear Mount Flange Assembly, with Gasket, Black | |
 | Molex 19431-0016 | MX150L Male Terminal for 10-12 AWG Wire | |
 | Molex 39-01-2080 | Mini-Fit Jr. Receptacle Housing, Dual Row, 8 Circuits, UL 94V-2, Natural | |
 | Molex 39-01-2100 | Mini-Fit Jr. Receptacle Housing, Dual Row, 10 Circuits, UL 94V-2, Natural | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 02/18/2019 | 506408 - Packaging Method/Quantity Changing. This letter is to inform you that the part(s) referenced in this notice will undergo packaging specification changes that may include new container sizes, quantities or changes to the label. No changes will be made to the product as a result of this change. | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 19099-0045 |
| Other Names: | 0190990045 C-2710-06XT |
