19-09-2049

Heilind Number:	MOL19-09-2049
Manufacturer:	Molex
Manufacturer Number:	19-09-2049
Datasheet:	Drawing
ECAD Model:

Description:

2.36mm Diameter Standard .093 Pin and Socket Plug Housing with Positive Latch, UL 94V-2, without Panel Mount 4 Circuits

More >>

Specifications

Attribute	Value
Product Category:	Pin & Socket Housings & Contacts Pin & Socket Housings
Manufacturer:	Molex
Manufacturer Part Number:	Molex 19-09-2049
Color:	Natural
Series:	3191
Amperage:	9 A
Connector Type:	Standard .093"
Gender:	Plug
Housing Material:	Nylon
Number of Contacts:	4
Number of Rows:	1
Pitch:	6.7 mm
Material:	Nylon
Keying:	No
Packaging:	Bag
Operating Temperature Range:	-40 - 105 °C
Circuit Application:	Power
Polarized to Mate:	Yes
Connector System:	Wire to Wire
CSA Agency Certification:	LR19980
UL Agency Certification:	E29179
Glow Wire Capable:	No
Lock to Mating Part:	Yes
Stackable:	No
Breakaway:	No
Product Name:	Standard .093"
Material Flammability Standard:	94V-2
Part Aliases:	0019092049 3191-4P1
Contact Detail:	2x2
SKU:	MOL19-09-2049

Detailed Description

Introducing the Standard .093" Connector System, featuring a durable nylon housing and four contacts for reliable power connections. With a low 6.7 mm pitch, this connector is perfect for high-density applications. Its operating temperature range of -40 to 105 °C, along with CSA and UL agency certifications, ensures safety and performance. Designed for wire-to-wire connectivity, each plug is polarized for easy mating. The lock to the mating part provides added security, while its RoHS compliance makes it environmentally friendly. Ideal for various industries, the 19092049 connector offers a dependable solution for your power circuit needs.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 02-09-1102	2.36mm Diameter, Standard .093 Pin and Socket Crimp Terminal, Series 1189, Female, with Tin (Sn) Plated Brass Contact, 14-20 AWG, Reel
	Molex 02-09-1102	Cut Strip - 2.36mm Diameter, Standard .093 Pin and Socket Double Crimp Terminal, Series 1189, Female, with Tin (Sn) Plated Brass Contact, 14-20 AWG, Reel
	Molex 02-09-1104	2.36mm Diameter, Standard .093 Pin and Socket Crimp Terminal, Series 1189, Female, with Tin (Sn) Plated Brass Contact, 14-20 AWG, Bag
	Molex 02-09-2103	2.36mm Diameter, Standard .093 Pin and Socket Crimp Terminal, Series 1190, Male, with Tin (Sn) Plated Brass Contact, 14-20 AWG, Bag
	Molex 172256-3104	Ultra-Fit Tangless Receptacle Housing, 3.50mm Pitch, Single Row, 4 Circuits, Black, Glow-Wire Capable
	Molex 19-09-1029	2.36mm Diameter Standard .093 Pin and Socket Receptacle Housing with Positive Latch, UL 94V-2, 2 Circuits
	Molex 19-09-1039	2.36mm Diameter Standard .093 Pin and Socket Receptacle Housing with Positive Latch, 94V-2, 3 Circuits
	Molex 19-09-1049	2.36mm Diameter Standard .093 Pin and Socket Receptacle Housing with Positive Latch, UL 94V-2, 4 Circuits
	Molex 19-09-1129	2.36mm Diameter Standard .093 Pin and Socket Receptacle Housing with Positive Latch, UL 94V-2, 12 Circuits
	Molex 19-09-2029	2.36mm Diameter Standard .093 Pin and Socket Plug Housing with Positive Latch, UL 94V-2, without Panel Mount, 2 Circuits
	Molex 19-09-2039	2.36mm Diameter Standard .093 Pin and Socket Plug Housing with Positive Latch, UL 94V-2, without Panel Mount, 3 Circuits
	Molex 19-09-2129	2.36mm Diameter Standard .093 Pin and Socket Plug Housing with Positive Latch, UL 94V-2, without Panel Mount, 12 Circuits

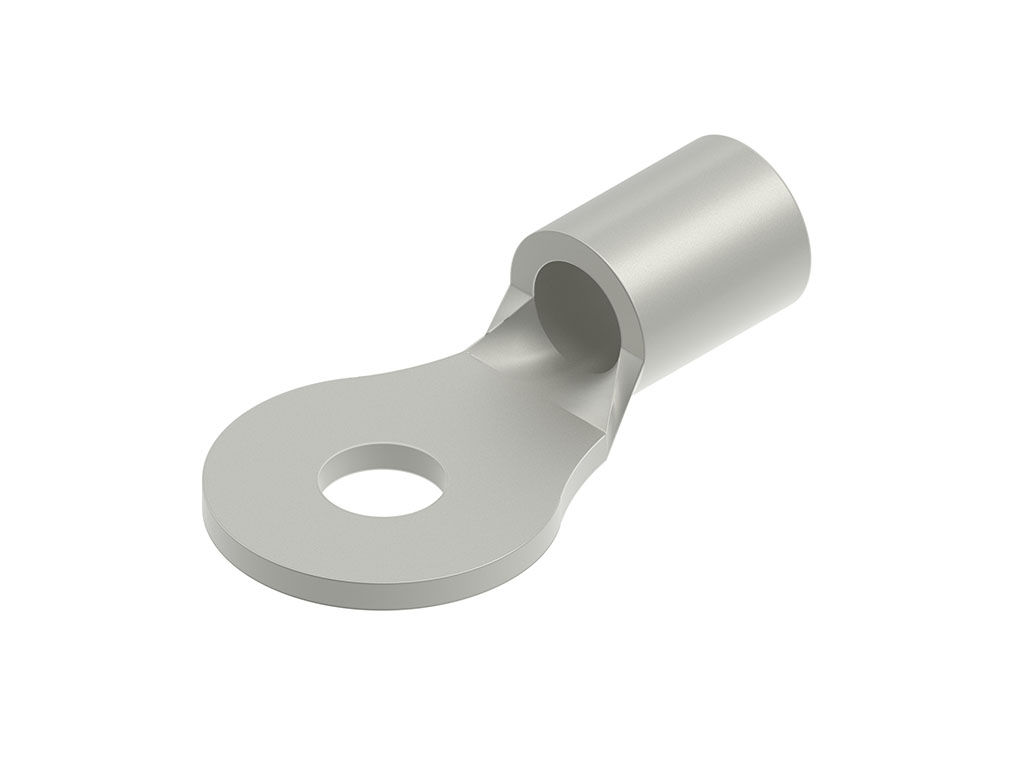

	Molex 19193-0148	VersaKrimp Ring Tongue Terminal for 8 AWG Wire, Stud Size 8 (M4), Mylar Tape Carrier
