19-09-1026

Heilind Number:	MOL19-09-1026
Manufacturer:	Molex
Manufacturer Number:	19-09-1026
Datasheet:	Datasheet
ECAD Model:

Description:

2.36mm Diameter Standard .093 Pin and Socket Receptacle Housing with Positive Latch, UL 94V-0, 2 Circuits

More >>

Specifications

Attribute	Value
Product Category:	Pin & Socket Housings & Contacts Pin & Socket Housings
Manufacturer:	Molex
Manufacturer Part Number:	Molex 19-09-1026
Color:	Natural
Series:	3191
Amperage:	12 A
Connector Type:	Standard .093"
Gender:	Receptacle
Housing Material:	Nylon
Number of Contacts:	2
Number of Rows:	1
Pitch:	6.7 mm
Material:	Nylon
Keying:	No
Operating Temperature Range:	-40 - 105 °C
Circuit Application:	Power
Polarized to Mate:	Yes
Connector System:	Wire to Board, Wire to Wire
Glow Wire Capable:	No
Lock to Mating Part:	Yes
Stackable:	No
Breakaway:	No
Product Name:	Standard .093"
Material Flammability Standard:	94V-0
Part Aliases:	0019091026 3191-2R1-201
SKU:	MOL19-09-1026

Detailed Description

Introducing the Standard .093" connector system, featuring a durable nylon housing and two contacts for reliable power connections. With a current rating of 12 A and operating temperature range from -40 to 105 °C, this connector is perfect for demanding applications. Its polarized design ensures proper mating, while the included locking feature adds security. RoHS compliant and suitable for wire to wire or wire to board connections, the Standard .093" connector is a versatile and essential component for your project.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 02-09-1117	2.36mm Diameter, Standard .093 Pin and Socket Crimp Terminal, Series 1381, Female, with Tin (Sn) Plated Brass Contact, 18-22 AWG, Reel
	Molex 02-09-2101	2.36mm Diameter, Standard .093 Pin and Socket Crimp Terminal, Series 1190, Male, with Tin (Sn) Plated Brass Contact, 14-20 AWG, Reel
	Molex 02-09-2116	2.36mm Diameter, Standard .093 Pin and Socket Crimp Terminal, Series 1380, Male, with Tin (Sn) Plated Brass Contact, 18-22 AWG, Reel
	Molex 03-09-1064	2.36mm Diameter Standard .093 Pin and Socket Receptacle Housing, 6 Circuits, Dual Row, Natural
	Molex 19-09-1036	2.36mm Diameter Standard .093 Pin and Socket Receptacle Housing with Positive Latch, UL 94V-0, 3 Circuits
	Molex 19-09-2026	2.36mm Diameter Standard .093 Pin and Socket Plug Housing with Positive Latch, UL 94V-0, without Panel Mount 2 Circuits
	Molex 19-09-2029	2.36mm Diameter Standard .093 Pin and Socket Plug Housing with Positive Latch, UL 94V-2, without Panel Mount, 2 Circuits
	Molex 19099-0010	InsulKrimp Snap Spade Terminal for 18-22 AWG Wire, Stud Size 5 (M3)-6, Mylar Tape Carrier, Red
	Molex 26-60-4020	KK 396 Header, Vertical, Friction Lock, 2 Circuits, Tin (Sn) Plating
	Molex 39-00-0038	Mini-Fit Female Crimp Terminal, Tin (Sn) over Copper (Cu) Plated Brass, Double 22+22 or Single 24-18 AWG, Reel
	Molex 39-01-2065	Mini-Fit Jr. Receptacle Housing, Dual Row, 6 Circuits, UL 94V-0, Natural
	Molex 39-01-4031	Mini-Fit Jr. Receptacle Housing, Single Row, 3 Circuits, UL 94V-0, Natural

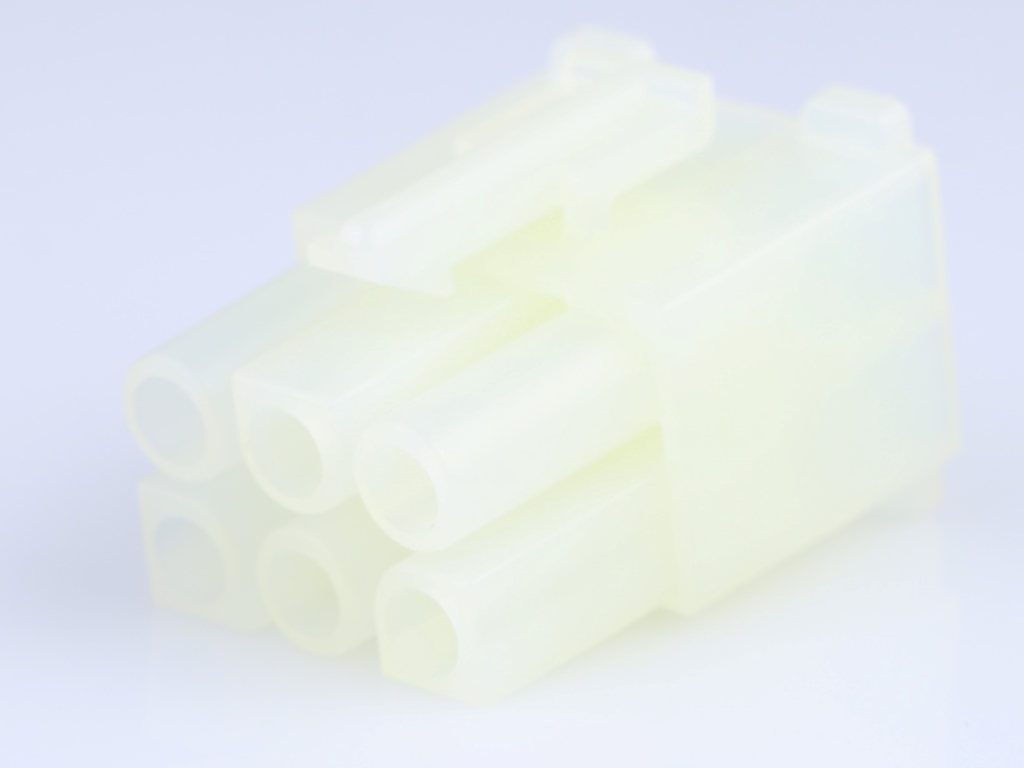

	Molex 39-03-6064	2.36mm Diameter Standard .093" Pin and Socket Receptacle Housing with Positive Latch, UL 94V-2, without Panel Mount, 6 Circuits
	Molex 43025-0400	Micro-Fit 3.0 Receptacle Housing, Dual Row, 4 Circuits, UL 94V-0, Low-Halogen, Black
	Molex 43640-0211	Micro-Fit 3.0 Plug Housing, Single Row, 2 Circuits, UL 94V-2, Glow-Wire Capable, Black
	Molex 43640-0311	Micro-Fit 3.0 Plug Housing, Single Row, 3 Circuits, UL 94V-2, Glow-Wire Capable, Black
	Molex 43645-0310	Micro-Fit 3.0 Receptacle Housing, Single Row, 3 Circuits, UL 94V-2, Glow-Wire Capable, Black
	Molex 51163-0300	2.50mm Pitch Wire-to-Board Receptacle Housing, Positive Lock, with Retainer, 3 Circuits, Glow-Wire Capable, Natural

Product Change Notice

Effective Date	Description of Change	Download
03/16/2025	515496 - Change Suppliers. discontinuation fo the additive melamine used in resin A and it will no longer be able to supply material in its current formulation the melamine was a newly added to the candidate list of SVHC for Authorization under the EI REACH reg 1/17/23 the new material which has changed manudacurting method has a melamin content of less than .01wt% changes applies only to products manufactured in japan	Download
08/31/2020	Molex email - MLQ Change. PN 1909XXXX parts of 3191 series (Listed in File attached) will be subjected to MLQ change [No change in DU] as a part of internal supply optimization which will improve the supply path & lead times . This will not affect any change in any manufacturing plant & supply . This change will be going under internal PCN as there is no change in Production plant .	Download
01/19/2015	GCM 10653987 - Supplier Change.	Download
