| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 172704-0067 |
| Series: | 172704 |
| Amperage: | 7.5 A |
| Gender: | Male |
| Number of Contacts: | 25 |
| Number of Rows: | 2 |
| Termination Method: | Solder Pot |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold Over Nickel |
| Pitch: | 2.84 mm |
| IP Rating: | IP20 |
| Number of Ports: | 1 |
| Insert Material: | Thermoplastic |
| Frame Material: | Tin-plated Steel |
| Operating Temperature Range: | -55 - 130 °C |
| Contact Mating Area Plating: | Gold over Nickel |
| Contact Mating Area Plating Thickness: | .8 µm |
| Number of Contacts Loaded: | 25 |
| Mating Cycles: | 500 |
| Panel Mount Method: | Flange |
| Shielded: | Yes |
| Insert Color: | White |
| Type: | Standard Density |
| Mating Pitch: | 2.84 mm |
| Contact Termination Plating Thickness: | .8 µm |
| Polarized to Mate: | Yes |
| Wire Size: | 20 AWG |
| Product Name: | FCT Products |
| Part Aliases: | 1727040067 F25P0G1 |
| SKU: | MOL172704-0067 |
172704-0067
| Heilind Number: | MOL172704-0067 |
| Manufacturer: | Molex |
| Manufacturer Number: | 172704-0067 |
| Datasheet: | Test Summary |
| ECAD Model: | |
Description:

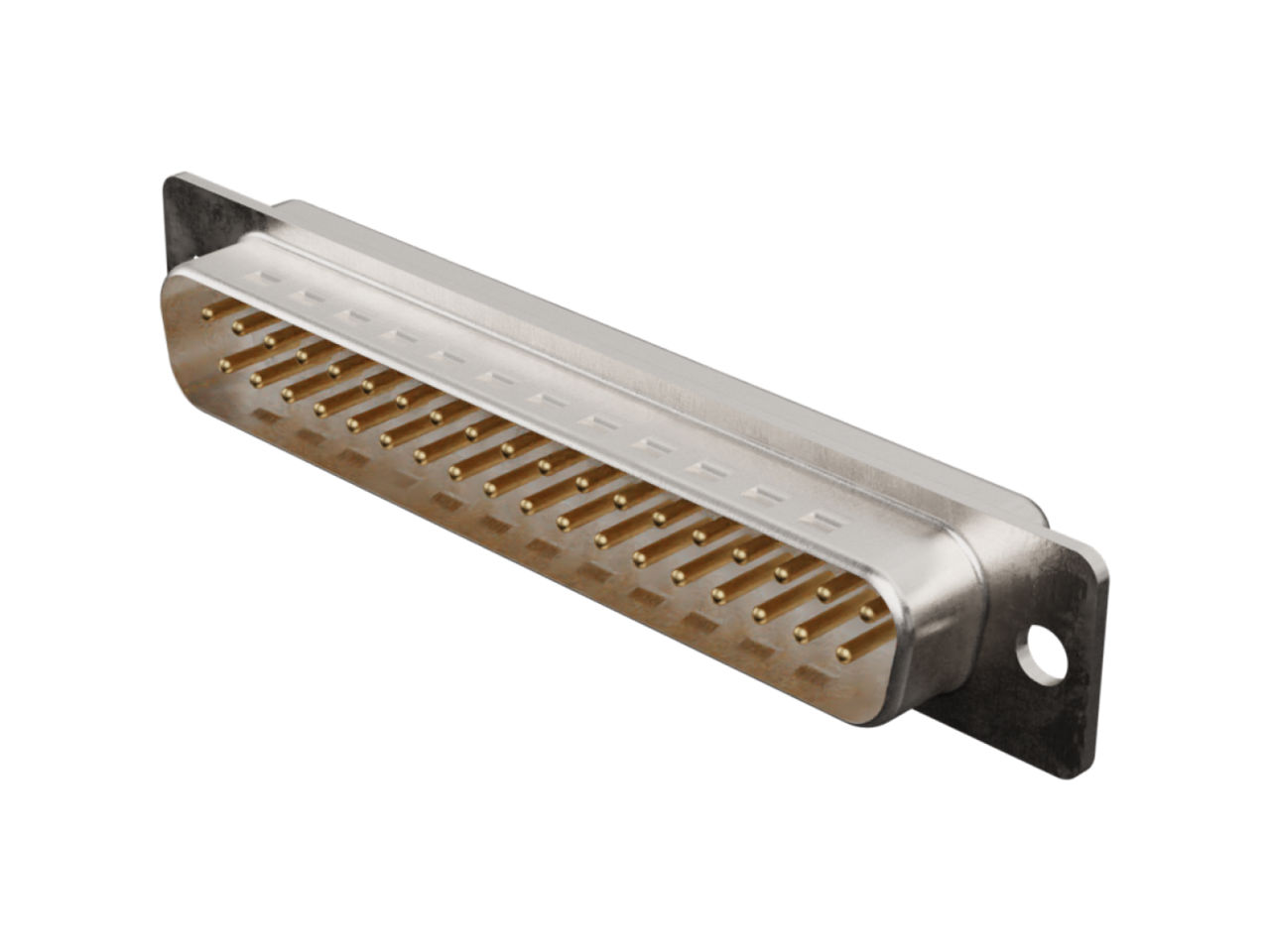

HPD Standard-Density D-Sub Connector, Solder Pot, with Machined Male Contacts, Panel Mount, 25 Circuits
More >>Specifications
Detailed Description
Introducing the HPD Standard-Density D-Sub Connector, a reliable and high-performance solution for your connectivity needs. This male connector features 25 machined contacts for secure panel mounting, with a solder pot termination method ensuring durable connections. Constructed from copper alloy with gold over nickel plating, it offers excellent conductivity and corrosion resistance. With an amperage rating of 7.5 A and operating temperature range of -55 to 130 °C, this connector is suitable for a wide range of applications. Its IP20 rating and shielded design provide added protection, while its white thermoplastic insert and tin-plated steel frame ensure durability. RoHS compliant and with 500 mating cycles, the FCT Products connector is a dependable choice for power and signal transmission in various industries.
