172264-4008

Heilind Number:	MOL172264-4008
Manufacturer:	Molex
Manufacturer Number:	172264-4008
Datasheet:	Application Specification
ECAD Model:

Description:

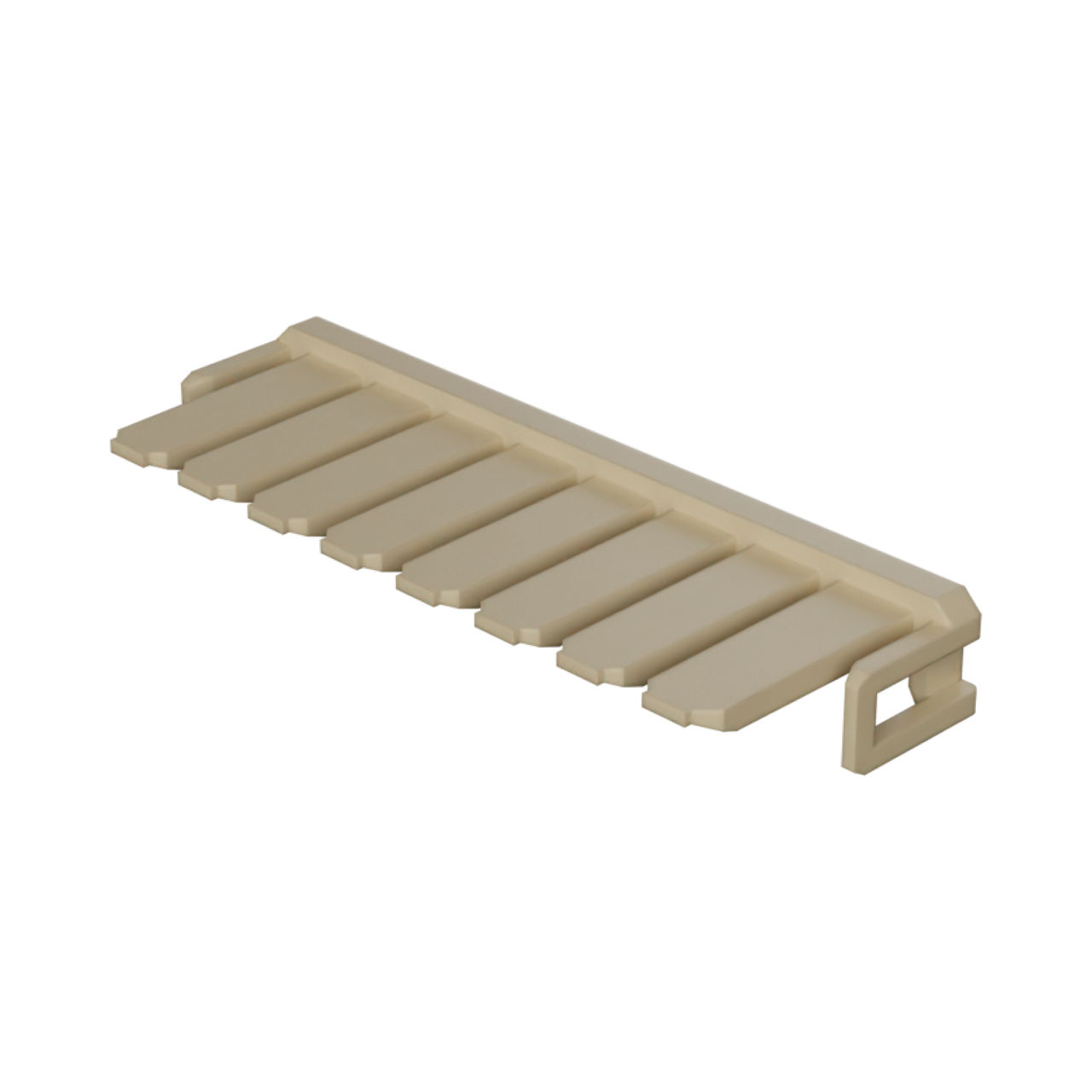

Ultra-Fit Tangless Terminal Position Assurance (TPA), 3.50mm Pitch, 8 Circuits, Natural

More >>

Specifications

Attribute	Value
Product Category:	PC Board Pin & Receptacle Connectors PCB Pin Headers
Manufacturer:	Molex
Manufacturer Part Number:	Molex 172264-4008
Color:	Natural
Series:	172264 - Ultra-Fit
Number of Contacts:	8
Number of Rows:	1
Material:	Nylon
Component Type:	Terminal Position Assurance
Operating Temperature Range:	-40 - 120 °C
Number of Contacts Loaded:	8
Lock to Mating Part:	Yes
Product Name:	Ultra-Fit
Part Aliases:	1722644008
SKU:	MOL172264-4008

Detailed Description

Introducing the Molex Ultra-Fit Tangless Terminal Position Assurance (TPA) with a 3.50mm pitch and 8 circuits for secure connectivity. Made of durable nylon material, this TPA ensures reliable performance in a wide operating temperature range from -40 to 120 °C. Featuring 8 loaded contacts in a single row configuration, it guarantees a tight and stable connection. Designed for the Ultra-Fit connector system as part of the Fit Family Power Connectors, this product is RoHS compliant and offers peace of mind with its lock to mating part feature. Available now for purchase.
