| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 172258-3108 |
| Housing Material: | Nylon |
| Number of Rows: | 2 |
| Pitch: | 3.5 mm |
| Polarization: | Yes |
| Number of Positions: | 8 |
| Housing Color: | Black |
| Connector Housing Type: | Receptacle |
| Flammability Rating: | UL 94V-0 |
| Operating Temperature: | -40 to 105 °C |
| SKU: | MOL172258-3108 |
172258-3108
Specifications
Detailed Description

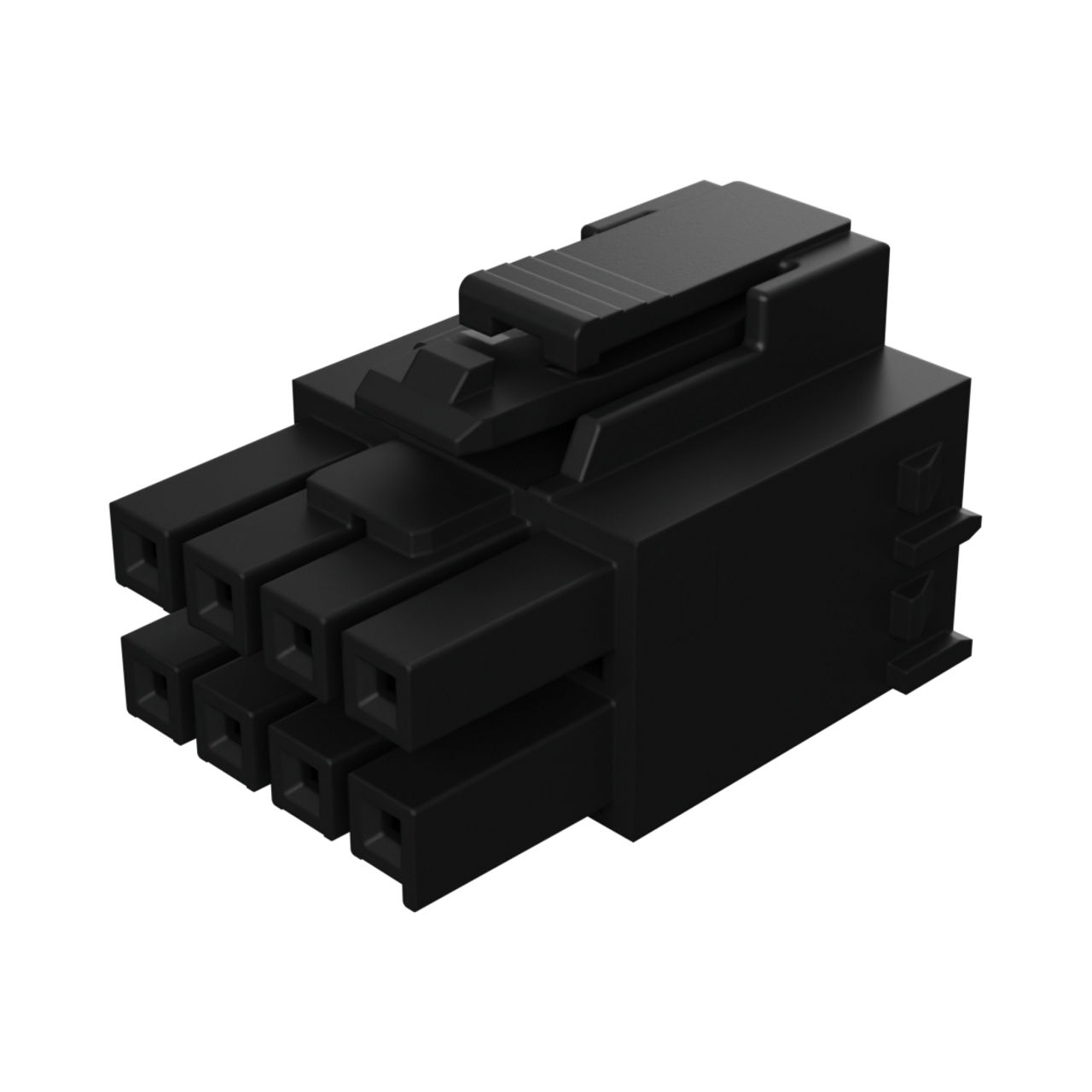

Introducing the Molex Ultra-Fit Tangless Receptacle Housing, a high-performance connectivity solution for your power applications. This housing, with a 3.50mm pitch and featuring eight circuits arranged in a dual row configuration, ensures efficient power delivery in a sleek black design. Engineered for durability, it is glow-wire capable and constructed from nylon, guaranteeing reliable operation even in harsh environments. With keying for added security and polarization for easy mating, this housing offers convenience and peace of mind. RoHS compliant and in stock for immediate shipping, the Ultra-Fit is the perfect choice for your power connector needs.
