| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 151049-2207 |
| Color: | Green |
| Series: | 151049 |
| Amperage: | 10 A |
| Connector Type: | CP-6.5 |
| Gender: | Receptacle |
| Number of Contacts: | 2 |
| Number of Rows: | 2 |
| Pitch: | 6.5 mm |
| Material: | PBTP |
| Keying: | Yes |
| Operating Temperature Range: | -40 - 105 °C |
| Polarized to Mate: | Yes |
| Connector System: | Wire to Board |
| Termination Pitch: | 6.5 mm |
| Glow Wire Capable: | No |
| Lock to Mating Part: | Yes |
| Product Name: | CP-6.5 |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 1510492207 |
| SKU: | MOL151049-2207 |
151049-2207
Specifications
Detailed Description
The CP-6.5 Receptacle Housing is a versatile and reliable connector for your wire-to-board and wire-to-wire applications. With a pitch of 6.5mm and featuring dual rows, this housing ensures secure and efficient connections. Its polarized and positive lock design offers added safety and stability, while accommodating 2 circuits with an amperage of 10A. Constructed from PBTP material and rated for an operating temperature range of -40 to 105°C, this housing guarantees durability in harsh environments. The green color coding and keying feature make it easy to identify and mate with corresponding connectors. RoHS compliant and in stock for immediate shipping, the CP-6.5 is the perfect solution for your high-performance connectivity needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 19-09-1026 | 2.36mm Diameter Standard .093 Pin and Socket Receptacle Housing with Positive Latch, UL 94V-0, 2 Circuits |  |
 | Molex 203438-2200 | CP-6.5 Plug Housing, 6.50mm Pitch, Dual Row, 2 Circuits, Orange, Glow-Wire Capable | |

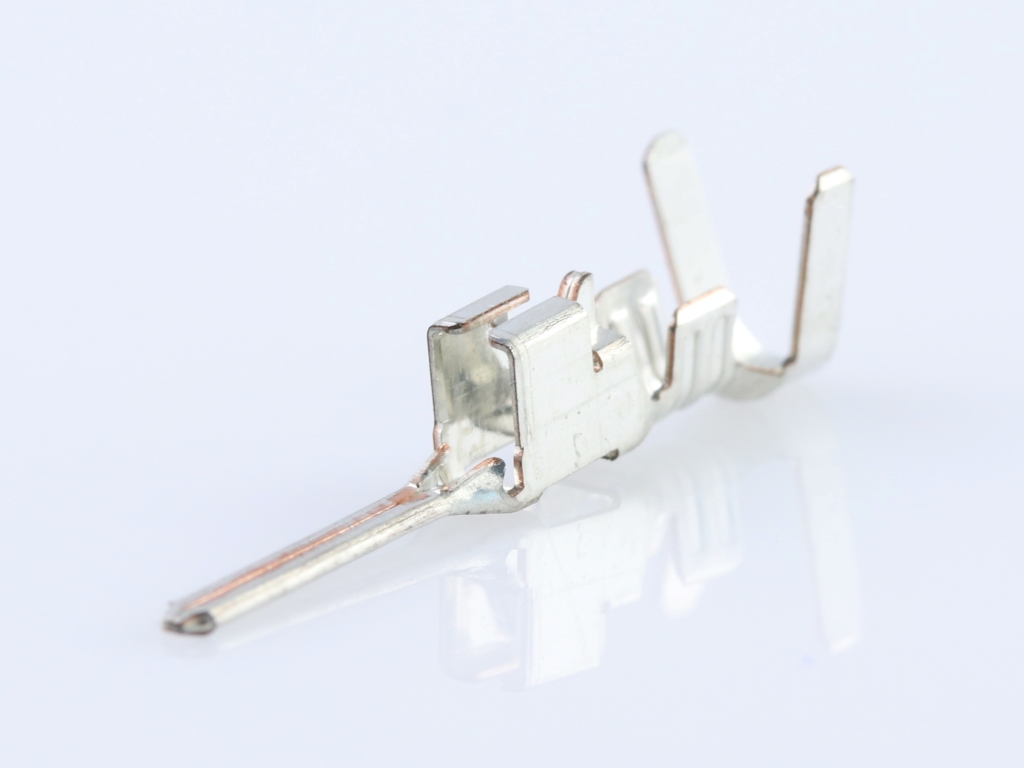

 | Molex 205033-8000 | CP-6.5 Wire-to-Wire Crimp Terminal, Male, 20-16 AWG, Reel | |

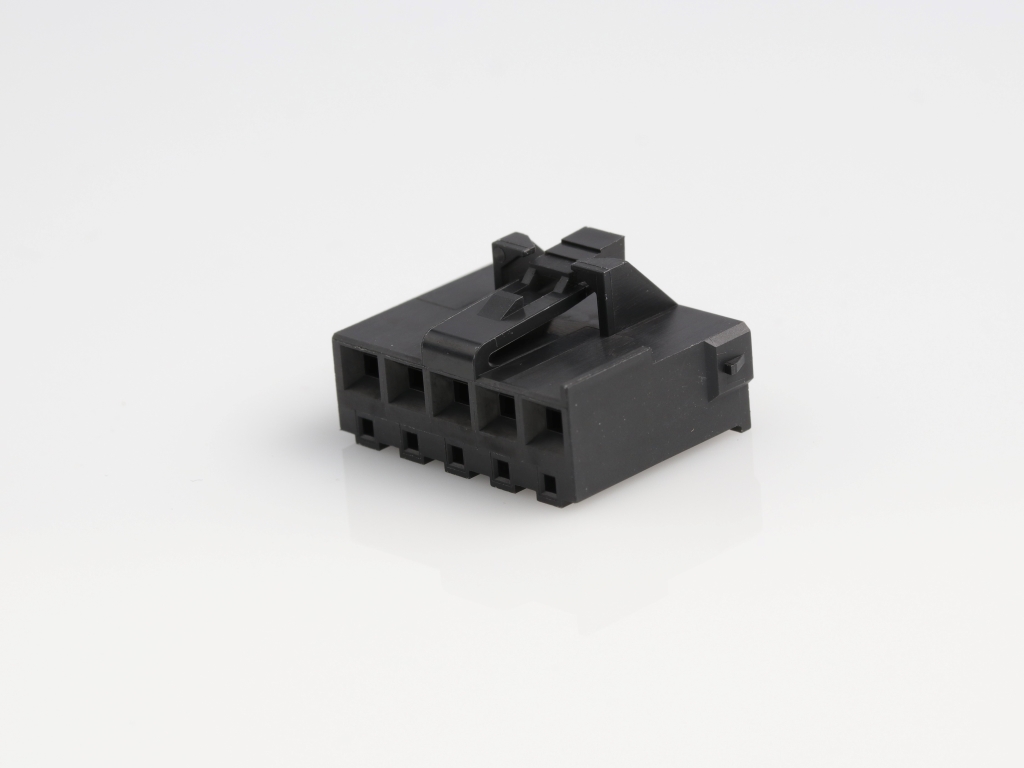

 | Molex 207458-0005 | KK Plus 396 Receptacle Housing, 3.96mm Pitch, Single Row, 5 Circuits, UL 94V-0, Black | |
