15-31-1036

MOL15-31-1036
Heilind Number:MOL15-31-1036
Manufacturer:Molex
Manufacturer Number:15-31-1036
Datasheet:Drawing
ECAD Model:
3D Model

Description:

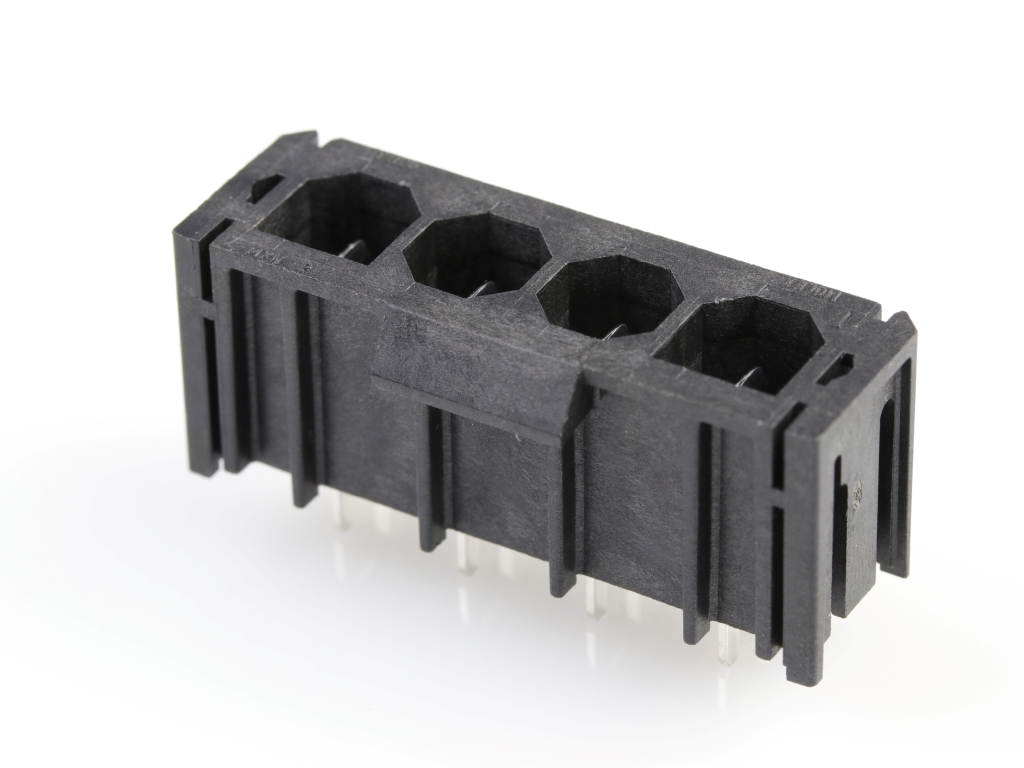

2.36mm Diameter Standard .093 Pin and Socket Header, Vertical, with Beveled Plastic Peg, 3 Circuits

More >>

Specifications

AttributeValue
Product Category:
PC Board Pin & Receptacle Connectors PCB Pin Headers
Manufacturer:Molex
Manufacturer Part Number:Molex 15-31-1036
Color:Natural
Series:5219 - Standard .093"
Amperage:11 A
Connector Type:Standard .093"
Number of Contacts:3
Number of Rows:1
Termination Method:Through Hole
Body Orientation:Straight
Pitch:6.7 mm
Voltage:600 V
Material:Nylon
Orientation:Vertical
Keying:No
Packaging:Bag
Operating Temperature Range:-40 - 105 °C
Contact Mating Area Plating:Tin
Number of Contacts Loaded:3
Mating Cycles:30
PCB Locator:Yes
PCB Retention:Yes
Polarized to PCB:Yes
Polarized to Mate:Yes
PCB Thickness (Recommended):1.6 mm
Connector System:Wire to Board
CSA Agency Certification:LR19980
UL Agency Certification:E29179
Contact Termination Plating:Tin
Glow Wire Capable:No
Guide to Mating Part:No
Lock to Mating Part:Yes
Stackable:No
Surface Mount Compatible:No
Breakaway:No
Make First / Break Last:No
Shroud Type:Fully
Material Flammability Standard:94V-2
Part Aliases:0015311036 5219-03A
SKU:MOL15-31-1036

Detailed Description

Introducing the 15-31-1036, a high-quality PCB pin header connector designed for reliable power and signal transmission in electronic applications. With a standard .093" connector type and 3 contacts arranged in a single row, this connector offers seamless integration on circuit boards. Constructed with durable nylon material and featuring tin plating on the contact mating area, it ensures excellent conductivity and longevity. Rated for up to 11 A and 600 V, it meets stringent industry standards for performance and safety. Its straight body orientation and through-hole termination method make it easy to install, while its vertical orientation and PCB locator ensure secure positioning. With UL and CSA agency certifications and RoHS compliance, this connector guarantees quality and environmental responsibility. Perfect for wire-to-board connections, it's ideal for a wide range of applications in industries such as telecommunications, automotive, and consumer electronics. Upgrade your connectivity with the 15-31-1036 PCB pin header connector.
