15-06-0141

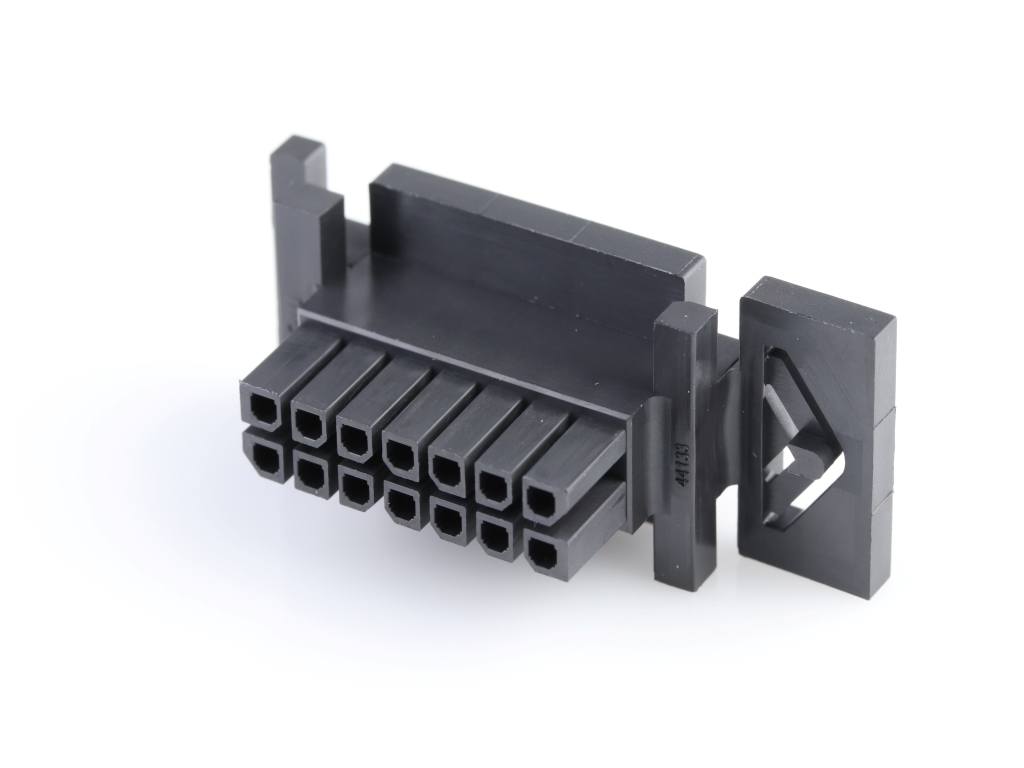

Mini-Fit BMI Receptacle Housing, 4.20mm Pitch, Dual Row with Panel Mount Ears, PA Polyamide Nylon 6/6, UL 94V-0, 14 Circuits
Part Aliases: Molex 0015060141 Molex 42474-1421
The 15-06-0141 Mini-Fit BMI Receptacle Housing, a crucial component for your power circuit applications. This dual-row housing, featuring panel mount ears, is constructed from durable PA Polyamide Nylon 6/6 with a UL 94V-0 flammability rating, ensuring safety and reliability. With 14 circuits and a pitch of 4.20mm, it accommodates wire-to-wire and wire-to-board connections with ease. Designed for a maximum amperage of 13A, this housing operates efficiently in a wide temperature range from -40 to 105°C. Its natural (white) color adds versatility, while its polarized mating feature guarantees proper alignment. ROHS compliant and in stock, the 15-06-0141 is the perfect choice for your high-performance connector needs.
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 15-06-0141 |
| Color: | Natural (White) |
| Series: | 42474 - Mini-Fit BMI |
| Amperage: | 13 A |
| Connector Type: | Mini-Fit BMI |
| Gender: | Receptacle |
| Housing Material: | Nylon |
| Number of Contacts: | 14 |
| Number of Rows: | 2 |
| Mount Type: | Panel Mount |
| Pitch: | 4.2 mm |
| Material: | Nylon |
| Operating Temperature Range: | -40 - 105 °C |
| Circuit Application: | Power |
| Polarized to Mate: | Yes |
| Connector System: | Wire to Board, Wire to Wire |
| Termination Pitch: | 4.2 mm |
| Glow Wire Capable: | No |
| Lock to Mating Part: | No |
| Stackable: | No |
| Breakaway: | No |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0015060141 42474-1421 |
| SKU: | MOL15-06-0141 |
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
Product Change Notice
| Effective Date | Description of Change | Download |
|---|---|---|
| 03/20/2017 | 501827 - Equipment Transfer, Production Transfer or Rearrangement. This letter is to inform you that production of the part(s) identified in this notice is being moved to a different location. No changes will be made to the product as a result of this move. | Download |
