| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 172673-2006 |
| Color: | Black |
| Series: | 172673 - Super Sabre |
| Amperage: | 34 A |
| Connector Type: | Super Sabre |
| Gender: | Plug |
| Housing Material: | Nylon |
| Number of Contacts: | 6 |
| Number of Rows: | 1 |
| Pitch: | 7.5 mm |
| Material: | Nylon |
| Keying: | Yes |
| Packaging: | Carton |
| Operating Temperature Range: | -40 - 125 °C |
| Circuit Application: | Power |
| Polarized to Mate: | Yes |
| Connector System: | Wire to Board, Wire to Wire |
| CSA Agency Certification: | LR19980 |
| UL Agency Certification: | E29179 |
| Glow Wire Capable: | No |
| Lock to Mating Part: | Yes |
| Stackable: | No |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 1726732006 |
| SKU: | MOL172673-2006 |
172673-2006
Specifications
Detailed Description
Introducing the 172673-2006, a high-performance Super Sabre connector designed for power applications. With a robust construction featuring a black nylon housing and six gold-plated contacts, this connector ensures reliable conductivity in demanding environments. Its 34A amperage rating and operating temperature range of -40 to 125°C make it ideal for a wide range of industrial and commercial applications. CSA and UL certified, it guarantees safety and compliance with international standards. The connector's 7.5mm pitch and polarized plug design allow for easy and secure mating, while its stackable and wire-to-board capabilities offer versatility in installation. RoHS compliant and part of the Super Sabre Connector System, the 172673-2006 is the perfect choice for high-reliability power connections.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 105308-1210 | Nano-Fit Receptacle Housing, TPA Capable, 2.50mm Pitch, Dual Row, 10 Circuits, Black, Glow-Wire Capable |  |
 | Molex 15-06-0100 | Mini-Fit BMI Receptacle Housing, 4.20mm Pitch, Dual Row with Panel Mount Ears, PA Polyamide Nylon 6/6, UL 94V-2, 10 Circuits | |

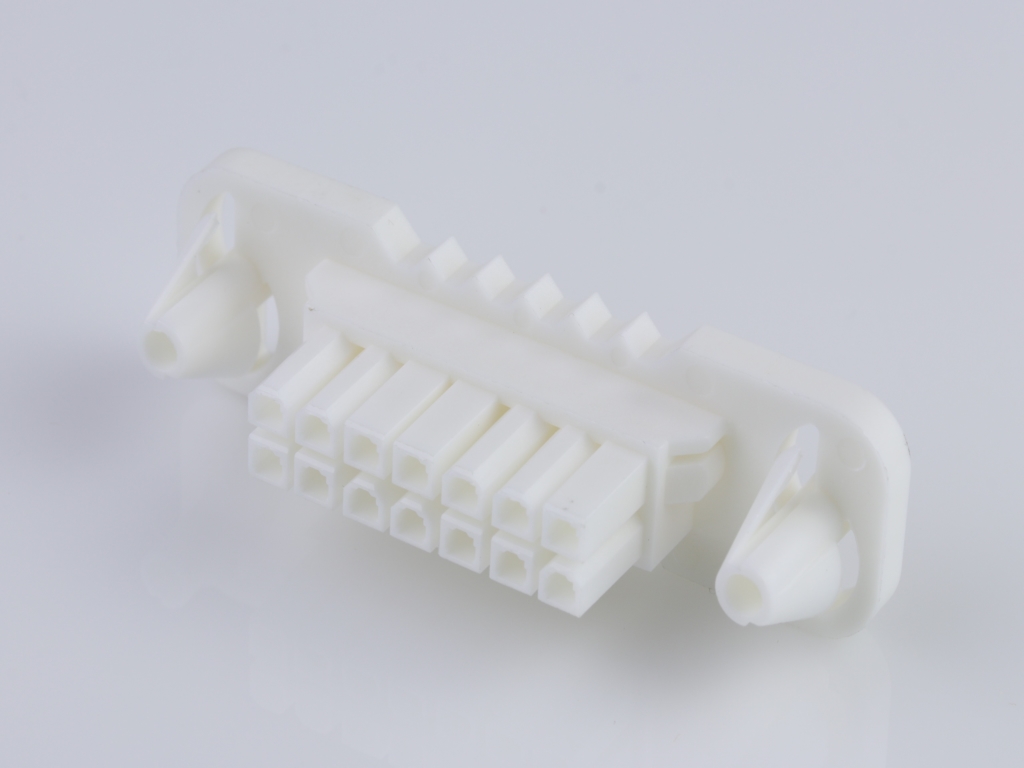

 | Molex 15-06-0141 | Mini-Fit BMI Receptacle Housing, 4.20mm Pitch, Dual Row with Panel Mount Ears, PA Polyamide Nylon 6/6, UL 94V-0, 14 Circuits | |
