| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 105417-0334 |
| Series: | 105417 - Mega-Fit |
| Amperage: | 25 A |
| Connector Type: | Mega-Fit |
| Gender: | Male |
| Termination Method: | Crimp or Compression |
| Contact Material: | High Conductivity Copper |
| Voltage: | 600 V AC/DC |
| Circuit Application: | Power |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | 1.016 µm |
| Contact Termination Plating Thickness: | 1.016 µm |
| Wire Size: | 14 AWG, 16 AWG, 1.5 - 2.5 mm² |
| Connector System: | Wire to Wire |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | 3.15 - 3.58 mm |
| Part Aliases: | 1054170334 |
| SKU: | MOL105417-0334 |

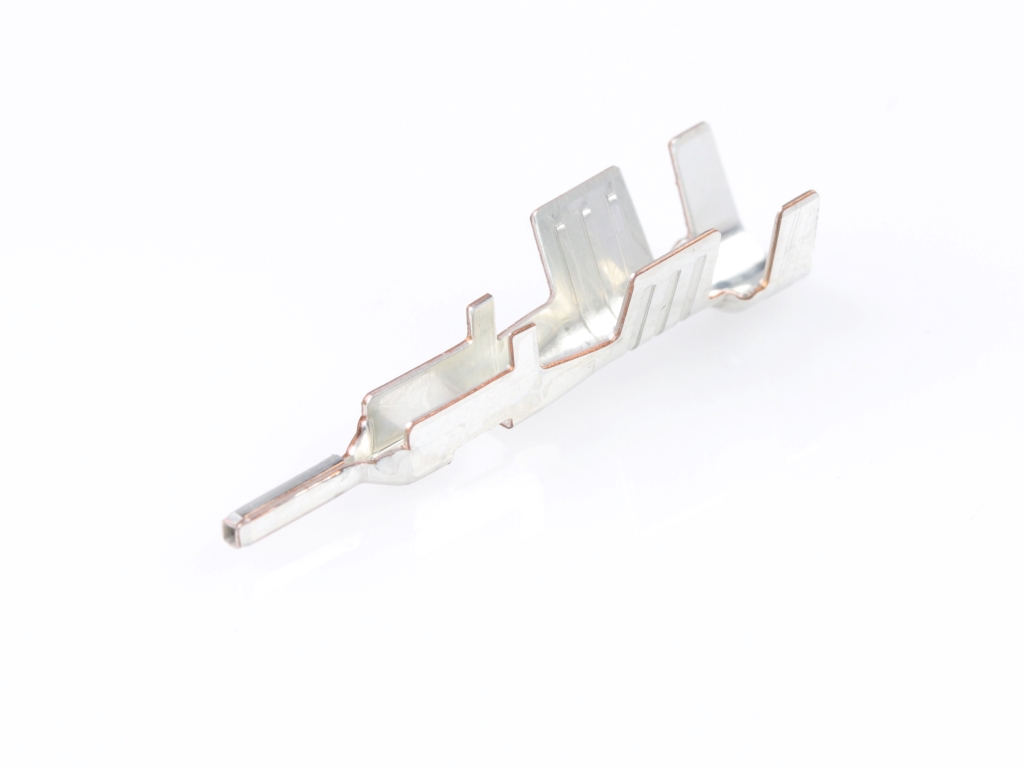

105417-0334
Specifications
Detailed Description
Introducing the 105417-0334 Mega-Fit Crimp Terminal, a high-performance male connector designed for robust power applications. With tin (Sn) plating and suitable for use with 14 and 16 AWG wires, this terminal ensures reliable conductivity in demanding environments. Rated for 25 A and 600 V AC/DC, it is ideal for power circuit applications. The crimp or compression termination method offers secure and efficient wire attachment, while the high conductivity copper contact material guarantees low resistance. Part of the 105417 Mega-Fit series, this terminal is RoHS compliant and suitable for a wide range of wire-to-wire connector systems. Trust in the Mega-Fit Crimp Terminal for dependable power transmission in your devices.
