| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 105300-1100 |
| Series: | 105300 - Nano-Fit |
| Amperage: | 6.5 A |
| Connector Type: | Nano-Fit |
| Gender: | Female |
| Termination Method: | Crimp or Compression |
| Contact Material: | High Conductivity Copper |
| Contact Plating: | Matte Tin |
| Voltage: | 250 V AC/DC |
| Circuit Application: | Power |
| Contact Mating Area Plating: | Matte Tin |
| Contact Mating Area Plating Thickness: | 2.54 µm |
| Mating Cycles: | 25 |
| Contact Termination Plating Thickness: | 2.540 µm |
| Wire Size: | .13 - .2 mm², 24 AWG, 26 AWG |
| Connector System: | Wire to Board |
| Contact Termination Plating: | Matte Tin |
| Wire Insulation Diameter: | 1.3 mm |
| Product Name: | Nano-Fit |
| Part Aliases: | 1053001100 |
| SKU: | MOL105300-1100 |
105300-1100
Specifications
Detailed Description

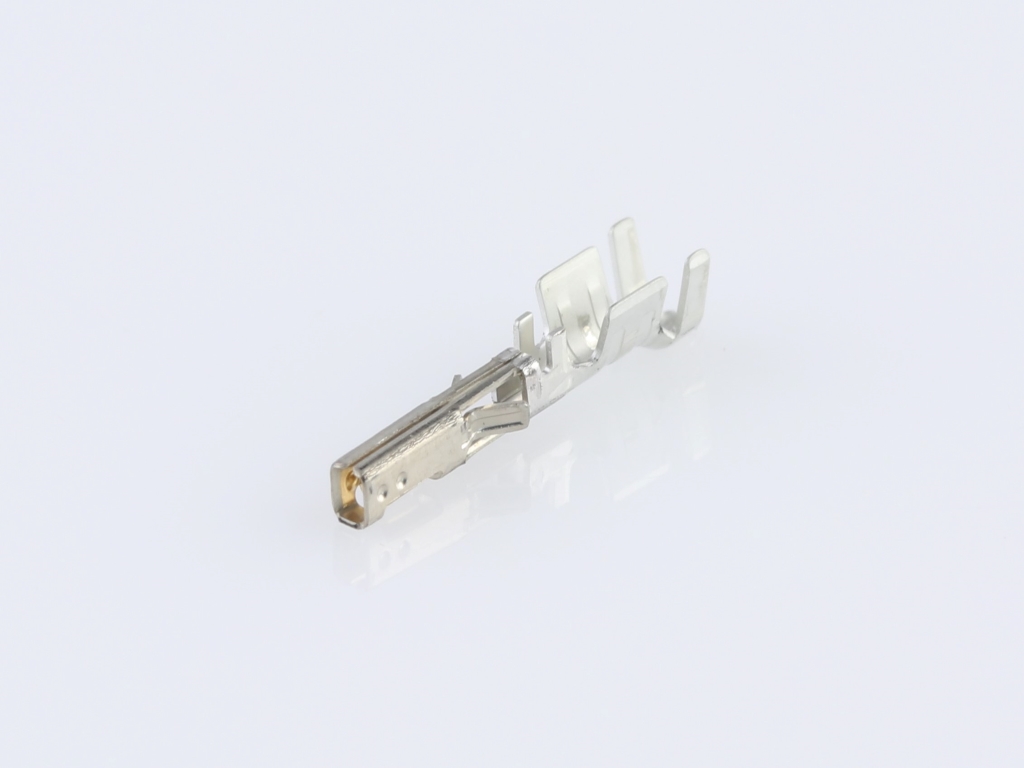

The Nano-Fit Crimp Terminal is a high-performance female connector designed for power applications, featuring a compact 2.540 size. With a current rating of 6.5 A and a voltage of 250 V AC/DC, this terminal ensures reliable power transmission. Constructed from high conductivity copper with a matte tin plating, it offers excellent conductivity and corrosion resistance. Suitable for 24-26 AWG wires, this terminal is ideal for small-scale applications. Part of the Nano-Fit connector series, it is RoHS compliant and designed for 25 mating cycles, making it a durable and environmentally friendly choice for your connectivity needs.
