| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 105017-0001 |
| Color: | Black |
| Series: | 105017 - USB 2.0 |
| Amperage: | 1.8 A, 1 A |
| Connector Type: | USB |
| Gender: | Female |
| Number of Contacts: | 5 |
| Number of Rows: | 1 |
| Termination Method: | Surface Mount |
| Contact Material: | Copper Alloy |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -30 °C |
| Body Orientation: | Right Angle |
| Pitch: | .65 mm |
| Voltage: | 30 V AC/DC |
| Shield Type: | Full Shield |
| Material: | High Temperature Thermoplastic |
| Number of Ports: | 1 |
| Orientation: | Right Angle |
| Keying: | Yes |
| USB Type: | Micro-B |
| Component Type: | Receptacle |
| Packaging: | Embossed Tape on Reel |
| Operating Temperature Range: | -30 - 85 °C |
| Contact Mating Area Plating: | Gold |
| Ground to Panel / PCB: | Yes |
| Number of Contacts Loaded: | 5 |
| Mating Cycles: | 10000 |
| Shielded: | Yes |
| PCB Retention: | Without |
| Polarized to Mate: | Yes |
| Supplier Product Group: | USB Connectors |
| Connector System: | Wire to Board |
| UL Agency Certification: | E107635 |
| Contact Termination Plating: | Gold |
| Maximum Solder Process Temperature: | 260 °C |
| Lead Free Process Capability: | REFLOW |
| Duration at Max. Process Temperature (seconds): | 010 |
| Max. Cycles at Max. Process Temperature: | 001 |
| Termination Pitch: | .65 mm |
| Lock to Mating Part: | No |
| Surface Mount Compatible: | Yes |
| Waterproof Dustproof: | No |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 1050170001 NT501-6734 |
| SKU: | MOL105017-0001 |
105017-0001
| Heilind Number: | MOL105017-0001 |
| Manufacturer: | Molex |
| Manufacturer Number: | 105017-0001 |
| Datasheet: | Product Specification |
| ECAD Model: | |
Description:

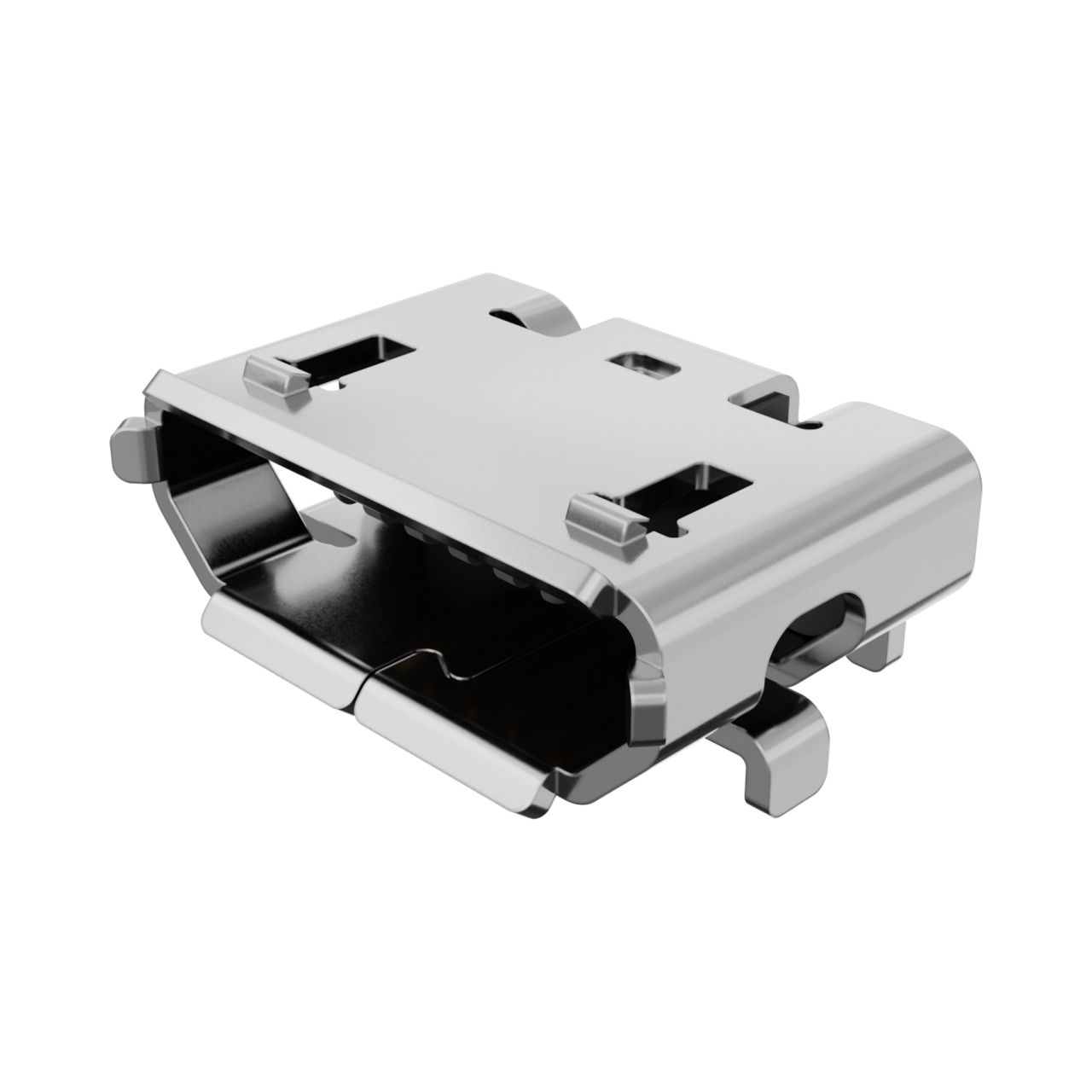

Micro-USB B Receptacle, Bottom Mount, Surface Mount, with Solder Tabs, Lead-Free
More >>Specifications
Detailed Description
The 105017-0001 is a high-performance Micro-USB B Receptacle designed for reliable connectivity in various electronic applications. Featuring a convenient Bottom Mount and Surface Mount design with Solder Tabs, this female connector ensures secure attachment to circuit boards. With a durable construction and Full Shield protection, it guarantees longevity and interference-free data transmission. Rated for 1A and 1.8A, with a voltage of 30V AC/DC, it offers efficient power delivery. Gold-plated contact termination and Copper Alloy construction enhance conductivity and signal integrity. Operating in a wide temperature range from -30°C to 85°C, it is suitable for diverse environments. RoHS compliant and lead-free, it meets international standards for environmental responsibility. Perfect for use in industrial, automotive, and consumer electronics, the 105017-0001 is a versatile and dependable USB connector solution.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 105133-0031 | Micro-USB B Receptacle with Flange, Vertical, Surface Mount, 9.80mm Height, 2.30mm Solder Tabs, Lead-Free |  |
 | Molex 15-92-1050 | 1.27mm Pitch EBBI 50D Receptacle, Vertical, 50 Circuits | |
 | Molex 39-29-9062 | Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 6 Circuits, with Snap-in Plastic Peg PCB Lock, Tin, Natural | |

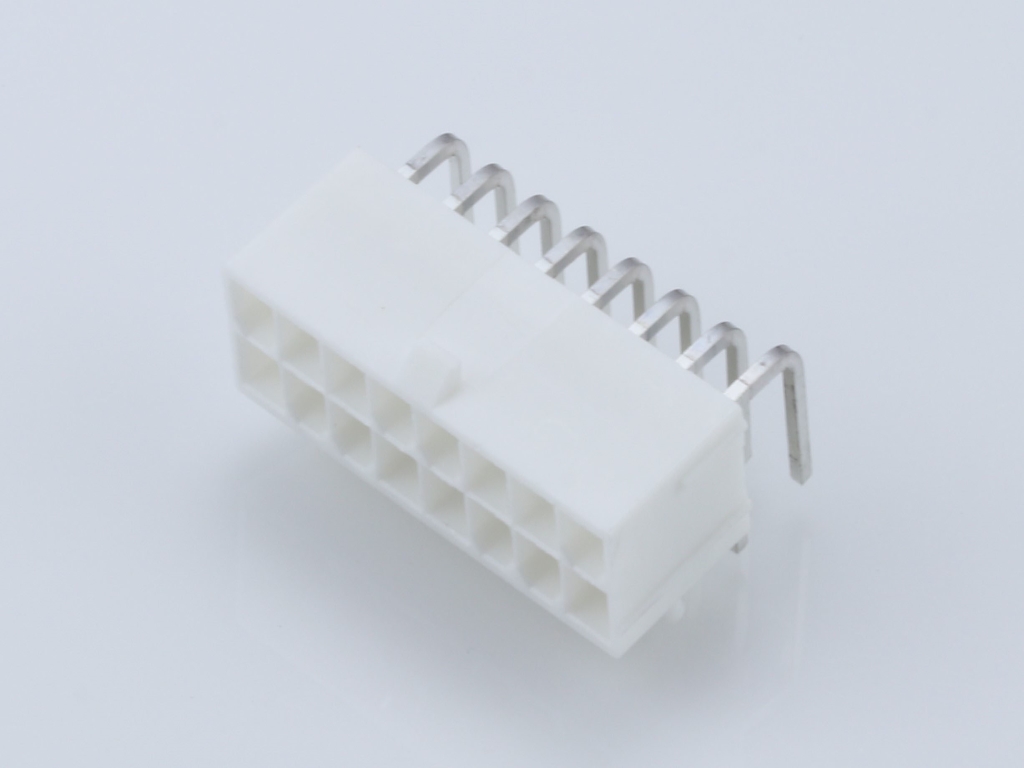

 | Molex 39-30-0160 | Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 16 Circuits, PA Polyamide Nylon 6/6 94V-0, 2.54µm Matte Tin (Sn) Plating | |
