| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 02-06-1132 |
| Series: | 1855 - Standard .062" |
| Connector Type: | Standard .062" |
| Gender: | Female |
| Termination Method: | Crimp or Compression |
| Contact Material: | Brass |
| Contact Plating: | Tin |
| Circuit Application: | Power |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | .508 µm |
| Contact Termination Plating Thickness: | .508 µm |
| Wire Size: | 24 AWG, 26 AWG, 28 AWG, 30 AWG |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | 1.02 - 2.29 mm |
| Part Aliases: | 0002061132 1855-(P901)L |
| SKU: | MOL02-06-1132 |

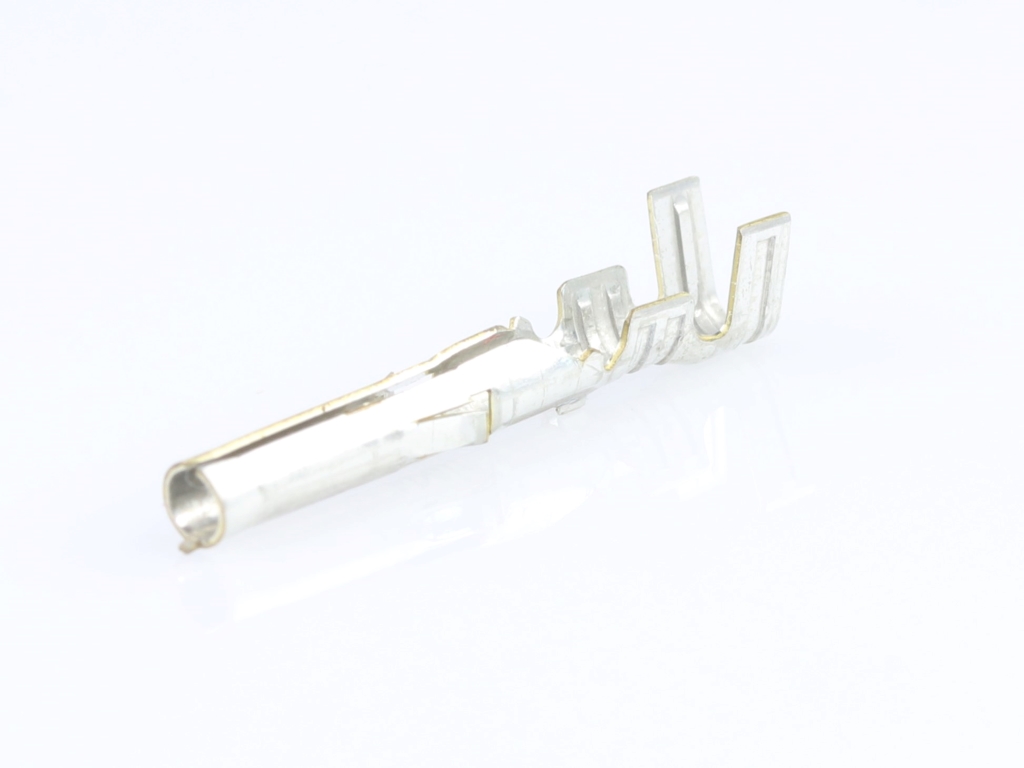

02-06-1132
Specifications
Detailed Description
Introducing the 02-06-1132, a female Standard .062" connector designed for efficient power transmission in various applications. Featuring brass contacts with tin plating, this connector ensures reliable conductivity. The crimp or compression termination method accommodates 24-30 AWG wires, with insulation diameters ranging from 1.02 to 2.29 mm. With a contact mating area plating thickness of .508 µm, this connector guarantees long-lasting performance. Packaged in a convenient bag, it is RoHS compliant and suitable for use in a wide range of industries. Upgrade your connectivity with the 02-06-1132.
