| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | LEMO |
| Manufacturer Part Number: | LEMO FGG.0B.304.CLAD52Z |
| Gender: | Male |
| Housing Material: | Brass |
| Number of Contacts: | 4 |
| Termination Method: | Solder |
| IP Rating: | IP50 |
| Shell Size: | 0B |
| Wire Size: | 30 to 22 AWG |
| Current Rating: | 7 A |
| Voltage Rating: | 1.2 kV |
| Insert Arrangement: | 0B-304 |
| Locking Mechanism: | Push-Pull |
| Operating Temperature: | -55 to 250 °C |
| Mounting Angle: | Straight |
| Mounting Type: | Cable Mount |
| SKU: | LEMFGG.0B.304.CLAD52Z |
FGG.0B.304.CLAD52Z
| ICC Number: | LEMFGG.0B.304.CLAD52Z |
| Manufacturer: | LEMO |
| Manufacturer Number: | FGG.0B.304.CLAD52Z |
| Datasheet: | Catalog |
| ECAD Model: |
Description:

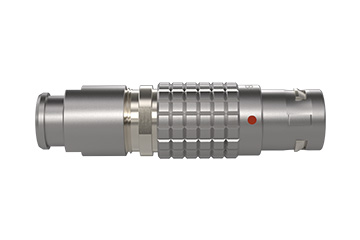

STRAIGHT PLUG SIZE 0B-SERIES 5
