| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Weidmuller |
| Manufacturer Part Number: | Weidmuller 1511060000 |
| Connector Type: | Header |
| Housing Material: | Polybutylene Terephthalate |
| Number of Rows: | 1 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Tin |
| Pitch: | 0.2 in |
| Number of Positions: | 9 |
| Housing Color: | Orange |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 18 A |
| Voltage Rating: | 400 V |
| Operating Temperature: | -50 to 100 °C |
| Mounting Angle: | Right Angle |
| Mounting Type: | PCB Mount, Through Hole |
| SKU: | WEI1511060000 |
1511060000
| ICC Number: | WEI1511060000 |
| Manufacturer: | Weidmuller |
| Manufacturer Number: | 1511060000 |
| Datasheet: | Datasheet |
| ECAD Model: | |
Description:

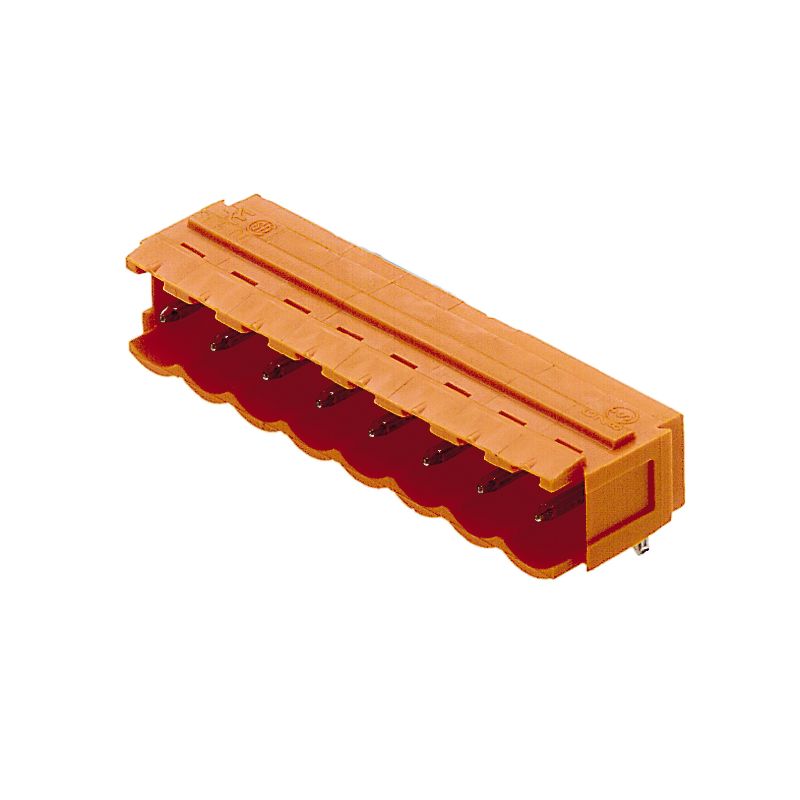

SL 5.08/09/90B 3.2SN OR BXNR
Specifications
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Weidmuller 255-406 | PCB TERMINAL BLOCK |  |
 | Weidmuller 1148030000 | SL 5.08HC/02/90B 3.2SN OR R20 | |
 | Weidmuller 1154840000 | SL 5.08HC/09/90B 3.2SN OR BX COUPLING MEANS (PL) | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 12/31/2023 | WEI2017-265 - EOL. eND oF lIFE For a few articles, we figured out, that our customer need more time to change to the follow up article. We made the decision that for the product families • BL 5.0x • BLZ 5.0x • BLZF 5.0x • SL 5.08 • SLZF 5.08 the date of the final cancellation was postponed to the end of 2023. This is also the last date to place an order. please contact support for parts that have On request as a replacement. LTB 12/31/23 | Download | |||
| 07/30/2023 | WEI2017-265rev - Last time buy Adjusted. Pulling EOL & LTB to 7/30/23, from previous mentioned 12/31/23. | Download | |||
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
