95501-2441

Heilind Number:	MOL95501-2441
Manufacturer:	Molex
Manufacturer Number:	95501-2441
Datasheet:	Drawing
ECAD Model:

Description:

Modular Jack, Right Angle, Through Hole , 4/4,Low Profile, Tray

More >>

Specifications

Attribute	Value
Product Category:	RJ Connectors & Kits RJ Connectors
Manufacturer:	Molex
Manufacturer Part Number:	Molex 95501-2441
Color:	Black
Series:	95501 - Modular Jack 4/4
Amperage:	1.5 A
Connector Type:	Modular Jack 4/4
Gender:	Female
Mount Type:	Surface Mount
Termination Method:	Through Hole
Contact Material:	Copper Alloy
Contact Plating:	Gold Over Palladium Nickel
Body Orientation:	Right Angle
Pitch:	1.02 mm
Voltage:	125 V DC
Material:	High Temperature Thermoplastic
Number of Ports:	1
Orientation:	90° Angle
Component Type:	PCB Jack
Packaging:	Tray
Operating Temperature Range:	-40 - 85 °C
Contact Mating Area Plating:	Gold over Palladium Nickel
Contact Mating Area Plating Thickness:	.051 µm, .6 µm
Mating Cycles:	2500
PCB Locator:	Yes
PCB Retention:	Yes
Contact Termination Plating Thickness:	1.905 µm
PCB Thickness (Recommended):	1.57 mm
UL Agency Certification:	E107635
Contact Termination Plating:	Tin
Maximum Solder Process Temperature:	260 °C
Lead Free Process Capability:	WAVE
Duration at Max. Process Temperature (seconds):	005
Max. Cycles at Max. Process Temperature:	001
Termination Pitch:	1.27 mm
Surface Mount Compatible:	Yes
Waterproof Dustproof:	No
Non Magnetic:	Yes
Material Flammability Standard:	94V-0
Part Aliases:	0955012441
SKU:	MOL95501-2441

Detailed Description

The 95501-2441 is a high-quality Modular Jack designed for reliable connectivity in electronic applications. Featuring a Right Angle, Through Hole mount type, this female connector is perfect for surface mount installation. With a low profile design and a tray packaging for convenience, it is ideal for space-restricted environments. Constructed with durable High Temperature Thermoplastic material and gold over Palladium Nickel contact plating, it ensures longevity and excellent signal transmission. This RJ Connector is RoHS compliant and UL agency certified, meeting stringent quality and safety standards. Suitable for a wide range of industries, it offers a 90° Angle orientation and 1.5A amperage, making it a versatile and dependable choice for your connectivity needs.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 171850-0400	Micro-Fit TPA Receptacle Housing, Single Row, 4 Circuits, UL 94V-0, Low-Halogen, Black
	Molex 19023-0003	InsulKrimp Quick Disconnect, Male, for 18-22 (0.80-0.35mm?) Wire, Box, Tab 4.75 x 0.51mm
	Molex 39-01-2025	Mini-Fit Jr. Receptacle Housing, Dual Row, 2 Circuits, UL 94V-0, Natural
	Molex 39-01-2066	Mini-Fit Jr. Plug Housing, Dual Row, 6 Circuits, UL 94V-0, with Panel Mounting Ears, Natural
	Molex 39-01-3023	Mini-Fit Jr. Plug Housing, Dual Row, 2 Circuits, UL 94V-2, without Panel Mounting Ears, Natural
	Molex 39-30-0020	Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 2 Circuits, PA Polyamide Nylon 6/6 94V-0, 2.54µm Matte Tin (Sn) Plating
	Molex 39-30-0060	Mini-Fit Jr. Header, Dual Row, Right-Angle, with Snap-in Plastic Peg PCB Lock, 6 Circuits, PA Polyamide Nylon 6/6 94V-0, 2.54µm Matte Tin (Sn) Plating
	Molex 43020-0201	Micro-Fit 3.0 Plug Housing, Dual Row, 2 Circuits, UL 94V-0, Low-Halogen, Black
	Molex 50-57-9402	SL Crimp Housing, Single Row, Version G, Positive Latch, 2 Circuits, Black
	Molex 70107-0009	SL Wire-to-Wire Crimp Housing, Single Row, Version A, without Mounting Ears, 10 Circuits, Black

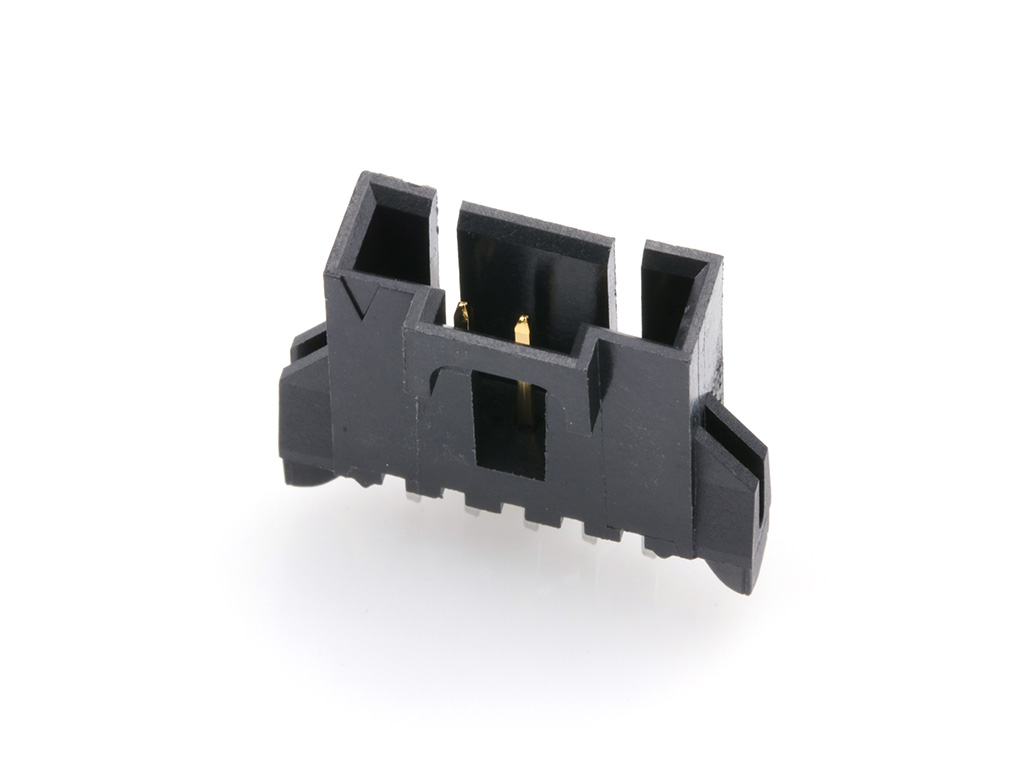

	Molex 70545-0039	2.54mm Pitch SL Header, Single Row 3.05mm Pocket Vertical, Shrouded, with Press-fit Plastic Peg, 5 Circuits, 0.38
