| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 90327-0320 |
| Color: | White |
| Series: | 90327 - Picoflex |
| Amperage: | 1.2 A |
| Connector Type: | Picoflex |
| Housing Material: | Polyester |
| Number of Contacts: | 20 |
| Number of Rows: | 2 |
| Termination Method: | IDT or Pierce |
| Contact Material: | Phosphor Bronze |
| Contact Plating: | Tin |
| Maximum Operating Temperature: | 105 °C |
| Minimum Operating Temperature: | -40 °C |
| Pitch: | 1.27 mm |
| Voltage: | 250 V |
| Material: | Polyester |
| Mount Angle: | Vertical |
| Component Type: | Housing |
| Wire Type: | Ribbon Cable |
| Operating Temperature Range: | -40 - 105 °C |
| Contact Mating Area Plating: | Tin |
| Number of Contacts Loaded: | 20 |
| Mating Cycles: | 30 |
| PCB Locator: | No |
| PCB Retention: | Without |
| Polarized to PCB: | No |
| Polarized to Mate: | Yes |
| Wire Size: | 26 AWG, 28 AWG |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | 1 mm |
| Termination Pitch: | 1.27 mm |
| Glow Wire Capable: | No |
| Lock to Mating Part: | Yes |
| Stackable: | No |
| Shroud Type: | Fully |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0903270320 |
| SKU: | MOL90327-0320 |
90327-0320
| Heilind Number: | MOL90327-0320 |
| Manufacturer: | Molex |
| Manufacturer Number: | 90327-0320 |
| Datasheet: | Packaging Specifications |
| ECAD Model: | |
Description:

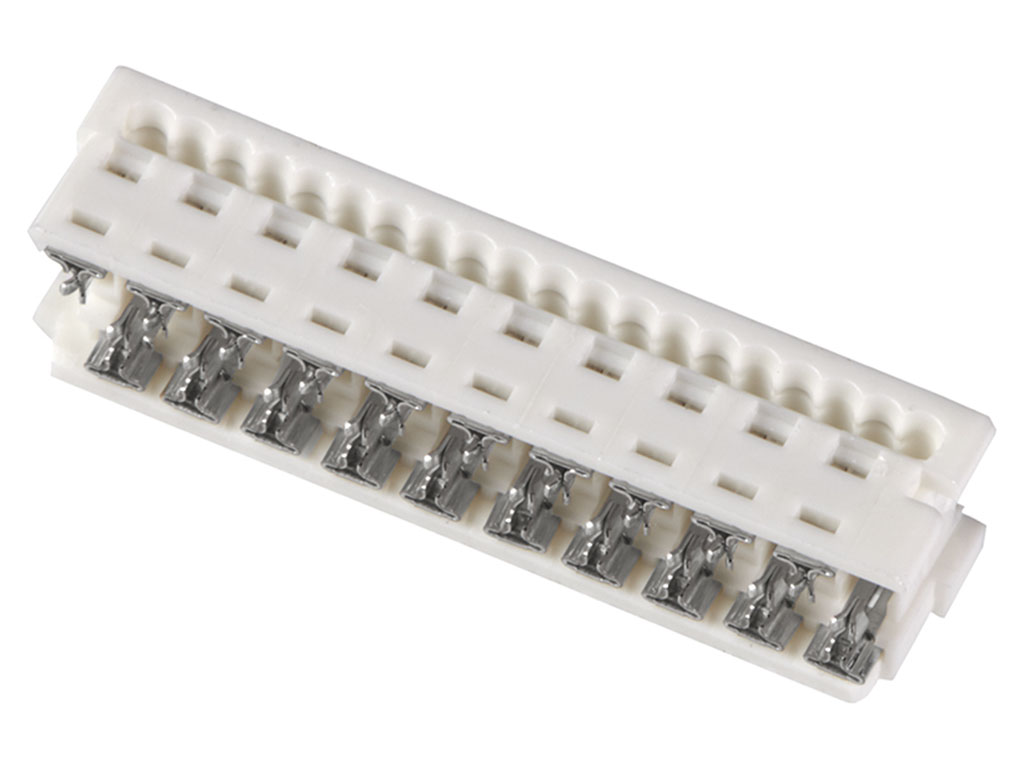

Picoflex PF-50, Low Profile, IDT Receptacle, 20 Circuits, White, Tin (Sn) Plated, Bag
More >>Specifications
Detailed Description
The 90327-0320 is a Picoflex PF-50 Low Profile IDT Receptacle featuring 20 circuits for efficient connectivity. With a sleek white housing and tin (Sn) plated contacts, this connector ensures both visual appeal and reliable performance. Constructed from durable polyester, it offers a wide operating temperature range from -40 to 105 °C, making it suitable for various environments. Each contact is made of phosphor bronze with tin plating, accommodating wire sizes of 26 AWG and 28 AWG. Designed for use with ribbon cables, this connector is ideal for high-density applications. RoHS compliant and with a voltage rating of 250 V, it meets stringent safety standards while providing excellent functionality. Whether for industrial or consumer electronics, the 90327-0320 is a dependable choice for your connectivity needs.
