| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19056-0023 |
| Series: | 19056 - VersaKrimp |
| Connector Type: | VersaKrimp |
| Termination Method: | Crimp or Compression |
| Contact Material: | Copper |
| Stud Size: | 1/4" (M6) |
| Insulation Material: | None |
| Packaging: | Carton |
| Operating Temperature Range: | 149 °C |
| Contact Mating Area Plating: | Tin |
| Wire Size: | 18 AWG, 20 AWG, 22 AWG, .25 - 1.5 mm² |
| CSA Agency Certification: | LR18689 |
| UL Agency Certification: | E32244 |
| Barrel Type: | Closed - Brazed |
| Part Aliases: | 0190560023 A-322-14 |
| SKU: | MOL19056-0023 |
19056-0023
| Heilind Number: | MOL19056-0023 |
| Manufacturer: | Molex |
| Manufacturer Number: | 19056-0023 |
| Datasheet: | Product Specification |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the 19056-0023 RING VERSAKRIMP (A-322-14) SPM, a versatile and reliable crimp terminal for your electrical connections. This high-quality connector, part of the 19056 - VersaKrimp series, features a durable copper construction with tin plating on the contact mating area, ensuring excellent conductivity and corrosion resistance. Suitable for wire sizes ranging from 22 AWG to 18 AWG, or .25 to 1.5 mm², this terminal is incredibly versatile. With a 1/4" (M6) stud size and the option for crimp or compression termination, it offers secure and efficient connectivity in a wide range of applications. Certified by LR18689 and E32244, as well as RoHS compliant, you can trust in the quality and reliability of this product. Whether for industrial, commercial, or residential use, the 19056-0023 is the perfect solution for your crimp terminal needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 19067-0105 | NylaKrimp Funnel Entry Ring Tongue Terminal for 1/0 AWG Wire, Stud Size 1/2 (M12) |  |

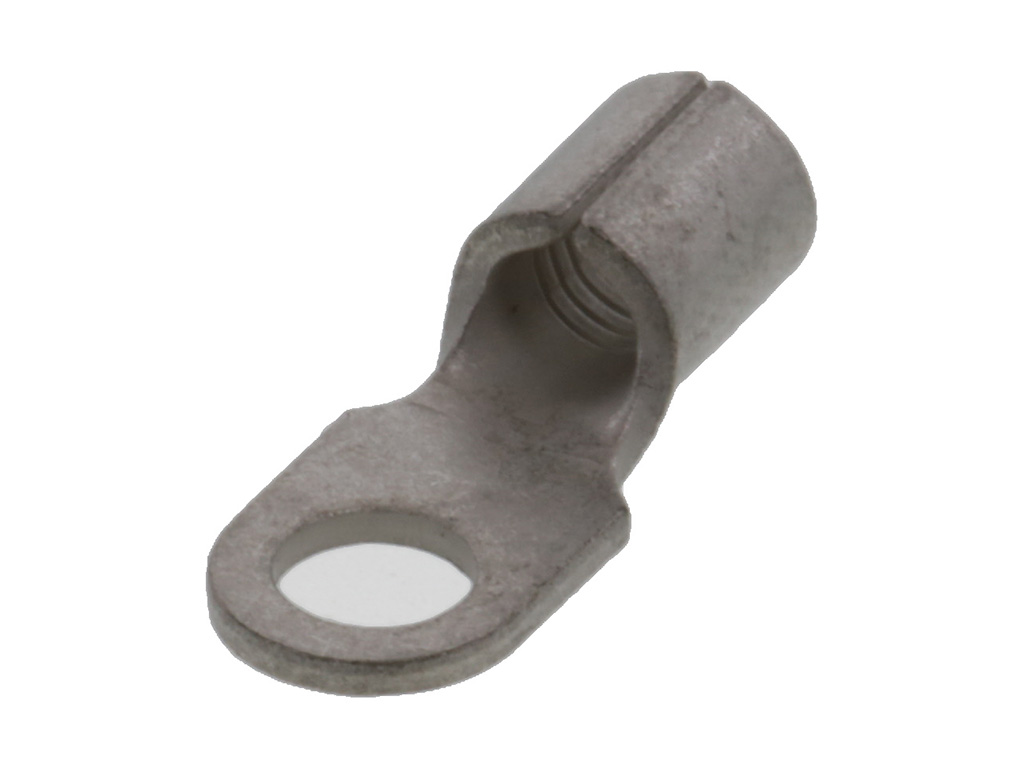

 | Molex 19069-0233 | Krimptite Ring Tongue Terminal for 10-12 AWG Wire, Stud Size 8 (M4), Length 18.82mm | |
 | Molex 19071-0250 | InsulKrimp Ring Tongue Terminal for 4 AWG Wire | |
 | Molex 19071-0281 | InsulKrimp Ring Tongue Terminal for 2 AWG Wire | |
 | Molex 47725-6010 | MX150 Male Connector, Panel Mount, Dual Row, 12 Circuits, Polarization A, Black Housing, Blue Gasket | |
 | Molex 50351-8000 | 2.50mm Pitch Mini-Lock Wire-to-Board and Wire-to-Wire Crimp Terminal, Phosphor Bronze, Reel, for 51102, 51103 and 51163 Housings | |
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 02/18/2019 | 506408 - Packaging Method/Quantity Changing. This letter is to inform you that the part(s) referenced in this notice will undergo packaging specification changes that may include new container sizes, quantities or changes to the label. No changes will be made to the product as a result of this change. | Download | |||
Availability
Immediate Shipment:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
Additional Resources
| Attribute | Value |
|---|---|
| Molex: | 19056-0023 |
| Other Names: | 0190560023 A-322-14 |
