| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 90327-0314 |
| Color: | White |
| Series: | 90327 - Picoflex |
| Amperage: | 1.2 A |
| Connector Type: | Picoflex |
| Housing Material: | Polyester |
| Number of Contacts: | 14 |
| Number of Rows: | 2 |
| Termination Method: | IDT or Pierce |
| Contact Material: | Phosphor Bronze |
| Contact Plating: | Tin |
| Maximum Operating Temperature: | 105 °C |
| Minimum Operating Temperature: | -40 °C |
| Pitch: | 1.27 mm |
| Voltage: | 250 V |
| Material: | Polyester |
| Mount Angle: | Vertical |
| Component Type: | Housing |
| Wire Type: | Ribbon Cable |
| Operating Temperature Range: | -40 - 105 °C |
| Contact Mating Area Plating: | Tin |
| Number of Contacts Loaded: | 14 |
| Mating Cycles: | 30 |
| PCB Locator: | No |
| PCB Retention: | Without |
| Polarized to PCB: | No |
| Polarized to Mate: | Yes |
| Wire Size: | 26 AWG, 28 AWG |
| Contact Termination Plating: | Tin |
| Wire Insulation Diameter: | 1 mm |
| Termination Pitch: | 1.27 mm |
| Glow Wire Capable: | No |
| Lock to Mating Part: | Yes |
| Stackable: | No |
| Shroud Type: | Fully |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0903270314 |
| SKU: | MOL90327-0314 |
90327-0314
Specifications
Detailed Description

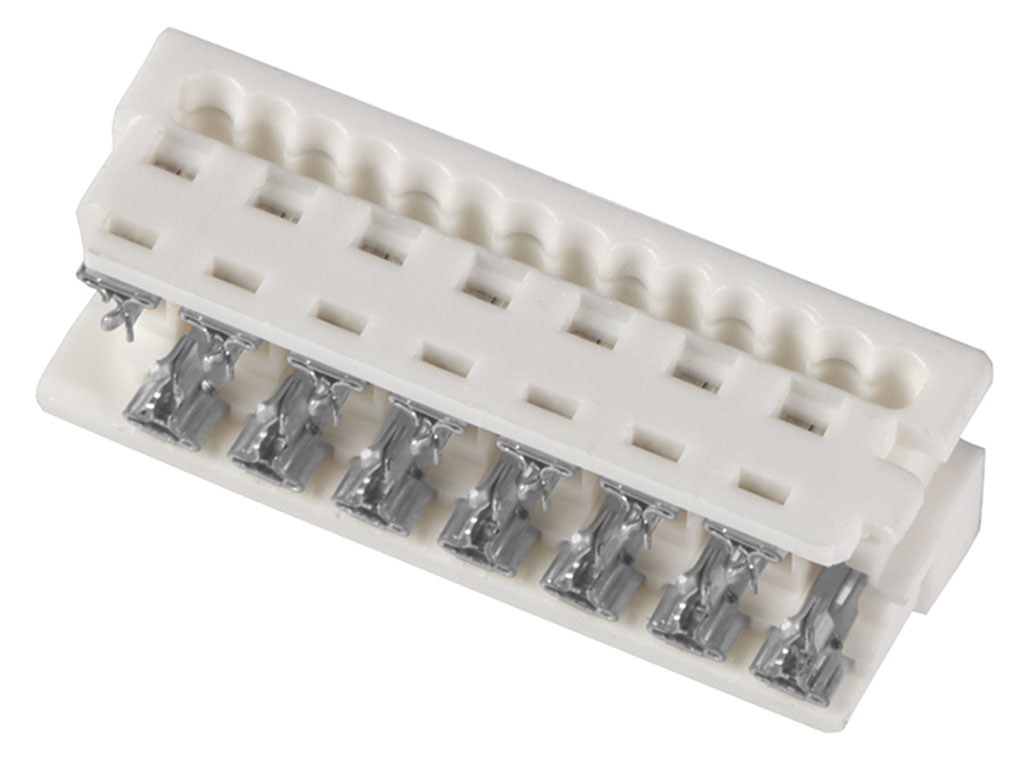

Introducing the Picoflex PF-50 Low Profile IDT Receptacle, a versatile connectivity solution for your electronic devices. With 14 circuits housed in a durable white polyester casing, this connector features tin (Sn) plated contacts for reliable signal transmission. Operating within a wide temperature range from -40 to 105 °C, it is suitable for various environments. Each contact is made of high-quality phosphor bronze with tin plating, accommodating wire sizes of 26 AWG and 28 AWG. Designed for easy installation with an IDT or Pierce termination method and a 1.27 mm pitch, this connector ensures a secure and efficient connection. With its compact housing and vertical mount angle, it is ideal for space-constrained applications. RoHS compliant and with a voltage rating of 250 V, the Picoflex PF-50 guarantees safety and performance. Upgrade your connectivity with this reliable and high-speed IDC ribbon cable connector.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 09-50-8073 | KK 3.96mm Crimp Terminal Housing, Friction Ramp, 7 Circuits, Natural |  |
 | Molex 09-50-8093 | KK 3.96mm Crimp Terminal Housing, Friction Ramp, 9 Circuits, Natural | |
 | Molex 19215-0018 | VersaKrimp Butt Splice for 14-16 AWG Wire | |
 | Molex 19221-0227 | Compression Style Ring Tongue Terminal for 6 AWG Wire, Stud Size 1/4 (M6), Plated, Wide Pad | |
 | Molex 39-01-4043 | Mini-Fit Jr. Plug Housing, Single Row, 4 Circuits, UL 94V-0, with Panel Mounting Ears, Natural | |
 | Molex 50-57-9402 | SL Crimp Housing, Single Row, Version G, Positive Latch, 2 Circuits, Black | |
 | Molex 87568-1073 | Milli-Grid Cable-to-Board Receptacle, Dual Row, IDT, Lead-Free, 10 Circuits, 0.38 | |
 | Molex 90327-0306 | Picoflex PF-50, Low Profile, IDT Receptacle, 6 Circuits, White, Tin (Sn) Plated, Bag | |
 | Molex 90327-0308 | Picoflex PF-50, Low Profile, IDT Receptacle, 8 Circuits, White, Tin (Sn) Plated, Bag | |

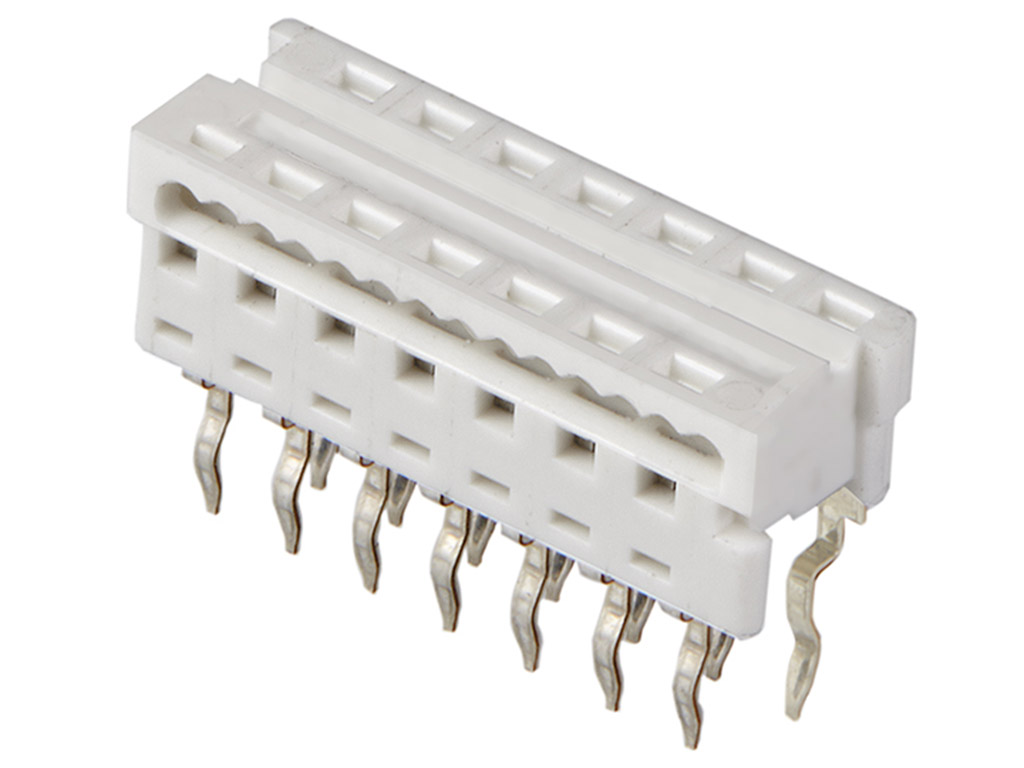

 | Molex 90584-1314 | 1.27mm Pitch Picoflex PF-50 IDT Receptacle, Low Profile, Board-In, 14 Circuits | |
