| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 19221-0227 |
| Series: | 19221 - Battery Cable Lug |
| Termination Method: | Crimp or Compression |
| Contact Plating: | Tin |
| Stud Size: | 1/4" (M6) |
| Insulation Material: | None |
| Contact Mating Area Plating: | Tin |
| Contact Mating Area Plating Thickness: | 4.064 µm |
| Contact Termination Plating Thickness: | 4.064 µm |
| Wire Size: | 10.5 - 16.8 mm², 6 AWG |
| Barrel Type: | Closed |
| Part Aliases: | 0192210227 BCL-614-WP-PL |
| SKU: | MOL19221-0227 |
19221-0227
| Heilind Number: | MOL19221-0227 |
| Manufacturer: | Molex |
| Manufacturer Number: | 19221-0227 |
| Datasheet: | Product Specification |
| ECAD Model: | |
Description:

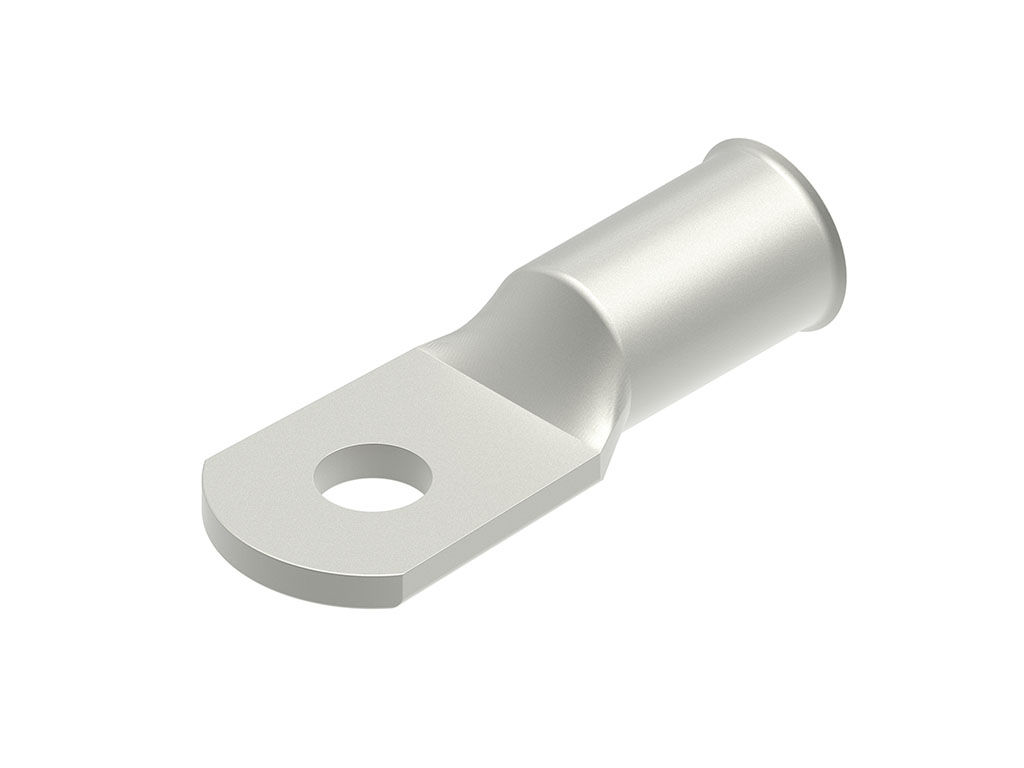

Compression Style Ring Tongue Terminal for 6 AWG Wire, Stud Size 1/4 (M6), Plated, Wide Pad
More >>Specifications
Detailed Description
Compression Style Ring Tongue Terminal for 6 AWG Wire, Stud Size 1/4 (M6), Plated, Wide Pad. This battery cable lug, part number 19221-0227, offers a secure and durable termination method for your electrical connections. With a tin contact plating and a wide pad for enhanced connectivity, this terminal is suitable for a variety of applications. Its closed barrel design ensures reliable performance, while its RoHS compliance makes it environmentally friendly. Compatible with 6 AWG wire and featuring a 1/4" (M6) stud size, this terminal is a versatile solution for your crimping needs.
