87834-0619

Heilind Number:	MOL87834-0619
Manufacturer:	Molex
Manufacturer Number:	87834-0619
Datasheet:	Product Specification
ECAD Model:

Description:

2.54mm Pitch C-Grid Header, Dual Row, Low Profile, Vertical, Shrouded, 6 Circuits, 0.13

More >>

Specifications

Attribute	Value
Product Category:	PC Board Pin & Receptacle Connectors PCB Pin Headers
Manufacturer:	Molex
Manufacturer Part Number:	Molex 87834-0619
Color:	Black
Series:	87834 - C-Grid
Amperage:	2.5 A
Connector Type:	C-Grid
Number of Contacts:	6
Number of Rows:	2
Termination Method:	Through Hole
Body Orientation:	Straight
Pitch:	2.54 mm
Voltage:	250 VDC
Material:	Polyester
Orientation:	Vertical
Keying:	No
Tail Length:	3.43 mm
Packaging:	Tray
Operating Temperature Range:	-55 - 120 °C
Contact Mating Area Plating:	Gold
Contact Mating Area Plating Thickness:	.127 µm
Number of Contacts Loaded:	6
PCB Locator:	No
PCB Retention:	Without
Polarized to PCB:	Yes
Contact Termination Plating Thickness:	1.905 µm
Polarized to Mate:	Yes
Connector System:	Wire to Board
UL Agency Certification:	E29179
Contact Termination Plating:	Tin
Maximum Solder Process Temperature:	235 °C
Lead Free Process Capability:	WAVE
Duration at Max. Process Temperature (seconds):	003
Max. Cycles at Max. Process Temperature:	001
Termination Pitch:	2.54 mm
Glow Wire Capable:	No
Guide to Mating Part:	No
Lock to Mating Part:	No
Stackable:	No
Breakaway:	No
Make First / Break Last:	No
Shroud Type:	Fully
Material Flammability Standard:	94V-0
Part Aliases:	0878340619
SKU:	MOL87834-0619

Detailed Description

Introducing the 87834-0619, a high-performance black C-Grid connector designed for reliable wire-to-board connections. With a low amperage rating of 2.5 A and a voltage capacity of 250 VDC, this two-row connector features six gold-plated contacts for enhanced conductivity. Made of durable polyester, it is suitable for a wide range of applications and operates efficiently in temperatures ranging from -55 to 120 °C. Its straight body orientation and through-hole termination method ensure secure and stable connections. RoHS compliant and lead-free process capable, the 87834-0619 is a trusted solution for your PCB pin header needs.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 19419-0008	MX150L 2 Circuit Plug for 18-22 AWG Wire
	Molex 22-28-4063	KK 254 Breakaway Header, Vertical, 6 Circuits, 0.38

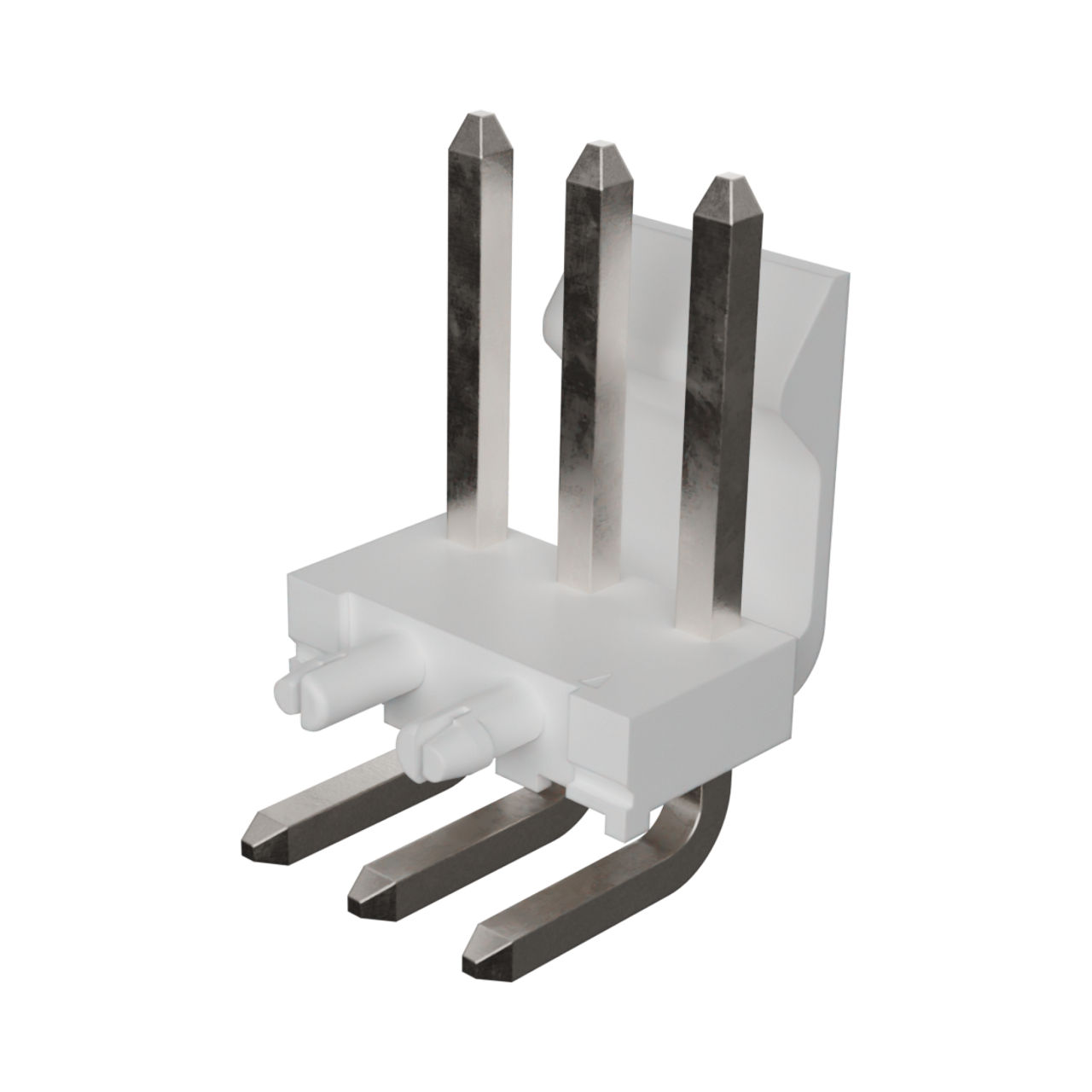

	Molex 26-60-7030	KK 396 Solid Right-Angle Header, Friction Lock, with Snap-in Plastic Peg PCB Lock, 3 Circuits, Tin (Sn) Plating
