87831-2020

Heilind Number:	MOL87831-2020
Manufacturer:	Molex
Manufacturer Number:	87831-2020
Datasheet:	Drawing
ECAD Model:

Description:

2.00mm Pitch Milli-Grid Header, Vertical, Through Hole, Shrouded, 20 Circuits, 0.38

More >>

Specifications

Attribute	Value
Product Category:	PC Board Pin & Receptacle Connectors PCB Pin Headers
Manufacturer:	Molex
Manufacturer Part Number:	Molex 87831-2020
Color:	Black
Series:	87831 - Milli-Grid
Amperage:	2 A
Connector Type:	Milli-Grid
Number of Contacts:	20
Number of Rows:	2
Termination Method:	Through Hole
Contact Material:	Phosphor Bronze
Body Orientation:	Straight
Pitch:	2 mm
Voltage:	125 V
Material:	Nylon
Orientation:	Vertical
Keying:	No
Tail Length:	2.5 mm
Operating Temperature Range:	-55 - 105 °C
Contact Mating Area Plating:	Gold
Contact Mating Area Plating Thickness:	.381 µm
Number of Contacts Loaded:	20
Mating Cycles:	100
PCB Locator:	No
PCB Retention:	Without
Polarized to PCB:	No
Contact Termination Plating Thickness:	1.905 µm
PCB Thickness (Recommended):	1.6 mm
Connector System:	Wire to Board
Contact Termination Plating:	Tin
Maximum Solder Process Temperature:	260 °C
Lead Free Process Capability:	WAVE
Duration at Max. Process Temperature (seconds):	010
Max. Cycles at Max. Process Temperature:	001
Termination Pitch:	2 mm
Glow Wire Capable:	No
Guide to Mating Part:	No
Lock to Mating Part:	Yes
Stackable:	No
Surface Mount Compatible:	Yes
Breakaway:	No
Make First / Break Last:	No
Shroud Type:	Yes
Material Flammability Standard:	94V-0
Part Aliases:	0878312020
SKU:	MOL87831-2020

Detailed Description

The 87831-2020 is a high-performance PCB pin header connector from the Milli-Grid 87831 series, designed for reliable power and signal transmission in black. Featuring 20 gold-plated contacts with a phosphor bronze construction, this connector offers a current rating of 2 A and a voltage of 125 V. Its through-hole termination method and straight body orientation ensure secure and stable connections, while the nylon material and vertical orientation provide durability and space-saving benefits. With UL and CSA certifications, this connector is suitable for a wide range of applications and is RoHS compliant for environmentally friendly use. Its tube packaging and operating temperature range of -55 to 105 °C make it ideal for industrial and commercial settings. Whether for wire-to-board connections or other PCB applications, the 87831-2020 guarantees exceptional performance and longevity.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 02-09-2103	2.36mm Diameter, Standard .093 Pin and Socket Crimp Terminal, Series 1190, Male, with Tin (Sn) Plated Brass Contact, 14-20 AWG, Bag
	Molex 10-84-4040	6.35mm Pitch MLX Power Connector Header, Vertical, 4 Circuits, PA Polyamide Nylon 6/6 94V-2, Tin (Sn) Plating, White
	Molex 22-27-2021	KK 254 Wire-to-Board Header, Vertical, with Friction Lock, 2 Circuits, Tin (Sn) Plating
	Molex 34690-0200	Stac64 Vertical Header Assembly, 20 Circuits, Polarization A, Black, Tray
	Molex 39-29-0023	Mini-Fit Jr. Vertical Header, 4.20mm Pitch, Dual Row, 2 Circuits, without Snap-in Plastic Peg PCB Lock, Gold, Natural
	Molex 43045-0213	Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 2 Circuits, with PCB Polarizing Peg, Gold, Glow-Wire Capable, Black
	Molex 43045-0824	Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 8 Circuits, with PCB Press-fit Metal Retention Clip, Tin, Glow-Wire Capable, Black

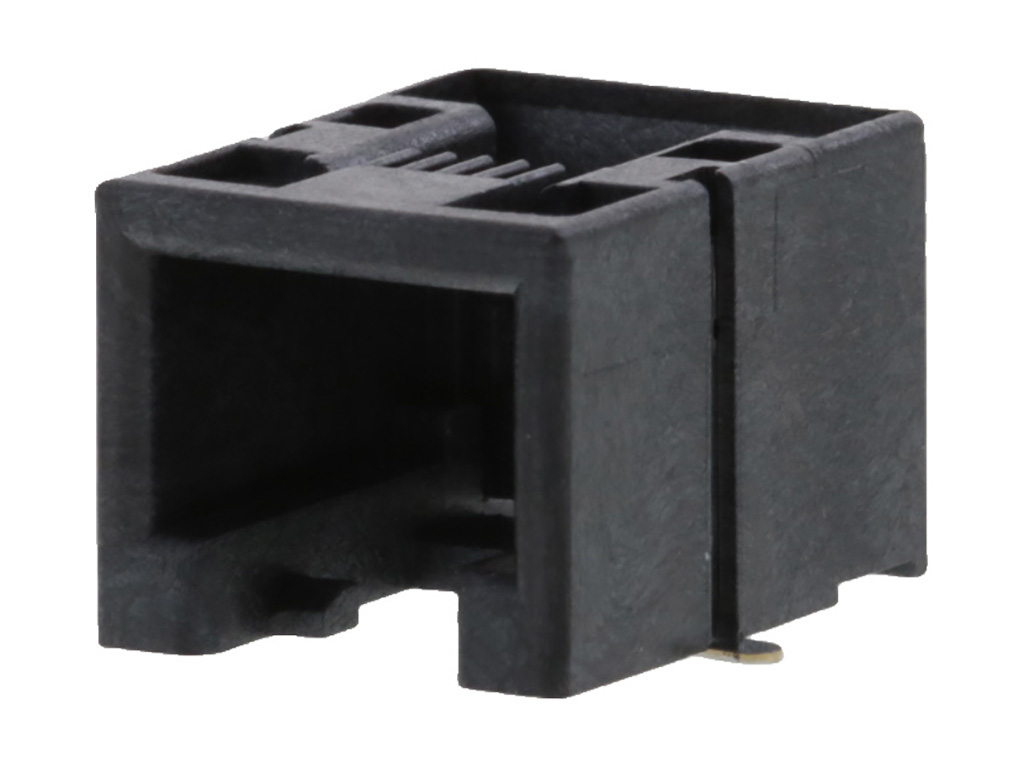

	Molex 85502-5007	Modular Jack, Right Angle, Surface Mount, 6/6, Low Profile, Tape & Reel
