87831-1241

Heilind Number:	MOL87831-1241
Manufacturer:	Molex
Manufacturer Number:	87831-1241
Datasheet:	Product Specification
ECAD Model:

Description:

2.00mm Pitch Milli-Grid Header, Vertical, Through Hole, Shrouded, 12 Circuits, 0.38

More >>

Specifications

Attribute	Value
Product Category:	PC Board Pin & Receptacle Connectors PCB Pin Headers
Manufacturer:	Molex
Manufacturer Part Number:	Molex 87831-1241
Color:	Black
Series:	87831 - Milli-Grid
Amperage:	2 A
Connector Type:	Milli-Grid
Number of Contacts:	12
Number of Rows:	2
Termination Method:	Through Hole
Contact Material:	Phosphor Bronze
Body Orientation:	Straight
Pitch:	2 mm
Voltage:	125 V
Material:	Nylon
Orientation:	Vertical
Keying:	No
Tail Length:	2.5 mm
Packaging:	Tube
Operating Temperature Range:	-55 - 105 °C
Contact Mating Area Plating:	Gold
Contact Mating Area Plating Thickness:	.381 µm
Number of Contacts Loaded:	12
Mating Cycles:	100
PCB Locator:	No
PCB Retention:	Without
Polarized to PCB:	No
Contact Termination Plating Thickness:	1.905 µm
PCB Thickness (Recommended):	1.6 mm
Connector System:	Wire to Board
CSA Agency Certification:	LR19980
UL Agency Certification:	E29179
Contact Termination Plating:	Tin
Maximum Solder Process Temperature:	260 °C
Lead Free Process Capability:	WAVE
Duration at Max. Process Temperature (seconds):	010
Max. Cycles at Max. Process Temperature:	001
Termination Pitch:	2 mm
Glow Wire Capable:	No
Guide to Mating Part:	No
Lock to Mating Part:	Yes
Stackable:	No
Surface Mount Compatible:	Yes
Breakaway:	No
Make First / Break Last:	No
Shroud Type:	Yes
Material Flammability Standard:	94V-0
Part Aliases:	0878311241
SKU:	MOL87831-1241

Detailed Description

Introducing the 87831-1241, a high-performance Black Milli-Grid Connector designed for precision applications. With a low amperage of 2A and 12 gold-plated contacts, this connector ensures reliable power and signal transmission. Featuring a straight body orientation and through-hole termination, it offers secure and stable connectivity on PCBs. Crafted with durable Nylon and phosphor bronze contact material, it guarantees longevity even in harsh environments. UL and CSA certified, with RoHS compliance, this connector meets international standards for quality and safety. Perfect for wire-to-board connections, it is ideal for use in a wide range of electronic devices. Upgrade your connectivity with the 87831-1241 Milli-Grid Connector.

Frequently Bought Together

Product	Part #	Description	Stock
	Molex 15-91-2100	2.54mm Pitch C-Grid Header, Surface Mount, Dual Row, Vertical, 10 Circuits, Tin (Sn) Plating, without PCB Locator Pegs
	Molex 43045-0802	Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 8 Circuits, with Snap-in Plastic Peg PCB Lock, Gold, Glow-Wire Capable, Black

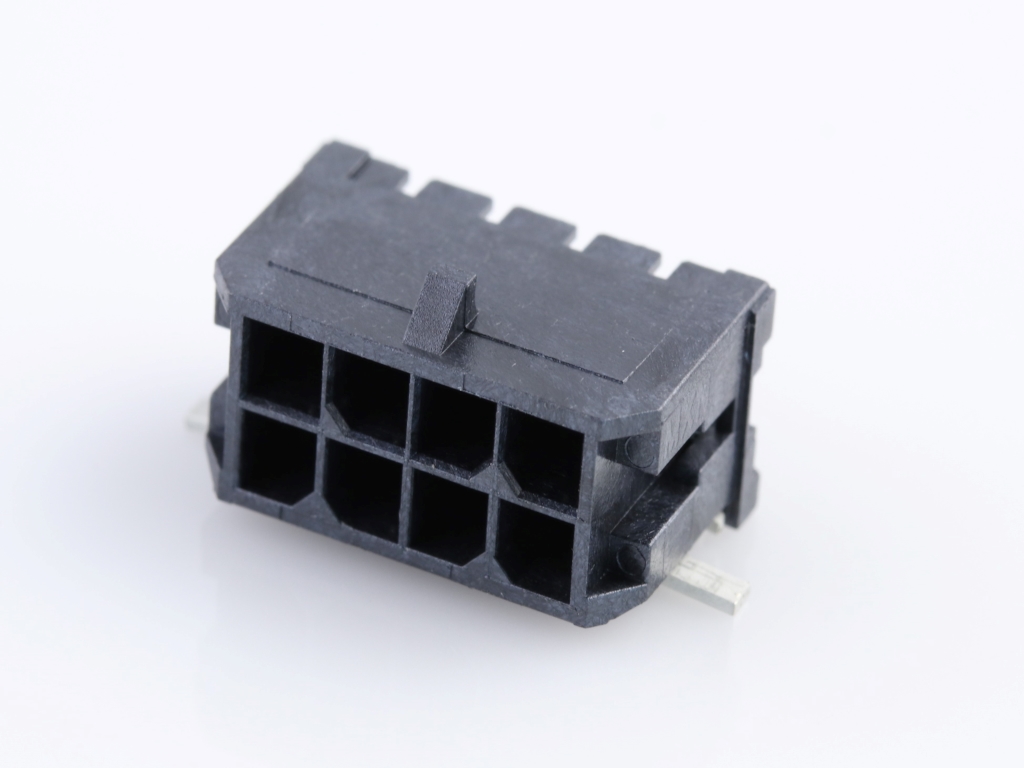

	Molex 43045-0809	Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Dual Row, 8 Circuits, with Solder Tab, Tin, Glow-Wire Capable, Black
