| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 87568-4093 |
| Color: | Black |
| Series: | 87568 - Milli-Grid |
| Amperage: | 1 A |
| Connector Type: | Milli-Grid |
| Gender: | Female |
| Number of Contacts: | 40 |
| Number of Rows: | 2 |
| Termination Method: | IDT or Pierce |
| Contact Material: | Copper Alloy |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -20 °C |
| Pitch: | 2 mm |
| Voltage: | 125 V |
| Material: | Polyester |
| Operating Temperature Range: | -20 - 85 °C |
| Contact Mating Area Plating: | Gold |
| Number of Contacts Loaded: | 40 |
| Mating Cycles: | 100 |
| Polarized to Mate: | Yes |
| Wire Size: | 28 AWG |
| Glow Wire Capable: | No |
| Lock to Mating Part: | Yes |
| Stackable: | No |
| Material Flammability Standard: | 94V-0 |
| Part Aliases: | 0875684093 |
| SKU: | MOL87568-4093 |
87568-4093
| Heilind Number: | MOL87568-4093 |
| Manufacturer: | Molex |
| Manufacturer Number: | 87568-4093 |
| Datasheet: | Product Specification |
| ECAD Model: | |
Description:
Milli-Grid Cable-to-Board Receptacle, Dual Row, IDT, Lead-Free, 40 Circuits, 0.38
More >>Specifications
Detailed Description
Introducing the 87568-4093, a high-performance Milli-Grid Cable-to-Board Receptacle designed for seamless connectivity in electronic applications. This dual-row receptacle features IDT termination, making installation a breeze. With 40 circuits and a low profile of 0.38, it offers versatility without compromising on space. The black polyester housing ensures durability, while the copper alloy contacts with gold plating guarantee reliable signal transmission. Rated for 1 A and 125 V, this connector is suitable for various power and signal applications. With UL and CSA certifications, as well as RoHS compliance, rest assured of its quality and environmental responsibility. Whether for industrial machinery or consumer electronics, the 87568-4093 is the perfect choice for your connectivity needs.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 03-06-1092 | 1.57mm Diameter Standard .062 Pin and Socket Receptacle Housing, 9 Circuits, without Mounting Ears, Natural |  |
 | Molex 03-06-2044 | 1.57mm Diameter Standard .062 Pin and Socket Plug Housing, Dual Row, without Mounting Ears, PA Polyamide Nylon 6/6, UL 94V-2, 4 Circuits, Natural | |
 | Molex 15-04-5104 | 2.54mm SL Interim Clip, 10 Circuits, Polarized | |

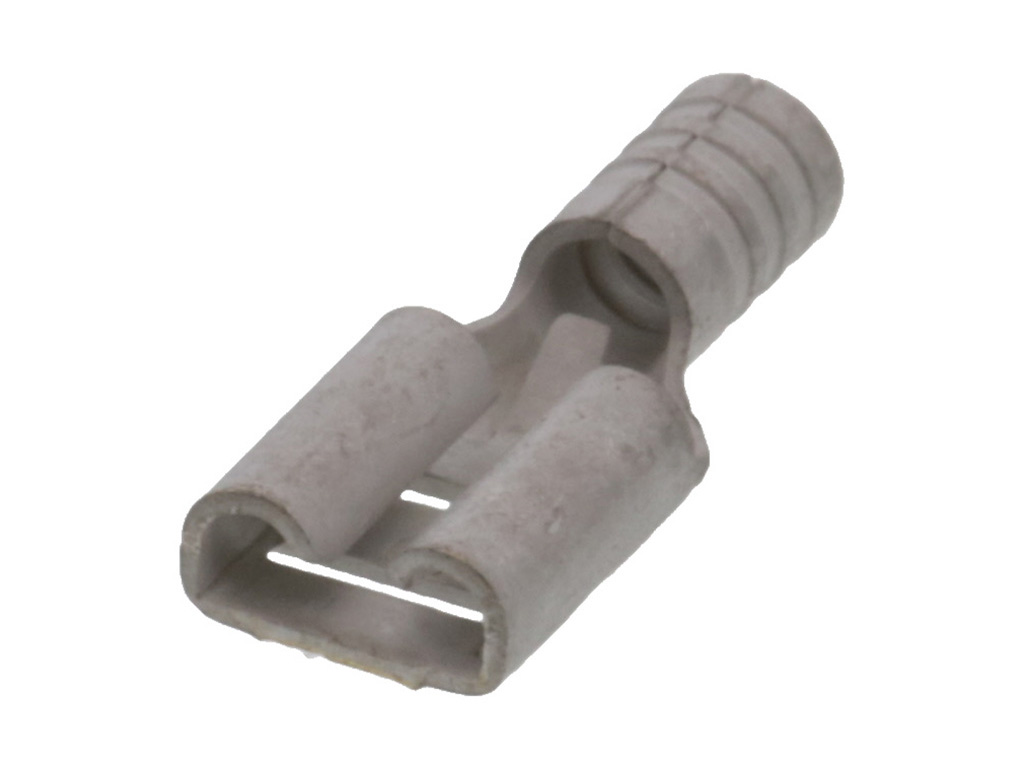

 | Molex 19016-0040 | Krimptite Quick Disconnect, Female, for 14-16 (2.00-1.30mm?) Wire, Box, Tab 4.75 x 0.81mm | |
 | Molex 19019-0006 | Avikrimp Quick Disconnect, Female, for 18-22 (0.80-0.35mm?) Wire, Box, Tab 4.75 x 0.51mm | |

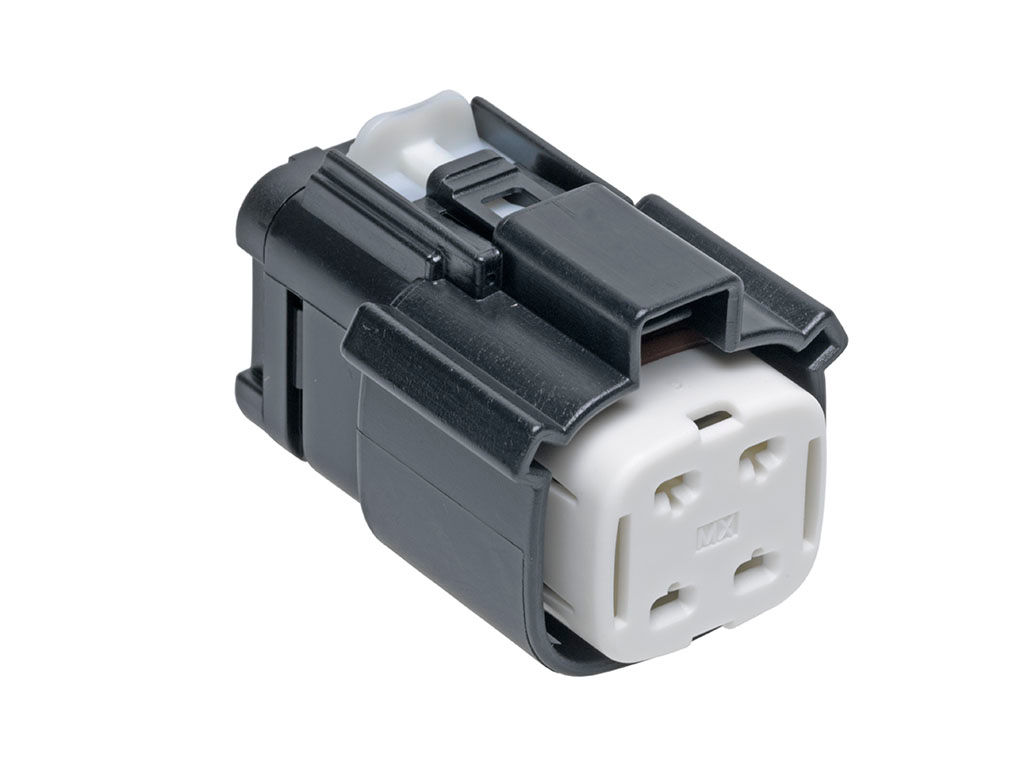

 | Molex 19432-0002 | MX150L 4 Circuit Female Receptacle for 8 AWG Wire, Black | |
