| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Molex |
| Manufacturer Part Number: | Molex 76170-5006 |
| Gender: | Female |
| Housing Material: | High Temperature Plastic |
| Number of Contacts: | 54 |
| Number of Rows: | 9 |
| Contact Plating: | Gold |
| Pitch: | 1.9 mm |
| Tail Length: | 1.2 mm |
| Mating Cycles: | 200 |
| Current Rating: | 0.75 A |
| Voltage Rating: | 30 V |
| Operating Temperature: | -55 to 85 °C |
| Mounting Angle: | Right Angle |
| Mounting Type: | Through Hole |
| SKU: | MOL76170-5006 |
76170-5006
Specifications
Detailed Description
The 76170-5006 is a high-performance 3 Pair Right Angle Daughtercard Receptacle, featuring 54 circuits with a 100 Ohm impedance for reliable signal transmission. With a compact design and 6 columns, this connector is ideal for space-constrained applications. Constructed with a durable High Temperature Thermoplastic body and Gold contact plating, it ensures long-lasting performance even in harsh environments. The lead-free, RoHS-compliant design, along with UL agency certification, guarantees safety and environmental responsibility. Suitable for high-speed data applications, with a data rate of 25 Gb/s and a voltage rating of 30 V AC/DC, this connector is perfect for demanding industrial and commercial settings. With features such as through-hole termination, PCB retention, and polarization, it offers easy installation and secure connectivity. Trust the 76170-5006 for your connectivity needs, meeting the highest standards of quality and performance.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|
 | Molex 172050-3064 | EdgeLine+ ESP Vertical Connector, 15 Gbps, 0.75mm Pitch, 1.57mm PCB Thickness, 40.0A Power Module, 64 Circuits, 2 Power Circuits |  |

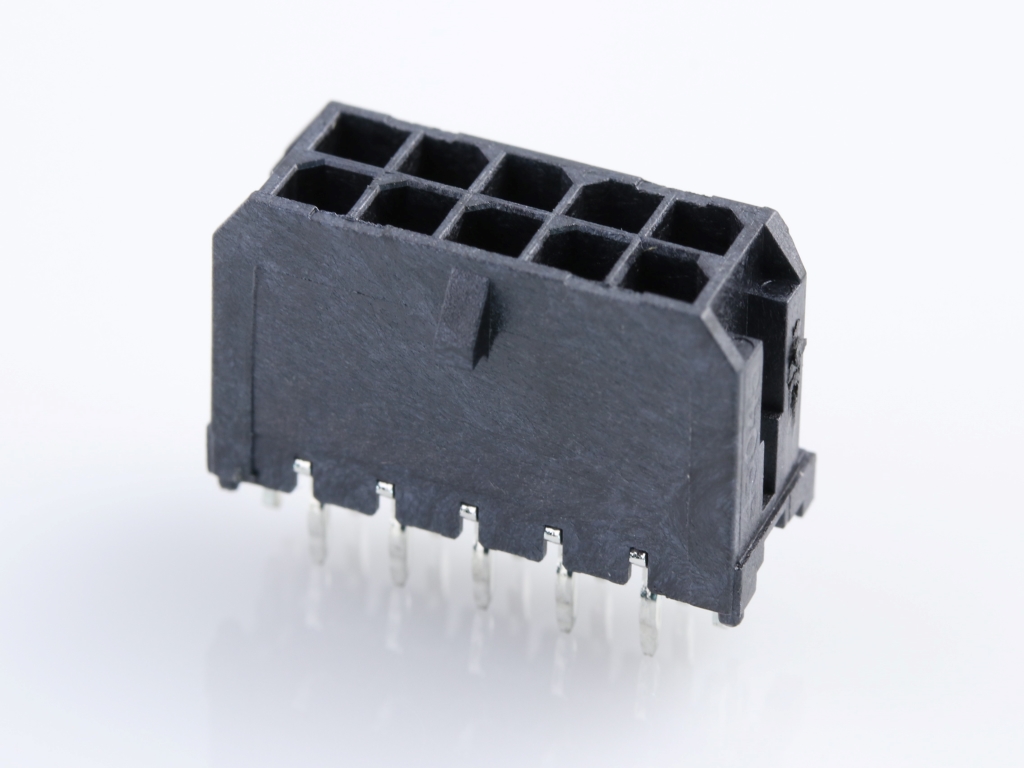

 | Molex 43045-1025 | Micro-Fit 3.0 Vertical Header, 3.00mm Pitch, Dual Row, 10 Circuits, with PCB Press-fit Metal Retention Clip, 0.38µm Gold Plating, Glow-Wire Capable, Black | |
