70553-0038

Heilind Number:	MOL70553-0038
Manufacturer:	Molex
Manufacturer Number:	70553-0038
Datasheet:	Product Specification
ECAD Model:

Description:

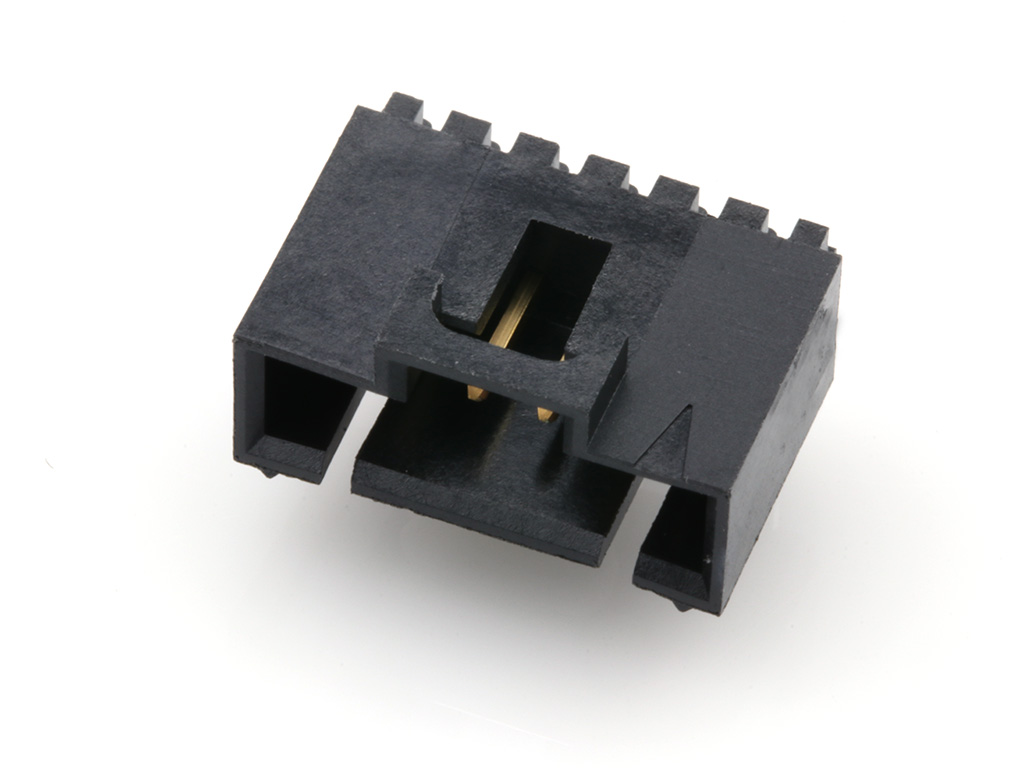

2.54mm Pitch SL Header, Low Profile, Single Row, Right Angle, 3.05mm Pocket, Shrouded, 4 Circuits, Tin (Sn) Plating

More >>

Specifications

Attribute	Value
Product Category:	PC Board Pin & Receptacle Connectors PCB Pin Headers
Manufacturer:	Molex
Manufacturer Part Number:	Molex 70553-0038
Color:	Black
Series:	70553
Amperage:	3 A
Connector Type:	SL
Number of Contacts:	4
Number of Rows:	1
Termination Method:	Through Hole
Contact Material:	Brass, Phosphor Bronze
Body Orientation:	Right Angle
Pitch:	2.54 mm
Voltage:	250 V
Material:	High Temperature Thermoplastic
Orientation:	Right Angle
Tail Length:	3.3 mm
Operating Temperature Range:	-40 - 105 °C
Contact Mating Area Plating:	Tin
Contact Mating Area Plating Thickness:	3.81 µm
Number of Contacts Loaded:	4
Mating Cycles:	25
PCB Locator:	No
PCB Retention:	Without
Contact Termination Plating Thickness:	3.81 µm
Polarized to Mate:	Yes
PCB Thickness (Recommended):	1.6 mm
Connector System:	Wire to Board
Contact Termination Plating:	Tin
Maximum Solder Process Temperature:	245 °C
Lead Free Process Capability:	WAVE
Duration at Max. Process Temperature (seconds):	003
Max. Cycles at Max. Process Temperature:	001
Glow Wire Capable:	No
Guide to Mating Part:	Yes
Lock to Mating Part:	Yes
Stackable:	No
Breakaway:	No
Shroud Type:	Fully
Product Name:	SL
Material Flammability Standard:	94V-0
Part Aliases:	0705530038
SKU:	MOL70553-0038

Detailed Description

The 70553-0038 is a high-performance PCB pin header connector designed for reliable wire-to-board and wire-to-wire connections. Featuring a durable black housing made of high-temperature thermoplastic, this connector is ideal for demanding applications. With a low amperage rating of 3A and a voltage capacity of 250V, it ensures safe and efficient power transmission. The right-angle body orientation and 4 gold-plated contacts allow for secure and space-saving installations. Tin-plated contact termination and through-hole mounting make for easy and reliable soldering. RoHS compliant and suitable for lead-free soldering processes, this connector is environmentally friendly. Perfect for use in a wide range of industries, the 70553-0038 is a versatile and dependable connectivity solution.
